Product Specifications
| Prod Model: |
Vaporizing System LCNG Vaporizing |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Working Temperature: |
-196 |
| Type: |
Fuel Dispenser |
| Certification: |
ISO9001: 2000 |
| Part: |
Lcng Vaporizing |
| Storage: |
LNG |
Product Description

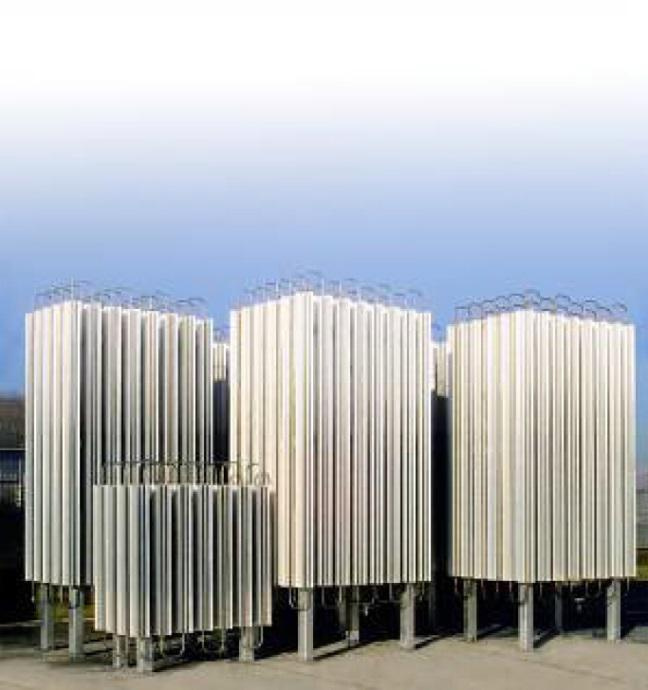

1). High pressure ambient vaporizer
High pressure ambient vaporizer is used to change LNG to CNG. All components on the equipment are cryogenic HP. They can work well in the -196ºC and 25.0MPa environment. LNG is the inlet medium, and CNG is the outlet one, the design pressure of which can reach 30MPa. The deference between the temperature of outlet and the ambient temperature is less than 10ºC.
2). Water Recuperator
The advantage of the water recuperator is that it does not need any intervention and operation after adding water and test for the first time. In its service life, it needs no maintenance. It can change the liquefied gas into complete gas and the pressure and temperature can be changed at the same time.
Characteristics:
(1) High efficiency electric heater has a long service life more than 18 months.
(2) With automatic dual electric control box, it is safe and can be used continuously.
(3) The high-quality cryogenic stainless steel pipe can provide the compact structure and a long service life.
(4) The process structure of the vaporizer has the characteristics of sturdiness durability and corrosion resistance.
(5) The floating valve can prevent the liquid from leaking through the pipeline.
(6) Safety relief valve can automatically discharge overpressure gas and then close.
(7) The secondary electronic temperature controller can automatically adjust the temperature from 60 to 70 degrees to make gas supply stable.
(8) Low water level cut-off device can make sure water will not be dried out.
Qingdao Luke Auto Gas Development Co., Ltd is a company established in 1997, located in the beautiful coastal city of Qingdao, as a China-Austria joint venture with the aim to protect our common environment. We are specializing in the manufacturing of Hydraulic piston CNG Compressors with big capacity, Automotive converting, Researching, Manufacturing, Installations and after-sale service for LNG refueling stations and CNG filling stations. At present, the company owns 10000 square meters manufacturing plant.
The company co-operates with foreign enterprises to develop the CNG gas stations and Skid-mounted LNG refueling station technology, suitable to the Chinese market. The products have obtained 14 national patents with advantages of lower costs, short time installation, usage of small area and high automatization.
Since the products have been launched to the market, they obtained warmly response from customers. Many filling stations have been installed all over the country, at present we maintain 10% market share in China.
After many years of development, we have rich experiences in production, installations and after- sale service in the industry. At present, we have build up four centers in China, such as Qingdao, Zhengzhou, Nanjing and Changchun city.
Based on high-quality products and excellent service, the company has good reputations and maintains close business relationship with famous domestic enterprises such as SINOPEC, PETRO China and CNOOC etc.
Our future development plan is to become a comprehensive group, committed to the new energy equipment design and manufacturing, professional installation, gas station management and international trade in natural gas fields.
LET'S WORK TOGETHER TO PROTECT OUR ENVIRONMENT!
