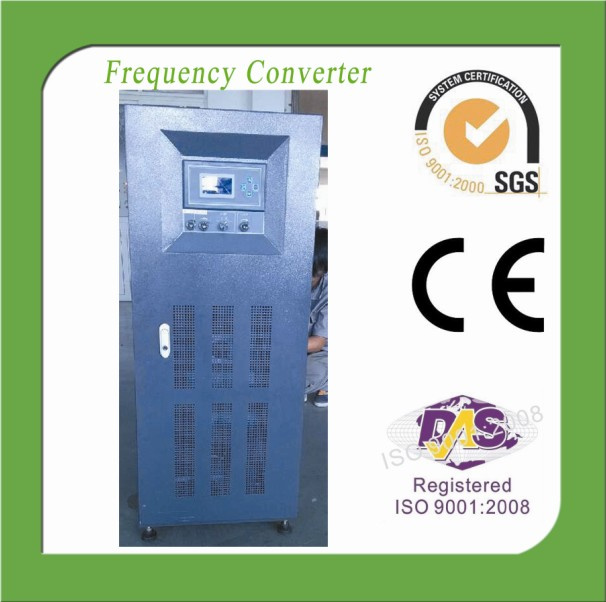

AC POWER SOURCE
Input voltage: +/-20%
Output voltage: 0-1000V, adjustable
Frequency: 5-2000Hz, adjustable
The primary reason for accurate frequency control is to allow the flow of alternating current power from multiple generators through the network to be controlled. The trend in system frequency is a measure of mismatch between demand and generation, and so is a necessary parameter for load control in interconnected systems.
Frequency of the system will vary as load and generation change. Increasing the mechanical input power to a synchronous generator will not greatly affect the system frequency but will produce more electric power from that unit. During a severe overload caused by tripping or failure of generators or transmission lines the power system frequency will decline, due to an imbalance of load versus generation. Loss of an interconnection, while exporting power (relative to system total generation) will cause system frequency to rise. Automatic generation control (AGC) is used to maintain scheduled frequency and interchange power flows. Control systems in power plants detect changes in the network-wide frequency and adjust mechanical power input to generators back to their target frequency. This counteracting usually takes a few tens of seconds due to the large rotating masses involved. Temporary frequency changes are an unavoidable consequence of changing demand. Exceptional or rapidly changing mains frequency is often a sign that an electricity distribution network is operating near its capacity limits, dramatic examples of which can sometimes be observed shortly before major outages.
Frequency protective relays on the power system network sense the decline of frequency and automatically initiate load shedding or tripping of interconnection lines, to preserve the operation of at least part of the network. Small frequency deviations (i. E. - 0.5 Hz on a 50 Hz or 60 Hz network) will result in automatic load shedding or other control actions to restore system frequency.
Smaller power systems, not extensively interconnected with many generators and loads, will not maintain frequency with the same degree of accuracy. Where system frequency is not tightly regulated during heavy load periods, the system operators may allow system frequency to rise during periods of light load, to maintain a daily average frequency of acceptable accuracy.
|
Model No. Explaination |
XSF-33005: 3 phase input 3 phase output 5KVA
XSF-11150: 1 phase input 1 phase output 150KVA
XSF-13050: 1 phase input 3 phase output 50KVA
XSF-31050: 3 phase input 1 phase output 50KVA |
|
Capacity |
Single phase horizontal type 500VA-2KVA
Single phase vertical type 3KVA-300KVA
Three phase vertical type 3KVA-800KVA |
|
Circuit Mode |
IGBT/SPWM mode |
|
Input |
Voltage |
Single phase: 220v ± 20% Three phase: 380v ± 20%
Product can be OEM as per your input voltage |
|
Frequency |
50/60HZ ± 5% |
|
Output |
Voltage |
Line voltage: 0-500V; Phase voltage: 0-300V
Adjustable and Max output voltage: 1000V
|
|
Frequency |
50H, 60HZ, 2F, 4F, 400HZ settled; 47-63HZ(Adjustable) Output frequency range: 10-2000HZ |
|
Frequency Stability |
≤0.01% |
|
Response time |
2ms |
|
Voltage Stability |
≤0.5%
|
|
THD |
≤1%
|
|
Input/Output Voltage System |
Single phase voltage input and Single phase voltage output
Three phase voltage input and Single phase voltage output
Single phase voltage input and Three phase voltage output
Three phase voltage input and Three phase voltage output
|
|
Output Display |
LED Digital Display of Voltage, Current, Frequency, Power |
|
Protector |
Over Voltage, Overload, Over Current,
Over-temperature, Short Circuit Protection, and Buzzer Warning.
|
|
Cooling Mode |
Mandatory Fan Cooling |
|
Working Environment |
Environment Temperature: 0~40 degree
Relative Humidity: 10~90% |
