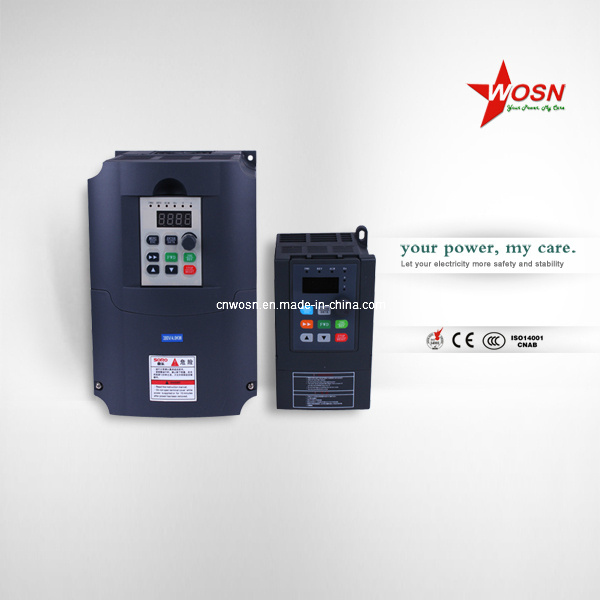

Product Specifications
| Prod Model: |
SV8-2S |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
142*85*122mm |
| Weight: |
0.8~1.1kgs |
| Input Voltage: |
220V,220V/ Single Phase |
| Output Voltage: |
220V |
| Output Frequency: |
0.00~400Hz |
| Output Current: |
3.0-10A |
| Warranty: |
Two Years |
| OEM: |
Accepted |
| Type: |
DC/AC Inverters |
| Phase: |
Single |
| Power Source: |
Electric Power |
| Output Power: |
0.75kw-500kw |
Product Description
Technical Indications
1. Control Mode: Vector control.
2. Output Frequency range: 0.00~400.00HZ
3. Operation command selection: Keyboard control, Terminal Control, Multi-stage control, External analog voltage input control. External analog current input control. RS485 control.
4. Frequency setting Mode: Digit keypad setting, Analog setting ( current, voltage signal ). Remote communication setting, Multi-step speed setting. Terminal assembled setting. PID closed-loop setting.
5. Start torque control: 0-20% can be adjusted.
6. Carrier frequency range: 1.0K~15KHz
Application
Mining machinery, printing machinery, drawing machine, textile, paper making, metallurgy, food, chemical, transmission, wire and cable, ceramic industry, building materials, packaging machinery, tobacco, and other sites and industries
Input Voltage (V)
|
Output Voltage(V)
|
Power Range(KW)
|
Single phase 220V ± 20%
|
Three phase 0~input voltage
|
0.75KW~2.2KW
|
Three phase 380V ± 20%
|
Three phase 0~input voltage
|
0.75KW-2.2KW
|
Overload capacity:150% 1 minute; 180% 1second;200% transient protect
|
