Shanghai DHH Screw Compressor Co., Ltd. >> Variable Frequency Screw Air Compressor 75HP

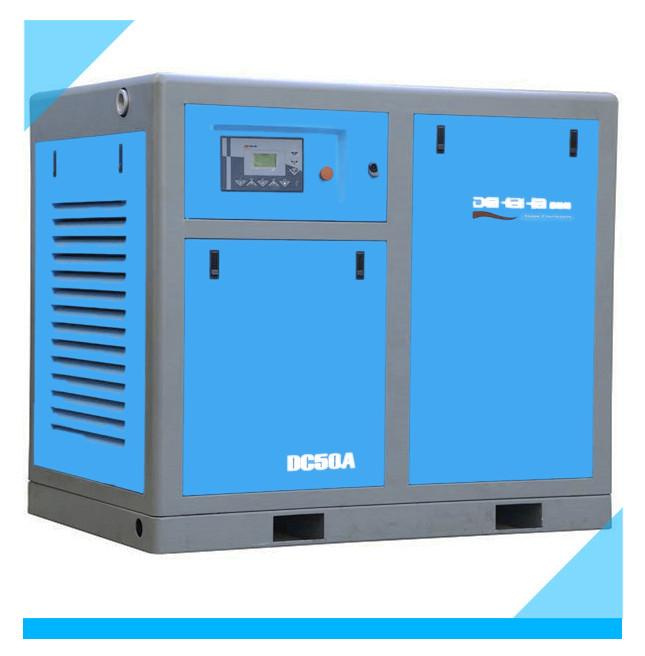

Variable Frequency Screw Air Compressor 75HP

Name: Variable Frequency Screw Air Compressor 75HP
Brand: china-manufacturer-directory.com
SKU: 679839565
Availability: InStock
Rating: 4.8 (24 reviews)

Supplier:	Shanghai DHH Screw Compressor Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	75hp
Markets:	North America,South America,Southeast Asia,Africa,Oceania,Mid East,Western Europe
Configuration:	Stationary
Power Source:	AC Power
Type:	Screw

Product Description

Belt driven variable frequency screw air compressor 75HP:
1. Reliable quality, competitive price
2. German Air end
3. Perfect service network
4. Easy to install, operate, maintent.
5. Low noise, Low engergy consumption, Low runing, Low maintenance cost.
6. Aptitude and intelligent Control, PLC control, LCD displayer.
7. Energy saving

Shanghai DHH Screw Air Compresso Factory, professional screw air compressor manufacturer.

DHH	Air flow Capacity(m 3 /min)/cfm									Power			Noise	Outlet Diameter			Dimension			Weight
MODEL	0.7Mpa			0.8Mpa		1.0Mpa		1.3Mpa			KW	HP	dB(A)		INCH			W× D× H mm		Kg
	m 3 /min	cfm		m 3 /min	cfm	m 3 /min	cfm	m 3 /min	cfm
DBF-7.5A	0.91		32.1	0.84	29.6	0.75	26.5	0.63	22.2		5.5	7.5	65			G3/4"			780× 680× 800	320
DBF-10A	1.3		45.9	1.2	42.4	1.0	35.3	0.84	29.6		7.5	10	65			G3/4"			780× 680× 800	350
DBF-15A	1.7		60	1.6	56.5	1.4	49.4	1.2	42.4		11	15	65			G3/4"			1100× 800× 980	430
DBF-20A	2.4		84.8	2.3	81.2	2.0	70.6	1.6	56.5		15	20	68			G3/4"			1100× 800× 980	460
DBF-25A	3.0		105.9	2.9	102.4	2.7	95.3	2.3	81.2		18.5	25	68			G1"			1250× 870× 1180	620
DBF-30A	3.7		130.7	3.6	127.1	3.2	113	2.8	98.9		22	30	68			G1"			1250× 870× 1180	680
DBF-40A	5.2		183.6	5.0	176.6	4.5	158.9	3.8	134.2		30	40	69			G1"			1250× 870× 1180	790
DBF-50A	6.5		229.5	6.2	219	5.6	197.8	4.9	173		37	50	69			G1 1/2"			1540× 950× 1290	920
DBF-60A	8.0		282.5	7.3	257.8	7.0	247.2	5.9	208.4		45	60	70			G1 1/2"			1540× 950× 1290	1050
DBF-75A/W	10.1		356.7	9.5	335.5	8.7	307.2	7.8	275.5		55	75	70			G2"			1600× 1150× 1420	1580

Shanghai DHH Screw Compressor Co., Ltd is high-tech enterprise, which specialized in the R&D and production and exporting of air compressor system equipment over 15 years experience.

---ISO 9001 and CE TUV certified
---Global competitive price and guaranty
---High quality integrated with Germany technology
---Customers over 20 countries in the world
---Supply OEM (customer's logo) for distributors

DHH always make superior quality screw air compressor because of adopting Germany advanced production technology and European famous brands machine parts for compressors.

Shanghai DHH screw compressor Co., Ltd has an experienced expert team, not only provide users with high-quality and high-efficiency compressed air system equipment, but also provide users with optimum air system solutions during before-sale, sale and after-sale services.

Our products are available in 40 countires covering Europe, America, Australia, Asia, Africa, Middle-East, and in countries such as USA, Canada, France, U. K., Germany, Italy, Spain, Poland, Russia, Ukraine, Australia, U. A. E, Saudi Arabia, Egypt, Thailand, Vietnam, Malaysia, Indonesia, India, Iran, South Africa, Colombia, Mexico, Argentina, Brasil, Chile, etc.

More information about us and our products, please visit our website.
