Product Specifications
| Prod Model: |
JVM16-63 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 10ka: |
VDE MCB |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
High-Speed Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Installation: |
Fixed |
| Structure: |
MCB |
| Poles Number: |
4 |
| Certification: |
CCC |
Product Description
Specifications:
Application scope:
Be applicable to circuit with rated voltage not exceeding 400V, rated frequency 50Hz and rated current not exceeding 63A. Protection and control of circuit against overload and short circuits in commercial and household installation.
Standard: GB10963 /IEC60898
Main technical parameters:

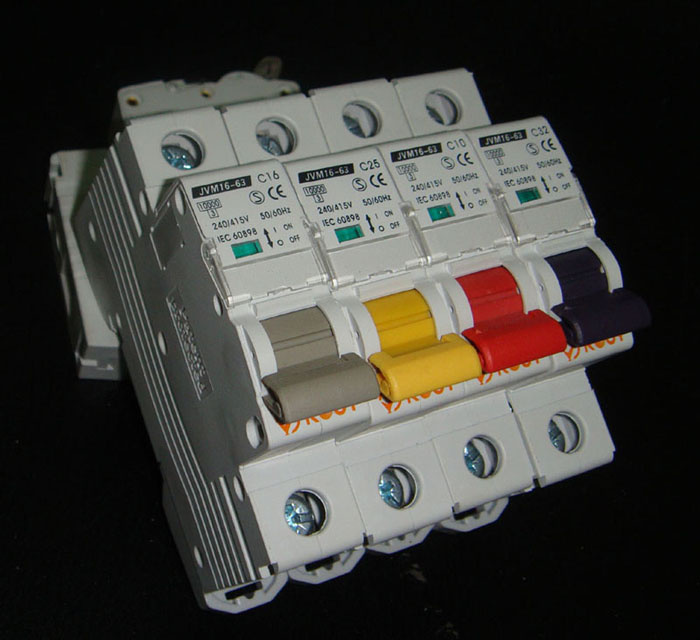

Type: JVM16-63 MCB
Number of poles: 1P, 1P+N, 2P, 3P, 3P+N, 4P
Rated Current(In): 1, 2, 3, 4, 6, 10, 16, 20, 25, 32, 40, 50, 63A
Rated Voltage(Un): AC 230V/400V
Rated frequency: 50(60)Hz
Curve: B, C, D
Short-circuit breaking capacity(Icn): 10000A
Magnetic releases operate: B curve: Between 3 and 5 In
C curve: Between 5 and 10 In
D curve: Between 10 and 20 In
Endurance > 4000
Terminal protection: IP20
KEMA,VDE,CE,CB,SEMKO Approved, Patent Protected
Shanghai Yongji Electrical Holding Co., Ltd., which specializes in manufacturing series of breakers, is a scientific enterprise integrating with scientific research, manufacture, processing and trading business. It has 1500 employees with an area of more than 68000 square meter.
The main products in our company are Miniature Circuit Breaker, Residual Current Circuit Breaker, isolator. It consists of 9 series of products with over 60 types. Our products apply into high end of market in the world. With the safe product certificate of EU-CE, Sweden S, Finland F1, Poland B, Argentina IRAM&CB and the certificate of China CCC, ISO9001 International Quality Management System, the qualification of products reaches advanced world level, and the quality is accepted by high end of market. Meanwhile, we have our own intellectual rights for breakers and leakage breakers and have advanced testing and assembly equipment and exquisite manufacture techniques.
It covers worldwide markets, among them European as a leading market with many customers from top 500 enterprises.
For any further information, please contact our sales manager MISS PHOENIX LIU, contact us today!
