Product Specifications
| Prod Model: |
ZF3021 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Vector Network Analyzer Instrument: |
for Colleges, Universities, Technical Schools |
| Package: |
Wooden Box |
| Delivery Time: |
30 Days |
| Warranty Time: |
1 Year |
| Type: |
Teaching Aids |
Product Description

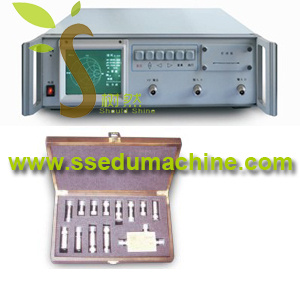

Vector Network Analyzer Instrument
TEST METHOD
Can do the full-span scan, List scan and Point-frequency scan.
TEST FUNCTION:
Can test the Transmission parameter (the amplitude-frequency characteristic, insertion loss, phase, the gain of amplifier, the gain of antenna, group delay, option for the antenna orientation chart measurement) and Reflection testing, time-domain fault orientation function.
TEST FORMAT:
Display as the logarithm amplitude and the amplitude phase at the same time. Reflection testing displays the logarithm display, standing wave ratio display, the Smith circular chart display.
DISPLAY OUTPUT: 5"CRT kinescope display.
RECORD DEVICE: Printer or U disc
Using Range And Relevant Capability
Suitable for radio, television, telecommunications, radar etc, feedback system's testing and hugher education college's RF microwave teaching experiment.
After selection can test the 50 Ω , 75Ω , 100Ω
Optional time-domain fault orientation function can check the fault location of coaxial cable in the feedback system. Testing range is: 0-1200m, orientation true. The resolution is about ± 3mm when the length about 10m, the resolution is ± 1cm when length about 30m.
Match the relevant testing accessory (impedance transformer, difference bridge erc) can test the transmission line's characteristicim pedance, insertion loss, time-lapse, phase shift etc. Specifications of the coaxial cable, wisted pair, coaxial connector and transmission line. It can also be used to detect the therefore cable's leakage and shield capability.
