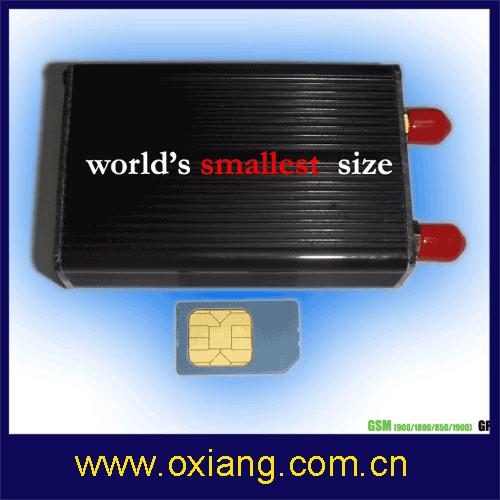

Vehicle GPS Tracker, GPS Vehicle Tracking Device

Product Specifications

Prod Model:	OX-ET-007B(CDMA & GSM)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Product Size:	66*45*19(mm)
Inner:	18*14*6.5cm
Out:	58*33*30cm
G. W:	0.63kg
Warranty:	One Year
Type:	GPS Tracker
Use:	Automotive&Hand Held
Brand:	OEM.ODM
Certification:	CE; RoHS; FCC

Product Description

It Is the world's smallest GPS Vehicle Tracker. With more easily installation and powerful function. It Support full range of frequency bands. Unimpeded around the world. Applicable to like mortgage vehicles, business vehicles, private vehicles etc. User can real time manage and control the vehicle by computer or mobile-phone.

@ Function List:

Master No. And Authorize No.:
Only authorized number of tracking device before they can locate and control. Absolutely guarantee the safety of vehicles. Automatically upload data like vehicle location data, hardware information (such as the ACC state, the state of the door, voltage of vehicle battery, driver time, etc. ). (Can be set by time or by distance upload data)
Remote Listen in:
External high sensitivity microphone. Users can monitor the car remotely via phone.
Remote Fuel control:
Tracking device with a vehicle-specific fuel control installation. When abnormal occur. User can control fuel of vehicle by computer or mobile phone. So that vehicle can not continue running.
SOS:
Tracking device with an emergency alarm button. Can be installed on the cover. When the event of an emergency.
Press the button will send alarm to monitoring Center and to authorize No.
OverSpeed Alarm:
Tracking device can detect vehicle's speed. If vehicle's speed exceed setting of device.
It will send the alarm to monitoring center and authorized No...
Towing Alarm:
Towing means a vehicle in the parking because of the movement caused by external forces(such as the police towing). Tracking device can detect that...
It will send the alarm to monitoring center and authorized No...
Parking Alarm:
User can set the maximum parking time. If a vehicle exceeds setting,
It will send the alarm to monitoring center and authorized No...
Tried Driver Alarm:
In order to the security needs of the driver, it can configured driver time. If the driver did not rest over time
It will send the alarm to monitoring center and authorized No...
Main power off alarm:
If the illegal removal of tracking device from vehicle
It will send the alarm to monitoring center and authorized No...
Anti-Steel Alarm:
In Armed state. If someone trespass
It will send the alarm to monitoring center and authorized No...(Can be compatible with the original car alarm system).
Low power alarm:
If vehicle battery voltage is too low.
It will send the alarm to monitoring center and authorized No...
GEO-Fence etc.

@ Particular Function:
Without computer, user can got detailed address from tracking device by mobile phone.
In the absence of GPS signal. Use GSM network positioning.

@ Custom Development:
Products can be customized according to your request and support solution of product include hardware and software.
Welcome you to contact us!
@ Specifications:
Size: 65mm*45mm*18mm
Weight: N. W0.14KG G. W. 0.59KG
Input/Output:
3x Input ACC/ SOS / Door Check/

1x Output Fuel Control

Microphone

Communication: GSM / GPRS (900/1800/850/1900)
Positioning accuracy: 5m~10m
Keyword: GPS Vehicle Tracker, GPS Tracking Device, GPS Car Alarm, Fleet tracker, AVL

System	Components	Application	Mode	Running cost
Solution I	Tracker, Cell phone	private cars	SMS
Solution II	Tracker, modem, pc, software	small groups about 50 vehciles	SMS
Solution III	Tracker, modem, pc, software	small groups about 50 vehciles	SMS/GPRS
Solution IV	Tracker, server, software	big group more than 1000, like TAXI, BUS	GPRS
Solution V	Tracker, server, software	large group, all kinds of vehciles	GPRS



	I	II(SA)	III(SB)	IV(CS)	V(BS)
System	Tracker cell phone	Tracker+PC+M ODEM	Tracker+PC+ MODEM	Tracker Internet server + client software	Tracker Internet sever
Application	signal car	group <50 vehicles	group 50 to 100 vehicles	group 500 to 5000	group 2000 to 8000
Locate	SMS feedback coordinate s and speed	Real-time on map	Real-time on map	Real-time on map	Real-time on map
Map	no	GOOGLE map/MAPINFO	GOOGLE map/MAPINF O	GOOGLE map	GOOGLE map/MAPINFO
Tracking	minutes	minutes	real-time	real-time	real-time
Remote control	cell phone	cell phone/pc	cell phone/pc	cell phone/pc	cell phone/pc
Data	SMS	SMS	SMS/GPRS	GPRS	GPRS
Listening in	Yes	Yes	Yes	Yes	Yes
Cut off	Yes	Yes	Yes	Yes	Yes
Anti-thief Alarm	Yes	Yes	Yes	Yes	Yes
SOS	Yes	Yes	Yes	Yes	Yes
Towing	Yes	Yes	Yes	Yes	Yes
Parking Time alert	Yes	Yes	Yes	Yes	Yes
Over speed	Yes	Yes	Yes	Yes	Yes
Power alarm	Yes	Yes	Yes	Yes	Yes
Empty /load	No	No	No	Yes	Yes
Management	No	Yes	Yes	Yes	Yes
Mileage	No	No	No	Yes	Yes
History Trace	No	No	No	Yes	Yes
GEO fence	No	No	No	Yes	Yes
