Product Specifications
| Prod Model: |
RD-venetian blind cutting machine |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Machine: |
Venetian Blind Cutting Machine |
| Min Slitting Width: |
89mm or Customized |
| Slitting Speed: |
18-30 M/Min |
| Work Pressure: |
0.3~0.5 Mpa |
| Voltage: |
380/220 VAC |
| Frequency: |
50/60Hz |
| Rated Power: |
9.0kw |
| Feature: |
Ultrasonic Slit Big Fabric Into Narrow Strip |
| Available Products: |
Non-Woven Fabric, Textiline Fabrics, Roller Blinds |
| Production Time: |
20 Days-Venetian Blind Cutting Machine |
| Certification: |
RoHS |
| Condition: |
New |
Product Description

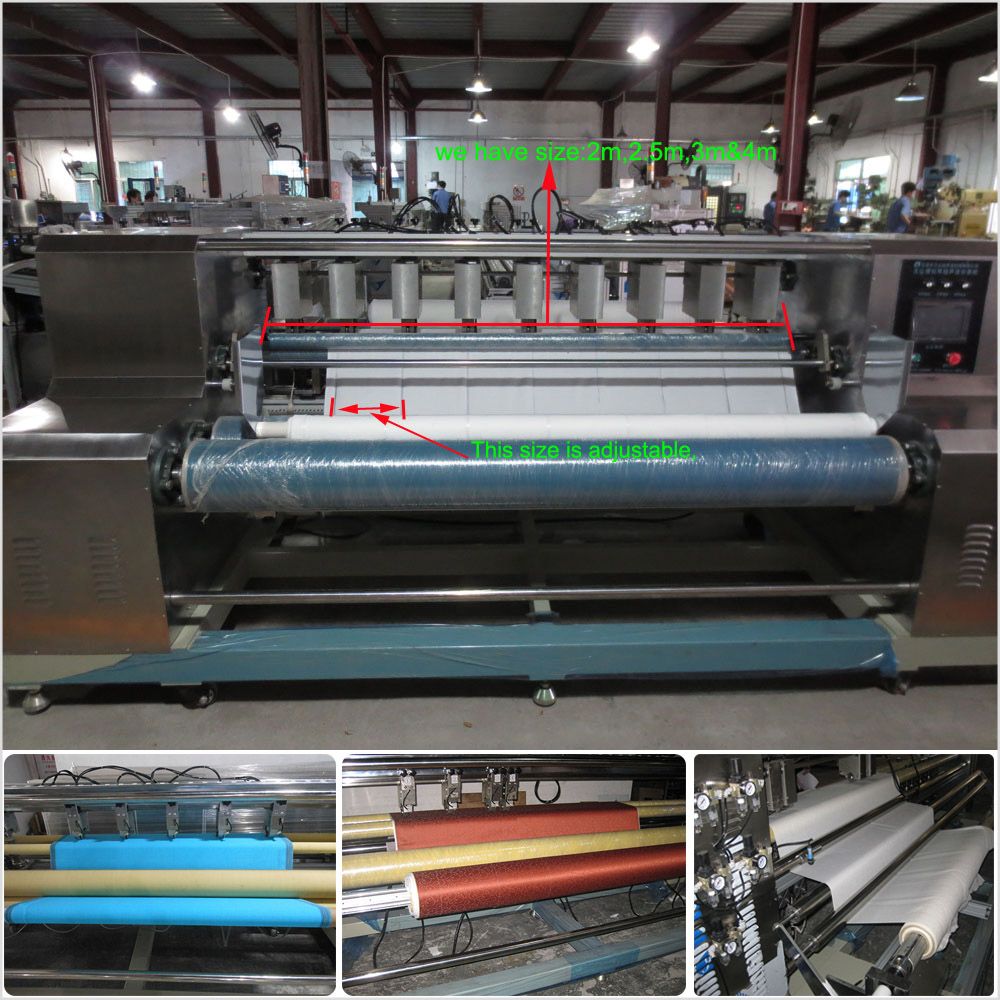

Venetian Blind Cutting Machine:
>Function:
Elevator Fabrics, Textiline Fabrics Slitting Machine, ultrasonic vertical blinds slitting machine; Ultrasonic blinds curtain slitting machine; Ultrasonic non-woven fabric slitting machine; Terylene drapery slitting machine;
Roller blinds slitting machine; Roller shades slitting machine;
Ultrasonic curtain fabric slitting machine; Blinds slitting machine;
Ultrasonic fabric slitting machine without any fray and burn edge;
Slitting machine for fabrics; Foamex ultrasonic slitting machine;
Screen-touching ultrasonic slitter for fabrics; Clean cloth ultrasonic slitting machine; Special non-dust fabric slitting machine; Non-dust slitting machine with ultrasonic;
Cleanroom wiper slitting machine with ultrasonic; Ultrasonic special fabric slitting machine; Projector screen slitting machine; Textiline Fabrics Slitting Machine.
Key Features:
> Ultrasonic slitting fabric without any fray or burn edge
> Min slitting width: 45mm or by customized
> Slitting speed: 18-30 m/min
> Work pressure: 0.3~0.5Mpa
> Power: 380/220 VAC 50/60Hz
> Rated power: 9.0KW
> Standard offering 6 blade heads
> blades heads removable in horizontal position
> Auto. Feeding and rewinding fabric roll
> Max fabric roller diamater: 400mm or by customised
> Slitting tension control air shaft control for tight large rolls
> Edge correction system keep fabric in straight line
> Standard rolling shaft diameters with 75mm
> Three model size: 2000mm, 2500mm, 3000mm or by customised
> Application products: Elevator Fabrics, Textiline Fabrics, roller blinds, curatins, vertical blinds, non-woven fabric etc.
> Keep tight, smooth, Ultrasonic cutted fabric edge without any fray and burn:
> We attend(R+T):
Shanghai R+T in China every year in March
Guangzhou R+T in China every year in August
Machines have been exported to:
Iraq, Dubai, Kuwait, Kazakhstan, Poland, England, Australia, New Zealand, Belgium, Belarus, Russia, Spain, Canada, America, Mexico, Columbia, Chile, Brazil, Argentina, South Africa, Indonesia, Turkey, Bulgaria, Malaysia, Singapore, Taiwan, Hong Kong etc.
Prompt & Good After-sale Service:
1> The machines are well assembled and adjusted only connect power and pressure it begins to work.
2> All the machines enjoy 1 year warranty, We are supply the parts on free except non-normal damage within this period.
3> Over of the Free warranty period, the user should pay the cost of replacement parts or labor service on site.
4> User-friendly English manual for machine using and maintaining.
5> Professional after sale department will service for you, we offer technical support as longer as customer need.
Please don't hesitate to contact us, we will recommend the most suitable machines according to your fabrics and we assure to give you the best offer.
|
Model No.: FTJ |
Min slitting width: 89mm ..or design by customize |
Slitting speed: 18-30 m/min |
|
Power: 380/220VAC 50/60Hz |
Rated power: 9.0KW |
Work pressure: 0.3~0.5 Mpa |
|
Machine width size : 2.0m |
Machine width size : 2.5m |
Machine width size : 3.0m |
|
Dimension(L*W*H):3130*1700*1300mm |
Dimension(L*W*H):3630*1700*1300mm |
Dimension(L*W*H):4030*1700*1300mm |
|
Packing: 3560*1800*1430mm |
Packing: 3930*1800*1430mm |
Packing: 4330*1800*1430mm |
|
CBM : 9.163 |
CBM 10.115 |
CBM 11.145 |
|
N.W.: 1420kg |
N.W.: 1600kg |
N.W.: 1800kg |
|
G.W.: 1520kg |
G.W.: 1700kg |
G.W.: 1900kg |
