Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1380*1380*450mm: |
Cooling The Inside Air |
| Type: |
Window Mounted Air Conditioners |
| Capacity: |
9000-12000 BTU |
| Usage: |
Room |
| Indoor Machine Noise: |
<23dB |
| China Energy Efficiency Standard: |
Level 1 |
| Cooling/Heating: |
Cooling Only |
| Power Source: |
Electrical |
| Power Type: |
DC |
| Condition: |
New |
Product Description

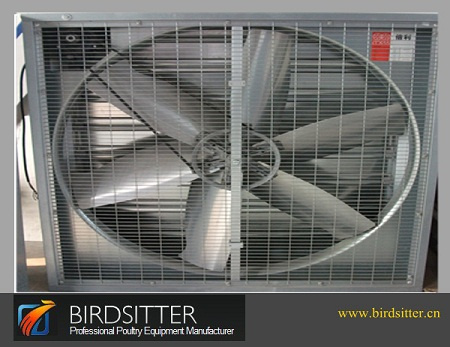

Ventilation system
Ventilation system has three parts including the large fan, the small fan and the
air inlet and each has its own function of hypothermia.
The fan is focus on blowing the inside air outlet so as to the flesh and cooling air
can enter into the poultry house from the air inlet and the cooling pad.
The air inlet is adopted the engineering- plastics materials, having the
characteristics of anti-UV, anti-aging and durable. The polystyrene insulation
material of board ensure that the inlet has a good warm- keeping effects.
The specification of air inlet is adopted the dimension as 600* 330 *170mm,
the protective net is designed reasonably to prevent the birds and insects. The
pulley on air inlet is used the patent design with rolling friction lower resistance
and easily switch on and close. Spring is adopted the stainless steel of high
quality to ensure its anti-corrosion and robustness
we have two kinds of fans: cone fans and box fans in two models of 50 and 36.
| Specification(box fan) | 1380*1380*450mm |
| Power | (3ph.50HZ)1.1KW |
| Exhaust air rate | 43940m3 / h |
| Framework | Galvanized sheet(thickness of zinc: 275g/m3 ) |
| Blade | The aeronautical aluminum alloy imported from Italy(diameter: 1270mm) |
| Window- shades | Hot dip galvanized blade |
| Belt pulley | V belt pulley made by the high strength, light Al-Mg alloy material. |
| Leather belt | Import from Japan |
| Motor | the American laoyitie motor(saving electrics and providing large and stable power) |
Merits: 1. The galvanized sheet ensure that the fan has the characteristics of anti-corrosion,durability and
long life span.
2. The motor adopted by American Layitie can offer stable power dor fan and save electric
3. the theaeronautical aluminium alloy fan blade gives an assurance to its light weight ,electric
saving and large blow weight.
Jinan Mingxiao Mechanical EquipmentCo, . Ltd, located in jinan city, the world famous spring city of Shandong province China, is a professional company in livestock equipmant research and development. Our main products include: Pan feeding system, nipplae drinking system, high spray pressure system, poultry house environment control system, cooling pad sysetem and the cage of breeders, laying hens, and broliers etc.
Mingxiao work on product development, manufacturing, sales, installation and service as a whole. Products are with a high degree of automatic, adaptable, easy operation, long using life and other characteristics that help improve the economic efficiency. Therefore, our company is your best choice for large-scale farming.
Our compang has passed ISO9000 Quality Assurance System Certification, to produce first- class products and build the highest and best projects as the goal.
Our company works towars systematical, intelligent and international development direction, and has independent import and export rights, our product has exported to the United States, Canada, Chile, Venezuela, Ecuador, Spain, Irelad, Ukraine, Tunisia, Egypt, South Africa, Saudi Arabia, Pakistan, the Philippines and the other countries and regions all around the world.
Give us a chance, we will give you a best future.
