Product Specifications
| Prod Model: |
KP-GW70V |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
Description:

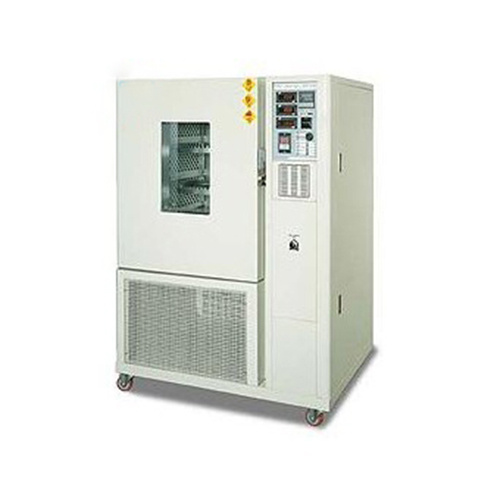

This chamber is design and manufactured accord to the requirements of IEC 60884, IEC60598 and relevant standards. It is use to simulate a high temperature environment to test the ability of material to withstand thermo-mechanical stress. This machine can be wide used in many industries such as Electrical Appliances, Electrical wire accessories, luminaries, motors, connectors, etc.
This machine has the advantages of easy operate, fast heating, high precision, temperature be even and stable.
Specifications:
| Model | KP-GW70V | KP-GW120V | KP-GW225V | KP-GW430V |
| Volume(mm) | 400*350*500 | 450*550*500 | 500*600*750 | 600*550*1300 |
| Dimension(mm) | 600*550*755 | 600*710*845 | 650*755*1045 | 745*750*1670 |
| Temperature | RT+10~300ºC |
| Resolution | ±0.1ºC |
| Volatility | ±0.5ºC |
| Evenness | ±2.5% |
| Power | 1050W | 1500W | 2100W | 4000W |
| Power supply | Single phase 220VAC 50Hz |
Configuration:
Forced convection: compressor
Insulation material: Superfine temperature resistant glass fiber cotton
Shell: electrostatic powder coating 1.5mm cold rolled steel
Liner: 1.2mm mirror stainless steel plate
Heater: nickel chromium alloy electric heater
Sensor: A grade PT100 platinum resistance
Controller: "AISET" intelligent digital temperature control instrument
Direct input, monitor, and control temperature
Over temperature protection and alarm
Heating, alarm, time fuzzy control
Protection: leakage protection, water protection, over temperature protection, fast fuse, compressor overvoltage protection
Viewing window: hollow glass window
Sample shelf: 2 shelves
