Product Specifications
| Prod Model: |
VL-50 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Vl-50 |
| Conveying Capcity: |
40 |
| Storage Hopper Capacity (L): |
0.5 |
| Air Capacity (L/Hr): |
29000 |
| Maximum Transmission Distance (M): |
6 |
| Feeding Pipe (Inch): |
1.25 |
| Suction Tube Length (mm): |
900 |
| Dimensions (H*W*D/mm): |
380*145*150 |
| N.W. (Kg): |
4.5 |
Product Description

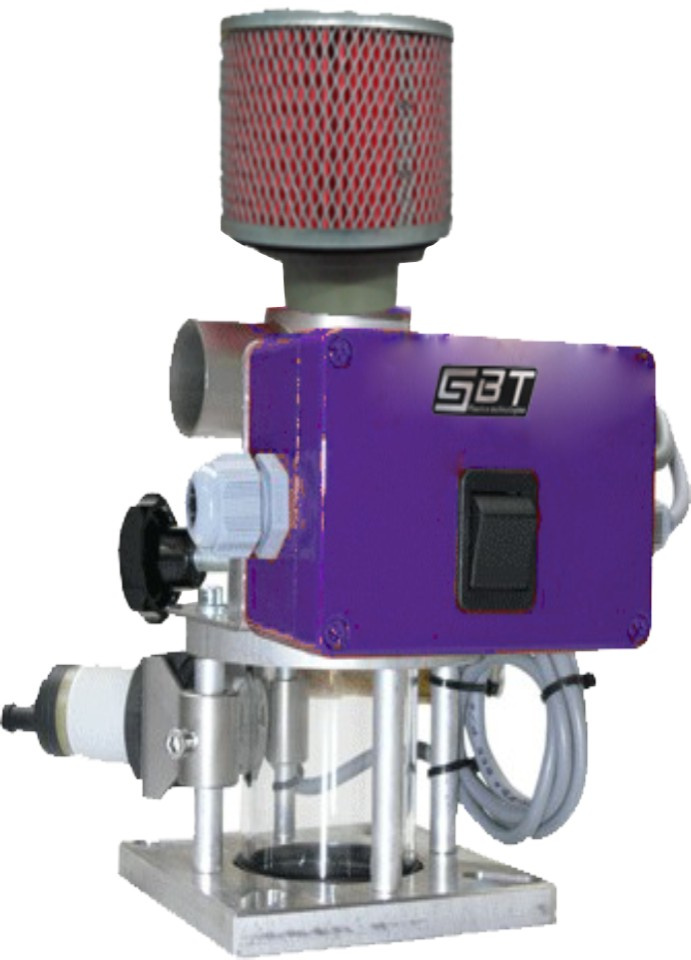

VL Series
VENTURI LOADERS
Features:
1)The European design, compact structure,light wight.
2)Stainless steal material hopper and base, make sure material from ollution.
3)The exhaust fan and a fliter,to ensure the work environment is not polluted.
4)Adopt high-pressure air transport raw materials, low noise.
5)Adopt glass tube with with electrical static sensor ,can accurately detect the raw material conveying.
6)Filtration control combination, filter the air moisture, also could ensure the stable air pressure.
7)Easy installation, simple operation, the polishing processing.
8)The transformation of raw material, the hopper easy assembly and disassembly, convenient cleaning.
9)the hopper and the base can be adjusted in any direction.
Speicification:
| Model | VL-50 | VL-100 | VL-120 |
| Conveying capcity | 40 | 60 | 80 |
| Storage hopper capacity (L) | 0.5 | 2.8 | 3 |
| Air capacity (L/hr) | 29000 | 43500 | 58000 |
| Maximum transmission distance (m) | 6 |
| Feeding pipe (inch) | 1.25 |
| Suction tube length (mm) | 900 |
| Dimensions (H*W*D/mm) | 380*145*150 | 720*165*160 | 630*240*280 |
| N.W. (kg) | 4.5 | 7 | 7.5 |
Note:
1) Within the barrel to do polishing, after filling type "P"
2) Conveying ability test conditions: packing density of about 0.8kg/L, diameter 3-5mm plastic raw material particles, with vertical height of 2m, Xiaoping 1m for the test standard income distance.
3) The machine voltage specifications: single phase ( 1Φ), 230VAC,50Hz..
