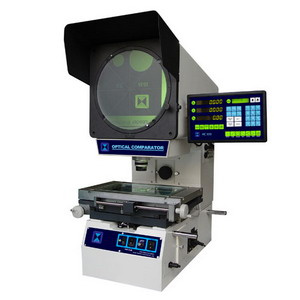

Vertical Benchtop Optical Comparator (VOE-2010)
Price: |
US $ 4000-5000/Piece |
Trade Terms: |
FOB,CIF,EXW |
Min Order: |
1/Piece |
Pay Type: |
T/T,Western Union |
Optical Comparator:
1. Full erect: Not be affected by upside down and division in the left and right
2. High precision: (3+L/75) μ M is comparable to the accuracy of the foreign similar products
3. Large travel: 250*150*100(for the focus)
4. Large load: The accuracy remains stationery under the press of 50 kg
5. Projector head: Adjust the focus by ascending and descending
6. Edge detector: Automatically aim and gather data.
Reverse | VOE-1510O | VOE-2010O | VOE-2515O |
Obverse | VOE-1510 | VOE-2010 | VOE-2515 |
Metal table' s size(mm) | 357*228 | 404*228 | 450*280 |
Glass table' s size(mm) | 210*160 | 260*160 | 306*196 |
Stage Travel X-axis | 150mm | 200mm | 250mm |
Stage Travel Y-axis | 100mm | 100mm | 150mm |
Stage Travel Z-axis | 100mm(for focus) | 100mm(for focus) | 100mm(for focus) |
Accuracy | ≤ ± (3+L/75)µ m | ≤ ± (3+L/75)µ m | ≤ ± (3+L/75)µ m |
Screen | Screen Diameter: Diameter 312mmwith 4 film clips |
Screen rotary range: 0° -360° |
Rotary angle resolution: 1' or 0.01° |
Digital Readout | MC800 Counter with RS232 output (can be used to gather the data and measure the point, line, circle, angle and distance). |
Illumination | Transmission and reflection: 24V/150w-halogen lamp. |
Power | AC110-120v, 200-240v, single phase 50/60Hz Total power 400W |
Cooling | Fans |
G. W/N. W | 220/170KG | 225/175KG | 230/180KG |
Dimension(L*W*H mm) | 780*910*1120 | 780*810*1120 | 780*810*1120 |
Digital Readout MC800 | VOC-10X Objective | Screen Clamp |
Foot-Switch | Power Cable | Light source |
Measuring Software | Edge Detector | Charts (3 kinds) |
VOL-20X Objective | VOL-50X Objective | VOL-100X Objective |
Holder Clamp | V-shape Clamp | swivel center support |
Mini-printer | Rotary table | Calibration Scale |
Prod Model: |
VOE-2010 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Name: |
Vertical Benchtop Optical Comparator |
Model: |
Voe-2010 |
Metal Table' S Size(Mm): |
404*228 |
Glass Table' S Size(Mm): |
260*160 |
Stage Travel X-Axis: |
200mm |
Stage Travel Y-Axis: |
100mm |
Stage Travel Z-Axis: |
100mm(for Focus) |
Cooling: |
Fans |
G. W/N. W: |
225/175kg |
Dimension(L*W*H Mm): |
780*810*1120 |
