Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Mining Object: |
Stone & Rock Crusher |
| Type: |
Crushing Equipment |
Product Description
I. Usage and Application 1. ISO9001: 2008; 2. Low cost; 3. Various models 4. Perfect after-sale service; 5. New technology, 6. Fast delivery

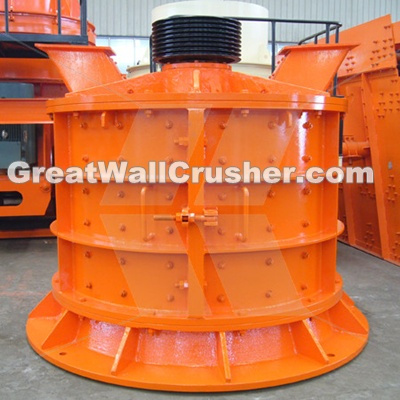

Vertical Compound Crusher is fine crushing equipment that crushes materials in middle hardness, such as rocks and mines with pressure strength less than 210MPa and humidity less than 5%. e. g. Limestone, dolomite, cement clinker, iron ore, molybdenum ore, aluminum, cobble, rock phosphorite, copper ore, burned magnesite, serpentine, calces, gypsum, lump coal, zeolite, sandstone and so on. It is widely used in the industry of mining, metallurgy, building materials, fireproof materials, cement, coal, glass, chemical industry, electricity power and so on.
II. Working Principle
The motor drives the rotor that fixed on the main bearing to run quickly toward certain direction when the machine works. The materials are fallen into the throw-up disc and impacted by the high speed strips of the throw-up disc, and then strikes with the impact board under the effect of Centrifugal Force.
Because the impact board is bevel and the gravitation, the materials are threw to the taper crushing room and impacted by the high-rotating up hammerhead. After gaining sufficient energy, the materials are thrown to the impact board again and action repeats. The materials strike with each other in the crushing room and then are down to the column-shape rotor room. Then crushed, pressed, and ground and action repeats. In this way, the materials go through up, middle, and down rotor crushing rooms and crushed, pressed, and ground by the hammers and the impact boards, and finally the materials are gradually crushed into needed sizes and come out.
III. Features
The machine has special structure in the part of throw-up disc, which can improve the usage of abrasive material and reduce the cost. The wearing parts are made of anti-abrasion material (metal alloy in high hardness and toughness), so it can endure for long time. It has the advantage of high crushing ratio, large output, high efficiency, and low consumption. It is of easy operation, good performance, low noise, little vibration and good airproofing, so it is a high efficient and high level fine crushing equipment.
Model |
Inside Diameter of Roller
(mm) |
Feeding Size
(mm) |
Output Size
(mm) |
Capacity
(t/h) |
Motor
Power
(kw) |
Weight
(t) |
Overall Dimension
(mm) |
|
PFL-750III |
750 |
< 100 |
< 5, 90% |
8-20 |
45 |
4 |
2370× 1100× 1300 |
|
PFL-1000III |
1000 |
< 120 |
< 5, 90% |
15-30 |
55 |
5.5 |
2680× 1500× 1400 |
|
PFL-1250III |
1250 |
< 150 |
< 5, 90% |
30-45 |
90 |
8.2 |
2970× 1900× 1900 |
|
PFL-1500III |
1500 |
< 180 |
< 5, 90% |
50-70 |
132 |
13.7 |
3400× 2200× 2100 |
|
PFL-1750III |
1750 |
< 200 |
< 5, 90% |
70-100 |
160 |
17.5 |
3800× 2360× 2200 |
|
PFL-2000III |
2000 |
< 220 |
< 5, 90% |
100-120 |
185 |
23 |
4590× 2680× 2300 |
With more than 20 years' history, Zhengzhou Great Wall Heavy Industry Machinery Co., Ltd. is a top manufacturer specializing in R&D, designing manufacturing and selling. Since establishment, we make a good image in the market with scientific management, high quality products and perfect service.
We mainly deal in series of mining and quarry plants (including vibrating feeders, belt conveyors, crushers, screens and sand washing machines), industrial mills and block forming machines(without baking) and so on. Our products are not only sold very well in more than twenty provinces and cities of China, but also in more than thirty countries and regions of Eastern Europe, Middle East, Middle-Asia, South Asia, Southeast Asia, Africa and south America.
Now we own domestic top-ranking production equipments and precise testing instruments. Each process of production is strictly inspected to guarantee the perfect pre-sale quality; We have many technical experts in domestic crushing, screening and industrial mill fileds, and possess powerful ability in developing new products. In addition, our company keeps cooperation with many famous universities and scientific and researching institutions to develope, upgrade and improve our products with strict ISO9001: 2000 quality management systems.
Talent guarantees the quality. Our company takes in talents and gives special trainings to staffs annually to improve their comprehensive skills, so that they can meet the development of company.
In order to meet the demands of clients and markets, we have established offices in more than ten important provinces of China, including Beijing, Guangdong, Shanxi, Jiangxi, Shandong, Yunnan, Guizhou etc., so it is quite convenient to contact us and to solve the clients' problems quickly.
With the import and export rights, the company has established its international trading department with a high responsible and professionl sales team to deal with overseas business for full 24 hours.
Over the past years and in the future, we have been and will be sticking to Great Wall Spirit as honest, truth-seeking, innovative and hard-working. With our Great Wall Brand, we will constantly improve ourselves and try our best to provide perfect products and best services to our clients.
