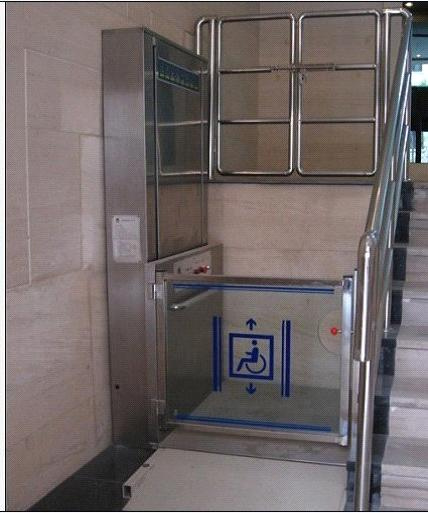

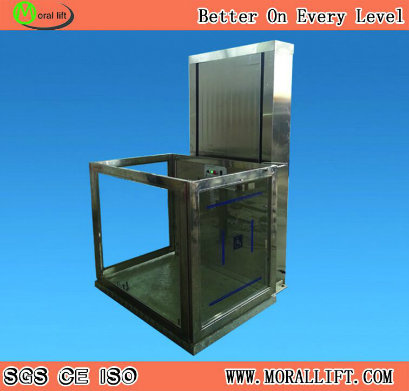

Vertical Disabled Elevator

Product Specifications

Prod Model:	SJD
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Platform Size:	1200*900mm
Lifting Height:	Max 6m
Drive:	Hydraulic/Screw
Load Capacity:	300kg
Materials:	Non-Skid Diamond Aluminum Platform
Controls:	Buttons or Remote Control
Driving Type:	Hydraulic
Capacity:	300kg
Persons:	One Person
Speed:	100mm/S

Product Description

1. Vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.

2. It can be directly installed into the ground without architectural supporting pits and easy to operate.

3. Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.

4. Emergency Descending: When there is no power or malfunctions, manually descend the device
5. It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.

6. This machine max. Lifting height is 6000mm

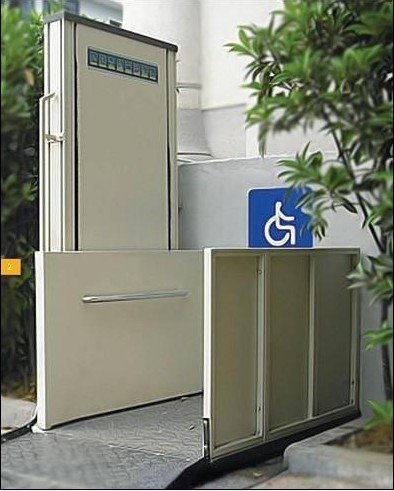

If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators

Platform size	1 30 0mm(L)* 9 00 mm(W)  or    customized
Max Platform Height	6000mm
Min Platform height	80mm
Speed	60mm/s
Load capacity	250KG~350KG
Control voltage	24V/DC
Power Output	1. 5 KW
Power Input	220V/50HZ/25A (or customized for local power supply)
Drive System	Hydraulic  or screw
Control Mode	Inching Switch or Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Checkered slip-proof aluminum alloy
Painting	Plastic electrostatic spraying
Guard panel & drive cabinet (framework)	Aluminum Alloy / 304 stainless steel
Operation Panel	Polished aluminum Alloy
Working Condition	Both indoors and outdoors
Working temperature	From - 5 0 ° ~60 ° C
Installation	Non-pit installation, directly fixed to concrete floor (the concrete floor below the platform shall not be lower than the ground)
Emergency Stop	The lifting and lowering process can be stopped immediately by pressing the emergency button.
Safety device	Safety Interlock	Lock the platform when it is out of control
	Safety Sensor	The operation must be stopped immediately the safety edge meets obstacles during operation.
	Emergency lowering	The platform can be lowered by opening hydraulic valve manually or rolling screw rod.
	Auto-flap	Turn up after lifting
