Vertical Paper Baling Machine with Hydraulic Cylinder Vm-3
| Price: |
US $ 5834-6168set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1set |
| Pay Type: |
L/C,T/T,Money Gram,Western Union |
Welcome worldwide capable agent join Hellobaler team!

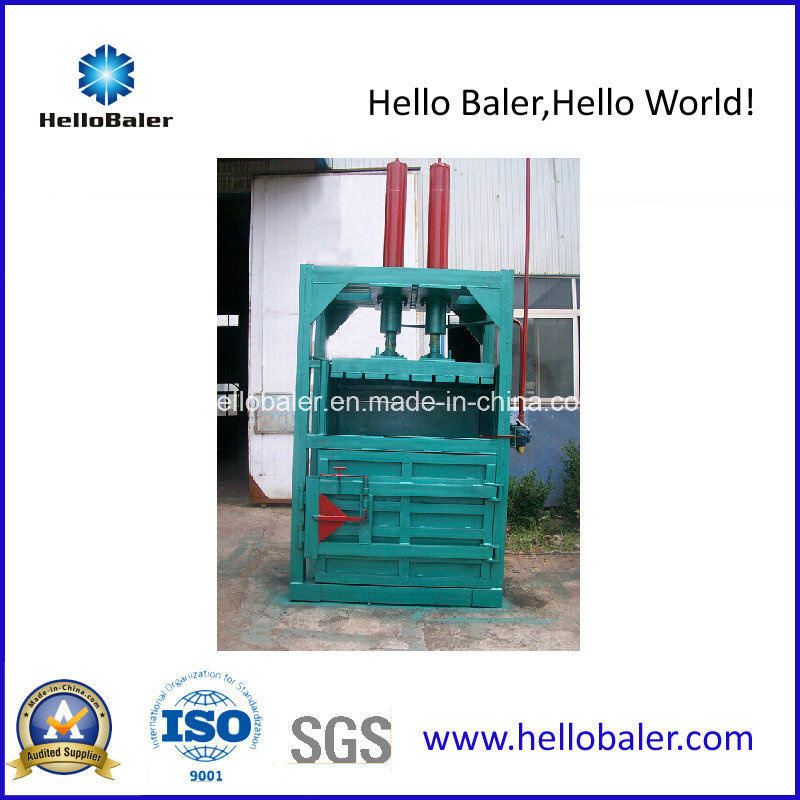

Hydraulic vertical Balers(VM Series)
Description:
The capacity of our vertical Balers is from 0.2t/h to 1t/h. VM series are designed with space in mind, the small body is easy to find a good place in your facility.
Application:
Our VM Series is wildly uesd in Recycling Centers, Distribution Centers, Shopping Centers, Department Stores,Warehouses,Supermarkets , Hotels, Retailers, Hospitals,etc.
Product Instruction:
We provide 3 models vertical baler machine,the pressing from 10T~60T with hydraulic cylinder, it can bale paper,plastic,bottles,waste,etc.
Features: - All the machine adopts hydraulic drive, it's easy to operate with button;
- Open three movable gates after package is baled, with the bag rope bringing out bag, thus the bale is finished;
- Using the up side oil cylinder, easy installation, easy maintenance, no foundation, packaged with high efficiency;
- Press force from 10 tons to 60 tons, have more than one level for the user to choose from;
- The size of the compression room and bale can be customized according to customer requirements;
- Pushing connection between cylinder and pushing head adopts spherical structure, good reliability, long service life of oil seal;
- Hydraulic circuit design, low noise, high efficiency and low failure;
- Practical models, it is suitable for small and medium-sized enterprise waste compression packaging;
- One independent baling machine, no need of ancillary equipment;
- Heavy duty welded by Q235 steel plate, which is durable and has good stability, elegant appearance, convenient operation and maintenance, safety and energy saving.
- Special Antirust paint protects the metal surface from the air, the rain water and other chemical or electrochemical corrosion.
The baler machine we export to South Africa in March,2014.
Our company:

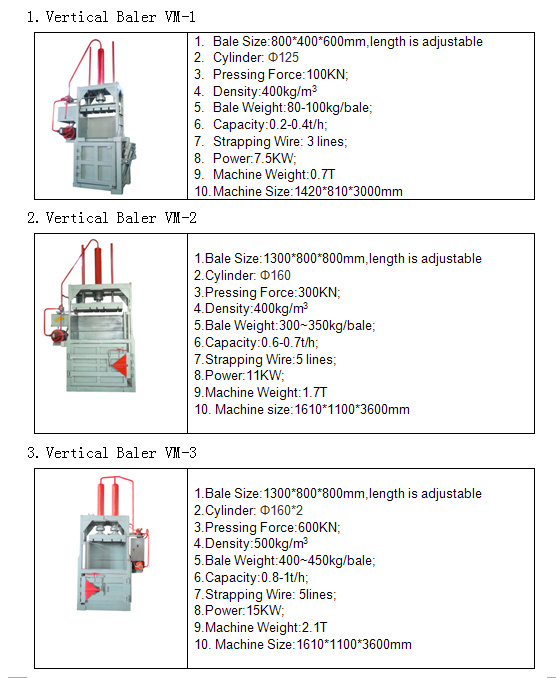

Welcome to visit our website, we offer 7*24 hours service,if you have any question,please feel free to contact me, for more information of machine, pls inquiry me,I will reply your message within 24 hours.| Model |
| VM-1 | VM-2 | VM-3 |
| Bale size | mm | 800*400*600
Length is adjustable | 1300*800*800
Length is adjustable | 1300*800*800
Length is adjustable |
| Cylinder |
| Φ125 | Φ160 | Φ160×2 |
| Pressing Force | KN | 100 | 300 | 600 |
| Density | kg/m 3 | 400 | 400 | 450 |
| Bale Weight | kg/bale | 80-100 | 300±50 | 400±50 |
| Capacity | t/h | 0.2-0.4 | 0.6-0.7 | 0.8-1 |
| Wire | line | 3 | 5 | 5 |
| Power | KW | 7.5 | 11 | 15 |
| Machine Weight | T | 0.7 | 1.7 | 2.1 |
| Materials |
| Waste textile, Paper, Cardboard, Plastic etc |
|
|
| Prod Model: |
VM-3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bale Size: |
1300*800*800mm |
| Pressing Force: |
600kn |
| Bale Weight: |
400kg/Bale |
| Strapping Wire: |
5 Lines |
| Density: |
500 |
| Capacity: |
0.8-1t/H |
| Power: |
15kw |
| Machine Weight: |
2.1t |
| Materials: |
Waste Textile, Paper, Cardboard |
| Cylinder: |
D160*2 |

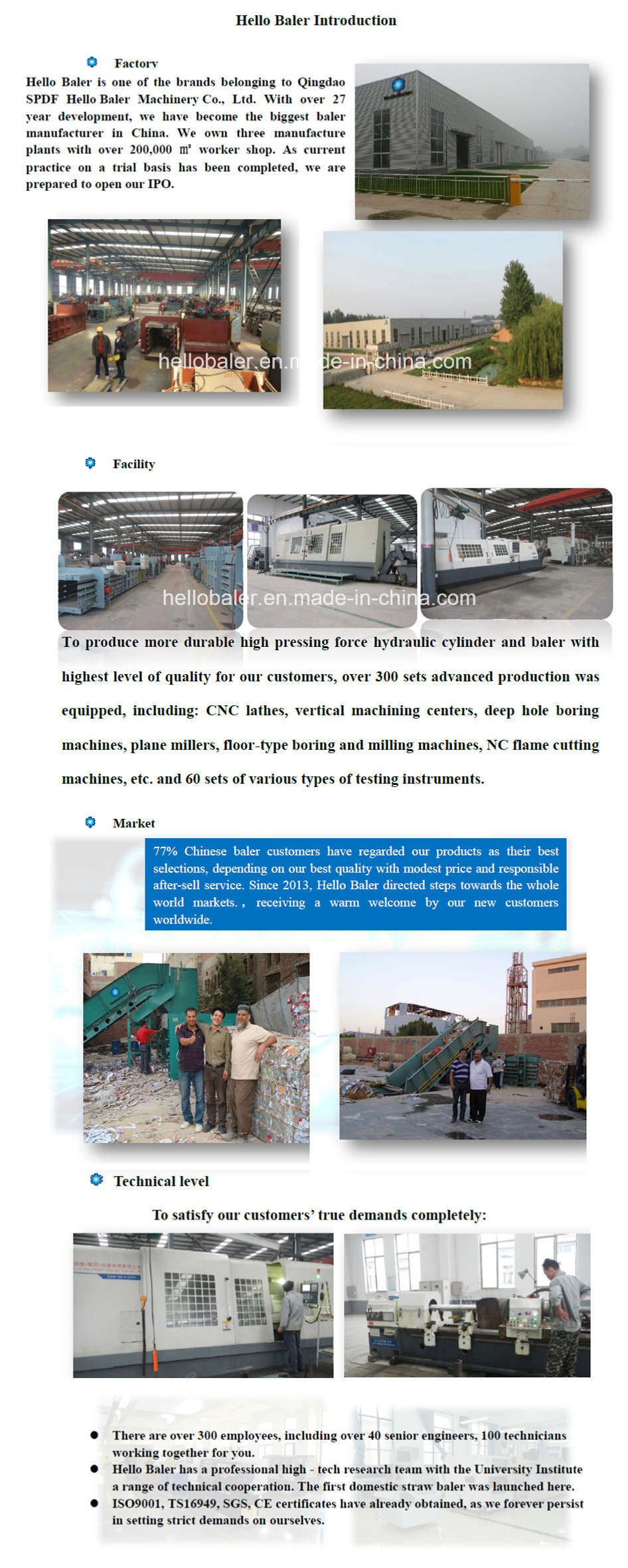

We Qingdao SPDF Hello Baler Machinery Co., Ltd, located in Qingdao, Shandong Province, China. Our factory is a professional baler manufacturer in China since 1986. With 28 years developments, nowadays, we have already been the biggest baler manufacturer in China with more than 200, 000 square meters worker shop. At 2012, we expand our business to worldwide markets, with two years developments, we get more and more worldwide customers cause our baler good quality and economic price.
Our main product is automatic baler, semi-automatic baler and manual baler etc, our baler can bale waste, paper, straw, hay, textile etc. All the baler have CE, SGS, ISO9001 Certificate. Our baler machine is very popular in China, the reputation is more than 65% in China market. Our baler is well known and popular in South Africa, South America, Brazil and Russian etc. We strongly believe "Hellobaler" will be very popular and bright in fulture!
Our company culture: Unit, Harmony, Spurt, Professional, Efficient, Promise. Welcome worldwide Cabable Agents Join Hello Baler Team!
Hello Baler, Hello World!
