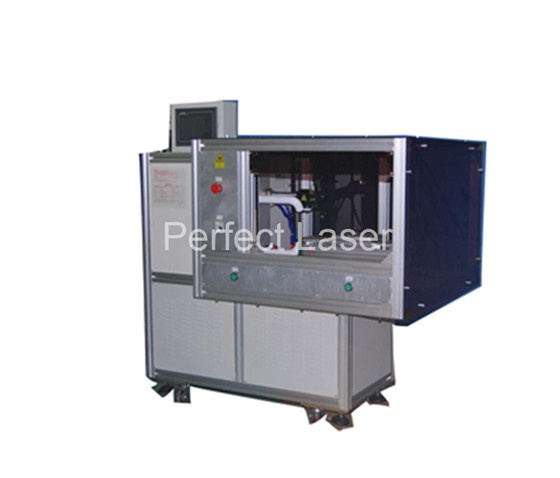

Vertical Type Two Heads Laser Wire Stripping Machine with Safety Device
Product Specifications
| Prod Model: |
PEDB-C02II/Y02II -K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Laser Type: |
CO2 Laser/Fiber Laser |
| Laser Output Power: |
20W/30W/50W |
| Wavelength: |
10600nm/1064nm |
| Laser Power Adjustment: |
0~100% |
| Stripping Speed Adjustment: |
0~200mm/S |
Product Description
Vertical type two heads laser wire stripping machine with safety device
Product Features
1. Due to different materials absorb different waves, when adopting laser non-contacting cutting, it can precisely control the cut position, slitting, depth with precise repeating orientation, and can processing the inner shield layers, as well as insulators in various materials, then minimize the possibility of finished product defects.
2. According to different materials of the wires, we can choose the right laser system to meet our special wire processing needs.
3. After laser stripping, the wire tension is stronger than it is processed by thermal desorber.
4. After laser stripping, the inside and outside of the insulation layer has no incision, no irregular behavior.
5. Before and after laser stripping, the insulation of the wire keeps unchanged.
6. With high speedy for wire processing.
7. High consistency and reliability for a certain kind of wire
8. It supports several operation (or processing) files and procedures setting and saving.
9. The machine can both work individually and applied in an automatic production line.
10. Customers can choose vertical or horizontal structure to cater for different needs.
Applications
CO2 Laser Wire Stripping Machine is mainly applied for cutting non-metal materials ,including Polyvinyl chloride ,glass fiber, polyester, polyester film, fluoride , nylon, polyethylene, silicone resin, and other insulation.
Fiber/YAG laser wire stripping machine is mainly applied for cutting metal materials. It is suitable to process coaxial cable, electronics wire, antenna, FPC in the field of mobile phones, notebook computers, camcorders, digital cameras and other micro-electronics industry products, especially suitable for thin data-line cables with core diameters smaller than 0.5mm.
Technical Specifications
| Model | PEDB-C02II -K | PEDB-Y02II -K |
| Laser type | CO2 Laser | Fiber Laser |
| Laser output power | 30W (customizable) | 20W (customizable) |
| Wavelength | 10.6μm | 1064nm |
| Laser energy adjustment | 0~100% | 0~100% |
| Stripping Speed | 0~200mm/s | 0~200mm/s |
| Alignment accuracy | ±0.03mm | ±0.03mm |
| Cooling mode | Air cooling | Air cooling |
| Power supply | 220(110)V/50(60)Hz/1.5kVA | 220(110)V/50(60)Hz/1.5kVA |
| Overall Dimension Horizeontal | 1070×300×410mm (L×W×H) | 1070×300×410mm (L×W×H) |
| Overall Dimension Vertical | 1140×665×115mm (L×W×H) | 1140×665×115mm (L×W×H) |
Training
1) Free Training by VCD: We will supply the machine with
, and in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by E-mail, fax, telephone, MSN, ICQ and so on, when you meet some problems of installation, using or adjusting. (Recommend)
2) Free Training in Perfect Laser's Factory: You can send operator to Perfect Laser factory for free training. Perfect Laser will offer professional guide for free. It is direct and effective face-to-face training. Here we have well-assembled equipments, all sorts of tools and testing facility.
Training Time: 2-3 days (Recommend)
3) Our engineer can do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period.
Quality Guarantee and After-sales Services
1)The guarantee period of quality shall be 12 months counting from the date on which the commodity arrives at the port of destination. Except the damage artificially and laser krypton lamp, we are responsible for offering the fittings free of charge during the guarantee period. While user is kindly requested to send the damaged fittings to us by courier with your charge before we send back the alternative fitting parts. After the guarantee of quality period, the parts required repairing or change, if any, shall be reasonable charged.
2)We will give technical guide by email, fax and telephone when user meets some problems on installation, operation, adjusting, maintaining.
3)We offer technical supporting to ensure safety using & maintenance for user:
Operation manual for installation, adjusting, operation, maintaining;
Professional marking software;
Operational marking software backup;
Quick supplement of key componentsUU with reasonable price.
Life-long after-sales service & consulting service to user.
