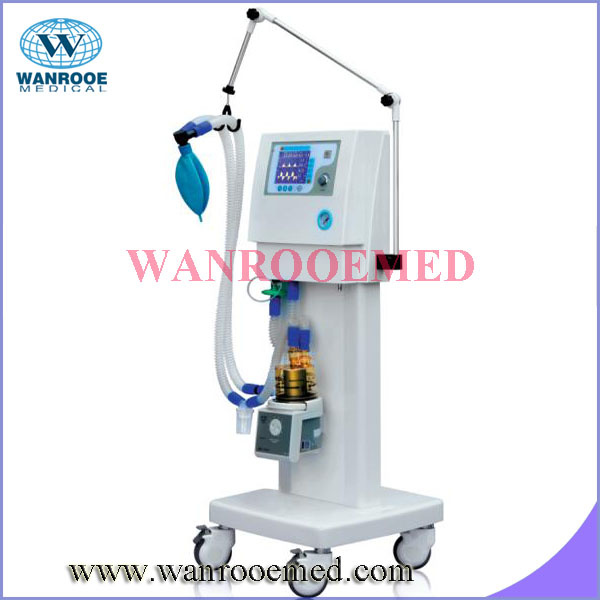

Vertical Type Ventilator Machine
Product Specifications
| Prod Model: |
AV-2000B1 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tidal Volume: |
50-1500 Ml |
| Ventilation Parameters: |
Peep, Sigh, Irv, Inspiratory Platform |
| OEM: |
Available |
| I:E: |
4:1~1:8 |
| Certificates: |
ISO,CE |
| Factory Location: |
1.5 Hours From Shanghai |
| Type: |
Anaesthesia Machine |
| Certification: |
ISO13485 |
| Group: |
Adult |
| LCD Display: |
Without LCD Display |
Product Description
AV-2000B1 is a multi-functional ventilator, it is is applicable for children and adults in sickroom, ICU or for emergency.
Nine gear temperature control system with heating protection function.
Ventilator Specifications:
| Display | colored LCD, touch screen setting, big font display, free changeable angles of views |
| Various ventilation modes | SIPPV,SIMV,PCV,SPONT,MANUAL,CPAP |
| Ventilation parameters | PEEP,SIGH,IRV,Inspiratory platform |
| Tidal Volume | 50-1500 mL |
| Rate | 1~99bpm |
| SIMVrate | 2~20bpm |
| I:E | 4:1~1:8 |
| Trigger sensitivity | -1.0~1.0kPa |
| PEEP | 0~25cmH2O |
| Pressure control | 3~50cmH2O |
| SIGH | 1.5 times the inspiratory time (60 ~ 120 times adjustable) |
| Inspiratory platform | 0~50% |
| Oxygen concentration | 48%~100% |
| Pressure limit | 5~60cmH2O |
| Parameters for ventilation monitoring | tidal volume, ventilation volume, IPPV rate, total respiratory rate, peak pressure of airway, pressure - time waveform, flow rate - time waveform, inspiratory trigger pressure, Inspiratory platform, Oxygen concentration, battery capacity |
Safety Alarm System
Airway pressure alarm |
upper limit setting range 0.3~6.0 kPa
lower limit setting range 0.2~5.0 kPa |
Per-minute ventilation volume alarm |
upper limit setting range 3.0~30L/min
lower limit setting range 1.0~10L/min |
Vt alarm |
upper limit setting range 10~2000ml
lower limit setting range 0~1800 ml |
Sustained high-pressure alarm |
it will give alarm when stress have consistently been higher than 2.5 kPa |
Suffocation alarm |
it will give sound and light alarm if there is no tidal volume input for 15 seconds |
Power failure alar alarm |
|
Power |
AC 220V±10% 50Hz±1Hz
UPS, Storage battery |
Battery under-voltage alarm
Power loss alarm
Intubation off alarm
Heated humnidifier
