Product Specifications
| Prod Model: |
PCS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control Mode: |
PLC |
| Lifting Power: |
22 Kw |
| Lifting Speed: |
60~120 (M/Min) |
| Sidesway Power: |
1.1 Kw |
| Sidesway Speed: |
20 (M/Min) |
| Tuntable Power: |
2.2 Kw |
| Tuntable Speed: |
3 (M/Min) |
| Type: |
Parking Lift |
| Design: |
Four Post |
| Certification: |
ISO |
| Working Mode: |
Touch Screen,IC Card |
| Driving: |
Wire Rope or Chain |
| Falling Prevention Device: |
Hook |
| Lift Mode: |
Wire Rope or Chain |
| Voltage: |
380V |
Product Description

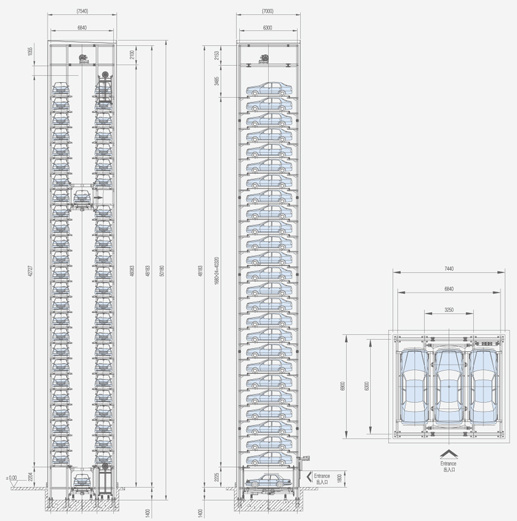

Work Pringciple
It is set in every other column, the parking space can do horizontal movement. Each lifter can do revolving space. When in and out, the space together with the car will enter the nearest lifter and exchange cars with it, meaning take the car from the parking space to the lifter or transferred from the lifter to the space.
TECHNICAL SPECIFICATIONS
| PRODUCT DESCRIPTION | Vertical Automated Vehicle Storage |
| MODEL # | PT |
| STALL LENGTH, ft-in (m) | 18'-0" (5.48) |
| STALL WIDTH, ft-in (m) | 7'-6" (2.3) |
| CLEARANCE REQUIREMENTS/ STALL (h) | 6`-8`` (2) |
| LIFTING CAPACITY / PLATFORM, lbs (kg) | 6000 (2722) |
| WEIGHT OF UNITS, lbs (kg) | (determined by model) |
| ELECTRICAL REQUIREMENT | 3-phase 480V |
| OPERATION | Automatic with manual override for emergency retrieval |
| ADDITIONAL REQUIREMENT | Intergrated Sortware Program |
TECHNICAL SPECIFICATIONS
About US
1. Huaxing Metal Structure Co., Ltd., as the main investment party of Huaxing Parking, has Grade-I steel structure manufacturing and installation qualification, ten years of manufacturing and sales experience and more than 8 million square meters of steel structure construction cases. So we can guarantee the permanent beauty of the machinery garages in the aspects of derusting, paint spraying and welding of steel structures.
2. Huaxing Parking has established long-term closely cooperative relationships with Hefei University of Technology, Chinese Academy of Sciences (Hefei) and advanced parking equipment manufacturers in Japan, South Korea, etc. It has more than 60 professional technicians, including 5 professor senior engineers and 25 engineers. Most of them have above 5 years of experience in parking equipment industry. Most of the workers committed to steel structures and electrical accessories have above 3 years of experience, skilled and experienced.
3. Huaxing continuously makes improvements in the aspect of technology and challenges zero defect in the aspect of quality. Since 2008, it has recruited technical experts and management elites with high salary from Shuangliang, Yee Fung, XJ, Hanguang, South Korea YKY, etc. Especially, several patents (such as advanced safe, automatic and flexible loading technology, falling preventive device and stroke control devices, etc. ) fill in the blanks in national market. Now the team is stable and in good spirit, which is the basic guarantee of long-term development.
If you have interest, please feel free to contact us
HUAXING is China top 10 parking systerm manufacturer, HuaXing is world famous brand in parking systerm. We are the first listed company of manufacturing parking system industrial in China.
HUAXING has established long-term closely cooperative relationships with Hefei University of Technology, Chinese Academy of Sciences (Hefei) and advanced parking equipment manufacturers in Japan, South Korea, etc.
HUAXING has more than 60 professional technicians, including 5 professor senior engineers and 25 engineers. Most of them have above 5 years of experience in parking equipment industry.
Huaxing continuously makes improvements in the aspect of technology and challenges zero defect in the aspect of quality.
Especially, several patents (such as advanced safe, automatic and flexible loading technology, falling preventive device and stroke control devices, etc. ) fill in the blanks in national market. Now the team is stable and in good spirit, which is the basic guarantee of long-term development.
