Product Specifications
| Prod Model: |
DXDV-FB420D |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
L1550*W1200*H1350mm |
| Automatic Grade: |
Automatic |
| Material Type: |
Powder |
| Packaging Type: |
Bag |
| Packaging Material: |
Film |
Product Description

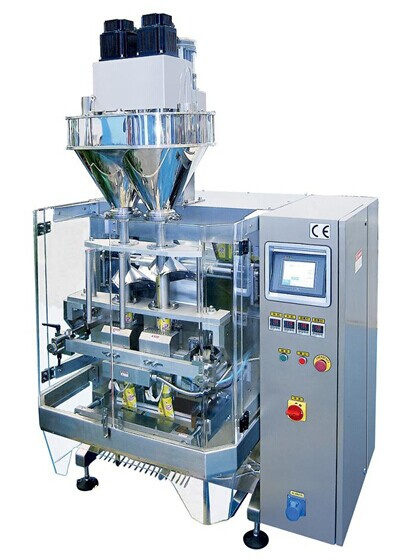

This is a double-lane back sealing powder packing machine. It is applicable for packing non-free flowing powder such as health food powder, milk powder, coffee powder, Chinese herb powder, chemical powder, drink powder in the industries of foodstuff, pharmacy & medicine
Main Technical Parameters
| Model | DXDV-FB420D |
| Bag sizes Length | 60-220mm |
| Width | 65-105mm |
| Packing speed | 100-160bags/min |
| Electrical source and power | AC220V, 50/60Hz, 5kw |
| Compressed air cost | 6-8kg/m2 0.15m3/min |
| Total weight | 750kg |
| Dimension | L1550*W1200*H1350mm |
Characteristics:
1. Safe protection cover, according to CE Standard
2. Double Lane to promote capacity, reduce cost & space occupation
3. Independent temperature controller to have accurate temperature control ensure the artistic and neat seal
4. Use PLC Control, Servo Motor Roll Film Driven, Servo Motor Horizontal Sealing, Pneumatic Driven Sealing, Touch screen operation to maximize the whole machine's control precision, reliability, and intelligentized level
5. This machine completes the whole packing procedure of bag forming, filling, sealing, cutting, counting, date printing, etc
6. Touch screen can store the technical parameters of various kinds of products, no need to reset while products changing.
7. Have error indicating system, helping to handle the trouble immediately.
8. Double-belt transportation, placidly and quickly, small friction, little waste.
9. Make gusset bags and hanging hole bags according to customers' different requires
10. Whole stainless steel machine according to Sanitary standard
