Product Specifications
| Prod Model: |
VFM60 |
| Markets: |
North America,South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| 2~70m/S Low Measurement Limit: |
Anti-Vibration for 0.5g |
| Type: |
Vortex Flow Meter |
| Main Application: |
Steam |
| Measuring Principle: |
Karman Vortex Street |
| Accuracy: |
1% of Reading |
| Size: |
Dn15~Dn300 |
| Sensor: |
Wafer or Flanged |
Product Description

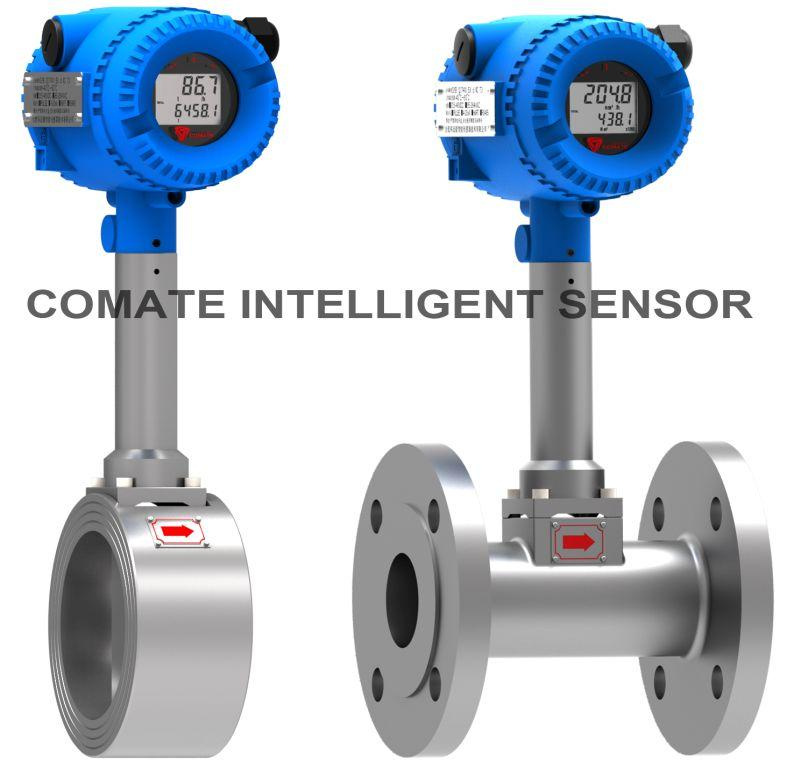

VFM60 vortex flowmeter
Most reliable and accurate vortex flowmeter.
Special design ensure its best anti-vibration capacity in the world.
2m/s super low measure limit for gas/steam.
1% reading accuracy in 2~70 m/s measurement range, 1: 35 wide turn down
Measurement Unit metric or British selectable
Passwork protection avaibale
Self-compensation programe available to save mass flow computer
Self-diagnose function, easier trouble shooting.
Analog current and pulse output as standard, HART and RS485 communication available
304SS body as standard, 316ss avaiable.
Availbe for JIS, DN, DIN, ANSI standard flanges
Mose cost-effective price range
| Fliud to measure | Liquid, steam, gas |
| Nominal diameter | Wafer/Flanged(ANSI/DN/DIN/JIS): 15mm~300mm(1/2"~12")
Insertion: 80mm~700mm(3"~28") |
| Measurement range(m/s) | | DN15~25 | DN32 | DN40~300 |
| Steam | 8~70 m/s | 4~70 m/s | 2~70 m/s |
| Gas | 8~60 m/s | 4~60 m/s | 2~60 m/s |
| Liquid | 0.3~7m/s | 0.3~7m/s | 0.3~7m/s |
| Accuracy | ±1% RD (insertion is 1.5%RD)
For multi-variable version: Temperature ±1ºC, pressure: 0.75% FS |
| Repeatability | 0.3% RD |
| Output | 4-20mA@ HART / RS-485 |
Process Temperature
Range | -40ºC~150ºC; -40ºC~280ºC; -40ºC~350ºC; |
| Process Pressure Limit | -0.1 MPa (-1 kg/cm2) to flange rating |
| Ambient Temperature Range | -40 to 85°C |
| Ambient Humidity | 5 to 100% RH |
| Electrical Connection | 1/2 NPT, M20 × 1.5 |
| Materials | 304 SS, 316 SS, 316L SS |
