VGA Splitter 1X1 UTP Extender 300m with Audio Petves

Name: VGA Splitter 1X1 UTP Extender 300m with Audio Petves
Brand: china-manufacturer-directory.com
SKU: 717700795
Availability: InStock
Rating: 4.4 (27 reviews)

Supplier:	Protech Electronics & Technology Limited
Price:	US $ 32-33.8/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CFR,EXW

Product Specifications

Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Certification:	HDMI Adaptor, Reach, FCC, RoHS, CE
User Manual:	English Version, or Custom Made
Function:	1X1 VGA Splitter Extender 300m
Signal Input:	VGA + Audio
Output:	2 VGA + Audio
1 CTN Contain:	24PCS
1 X VGA Output For Local Site 1:	1 X UTP Output for Remote Site
Intelligent Or Mechanical:	Gain and Peak Adjusting
Extend The VGA Display:	300 Meters
Highest Video Resolution:	1080P
Application:	Commercial

Product Description

Introduction

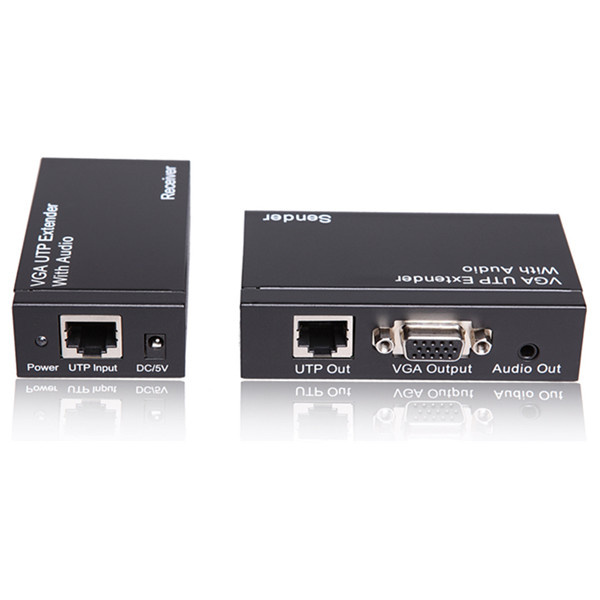

This VGA UTP Extender 1X1 Splitter with Audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal into the local and remote outputs simultaneously.

Receiver by Cat5 X1 works with the Sender as a full functional module by receiving the distributed signal from the sender and transmitting to display. Only by the most inexpensive UTP cable with cross stand nside, the full functional module extend the VGA display max up to 300 meters.

Features

* Extend VGA video and stereo audio signal max up to 300m over one UTP cable with cross stand inside

* Adjusting GAIN and PEAK to adapt for the different length of UTP cable.
GAIN: Brightness adjustment.
PEAK: Skew adjustment.

*Supports resolution max up to 1920X1200.
*Dual output at local unit: 1 X VGA output for local site, plus 1 X UTP output for remote site.
*Work with monitors projectors, HDTV, and flat panels.

For any inquiry, pls feel free to contact us anytime (Janet Qiu)
Tel: +86 755-89205902 #612
Mobile: +86 13421322491

Input connector	VGA(Female 15pin), Stereo Audio
Output connector	VGA(Female 15pin), Stereo Audio,1xRJ45
Vertical Frequency Range	60/75/85Hz
Resolutions(PC) 640X480 800X600 1024X768 1280X720 1280X768 1280X960 1280X1024 1600X900 1600X1200 1920X1080 1920X1200
Size of VGA UTP Extender 1X1 Splitter	100×65×25.5mm
Weight of VGA UTP Extender 1X1 Splitter	208g
Size of Receiver (L-W-H)	81.5×43×23MM
Weight of Receiver (Net)	108g
Limited Warranty	1 Year Parts and Labor
Operating Temperature	0°C to +70°C
Operating Humidity	10% to 85 % RH (no condensation)
Storage Temperature	-10°C to +80°C
Storage Humidity	5% to 90 % RH (no condensation)
Power Supply for VGA UTP Extender 1X1 Splitter	5V@2A, max 5W
Power Supply for Receiver	5V@2A, max 5W
Converter Unit	FCC,CE,UL
Power Supply	UL,CE,FCC
AC Power Adapter	US standard, UK standard and so on
User Manual	English Version
