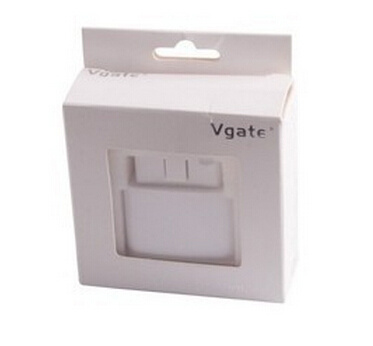

VGATE WIFI OBD Muliscan Elm327 For ANDROID PC IPHONE IPad
Feature1. Fully compatible with ELM327 V1.4b.
2. All ELM327 supported software are available to use.
3. Faster than ELM327 four times or higher. (ELM327 is RISC 8bit 44MHz MCU, iCar is ARM 16bit MCU)
4. Due to the android diagnostic software becomes heavier to run, suggest to use on smart phone with CPU 800Mhz or higher, 1GHz recommended.
5. Built in power switch.
6. Low standby power consumption sleep mode.
7. Lower power consumption than ELM327
8. LED indicator is in the front side toward user for easier check of linking status.
9. Support J1939 protocol more than ELM327.
10. WiFi 802.11 b/g and encrypted for better security.
Product Specification:
OBDII decode chip: ARM 16bit MCU
Firmware: ELM327 Version 1.4b compatible
Transfer baud rate: 4800 / 9600 / 10400 / 38400 / 500K

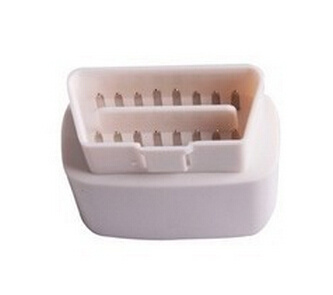

Input interface: OBDII male 16pin
Output interface: Wifi 802.11 b/g

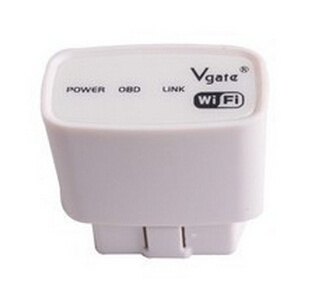

LED Indicator: Power(red) / OBD(green) / Link(blue) (PC or smart phone)
Operating Voltage: 12V, including over voltage /shortage protection
Nominal Idle current: 45mA
Net Weight: 31g
Gross Weight: 60g
Wire Length: 0 cm
SSID: BUYOBD
Password: See item label
IP: 192.168.0.10
HTTP local port: 35000
Encryption: WEP128
Power: supplied by car OBD socket
Usage:
1. Plug the scantool into Car OBDII female socket which is usually below the driving wheel.
2. Insert car key and switch to Accessory ON position for static data reading,
3. Scan the iCar from your Desktop/Notebook PC/PDA wifi device.
4. Find "BUYOBD" to link. Enter password which is on the item label.
5. You may switch car key to Start position to read more dynamic data readings.
Communication Protocol
OBDII 16-pin DLC definition:
1. n/a
2. Bus + (SAE J1850 PWM, VPW)
3. n/a
4. Battery -
5. Signal -
6. CAN High (ISO 15765-4)
7. K Line (ISO 9141-2, SAE J2234)
10. Bus - (SAE J1850 PWM, VPW)
14. CAN Low (ISO 15765-4)
15. L line (ISO 9141-2, ISO 14230-4)
16. Battery +
Only pins 2, 4, 5, 6, 7, 10, 14, 15, 16 defined by above standards read data.
Other customized pins are not supported.
Please confirm OBDII label located under front engine hood.
Support OBDII/EOBD2 protocols:
ISO 15765-4 (CAN-B 125Kbps, started since 2003 in USA)
ISO 15765-4 (CAN-C 500Kbs, 11bit ID, 29bit ID, started since 2003 in USA)
ISO 14230-4 (KWP2000)
ISO 9141-2 (5 baud init. 10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
SAE J1850 VPW (10.4 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
SAE J1850 PWM (41.6 kbaud, replaced by 14230-4 gradually, stopped in USA in 2008)
SAE J1939 the Data link connector standard
Buyer vehicles test feedback
Other vehicle test result of ELM327
Function:
1. Read more than 3000 car manufacturers' stand DTC and private DTC (diagnostic trouble codes) and its meaning.
2. Clear DTC, turn off dashboard MIL "Check Engine" Light
3. Display sensor data, including:
Engine RPM
Load
Coolant Temperature
Fuel Status
Vehicle speed
Intake Manifold pressure (MAF/MAP)
Timing Advance
Intake Air Temperature
Air Flow Rate
Absolute Throttle Position
Oxygen sensor voltage /short term fuel trim
Fuel Pressure
Palm/Pocket PC (supports RS232/USB/bluetooth):
AutoEnginuity for Win PPC 2002/2003 v4.2, mobile 2003SE/2005 v4.4
AutoEnginuity for Palm 3.5+
EVOScanPPC for Mitsubishi 1994~2009 /Subaru,Win CE 4.2/5.0/6.0, Pocket PC 2002/2003, Win Mobile 5/6/7
OBD Gauge for PalmOS & Pocket PC by Dana Peters
ScanMaster-PPC for Pocket PC, Win Mobile
Nokia Symbian : (supports bluetooth)
AutoMobile (Blackberry, LG, Nokia, Motorola, Samsung, Sony Ericsson)
OBDScope (free trial and paid EUR9.95)
Nokia N800 & N810 internet tablet (supports bluetooth)
Carman
Android: (supports bluetooth)
alOBD scanner
DashCommand 2.9.1 by Palmer Performance
Torque by Ian Hawkins, Android 1.5/1.6/2.0/2.1
VoyagerDash by GTOSoft
