Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
Can Be Customized |
| Color: |
as Your Request |
| Mining Object: |
Magnetic Separator |
| Type: |
Mineral Processing & Screening Equipment |
Product Description

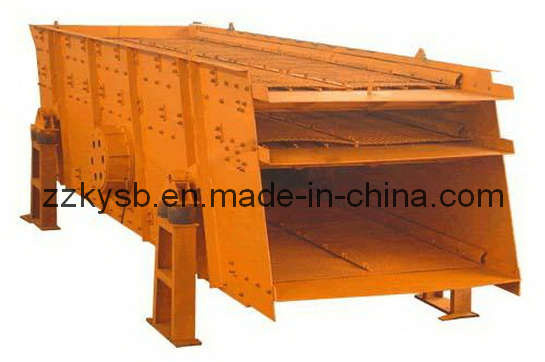

Discription of vibrating screen
The vibrating screen (vibratory screen) is of various layers and high efficiency
The vibratory screen adopts the barrel type of eccentric shaft vibration exciter and eccentric block to adjust the swing
The screen is of the flowing characteristics, the screening line is long and specification of materials screened is various, and it is also of reliable structure, strong exciting force, high screening efficiency, low vibrating noise, long durability, convenient maintenance, safe operation, and more
The vibratory screen is widely used for screening in wide range including mines, building material, transportation, energy sources, chemical industry, and more
Working principle of vibratory screen:
The vibrating screen consists of screen box, supporting device, vibration exciter, transmission part, and more, the barrel-type vibration exciter is installed in the middle part of the machine
During normal operation, the vibration of exciter will drive the screen mesh fixed on the screen box vibrate, and then materials will be screened
The big and small materials fall from the upper side and lower side of the screen to get them separated
|
Model |
Screen size (mm) |
No. of Layer |
Screen mesh (mm) |
Max. feed size(mm) |
Handling capacity (t/h) |
Motor power (Kw) |
Vibrating frequency (r/min) |
Double swing(mm) |
|
2YZS1237 |
3700× 1200 |
2 |
3-100 |
400 |
10-80 |
11 |
750-950 |
5-9 |
|
3YZS1237 |
3700× 1200 |
3 |
3-100 |
400 |
10-80 |
11 |
750-950 |
5-9 |
|
2YZS1548 |
4800× 1500 |
2 |
3-100 |
400 |
30-200 |
15 |
750-950 |
5-9 |
|
3YZS1548 |
4800× 1500 |
3 |
3-100 |
400 |
30-200 |
15 |
750-950 |
5-9 |
|
2YZS1848 |
4800× 1800 |
2 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
5-9 |
|
3YZS1848 |
4800× 1800 |
3 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
5-9 |
|
4YZS1848 |
4800× 1800 |
4 |
3-100 |
400 |
50-250 |
18.5 |
750-950 |
5-9 |
|
2YZS1860 |
6000× 1800 |
2 |
3-100 |
400 |
65-586 |
22 |
750-950 |
5-9 |
|
3YZS1860 |
6000× 1800 |
3 |
3-100 |
400 |
65-586 |
22 |
750-950 |
5-9 |
|
4YZS1860 |
6000× 1800 |
4 |
3-100 |
400 |
65-586 |
22 |
750-950 |
5-9 |
|
2YZS2160 |
6000× 2100 |
2 |
3-100 |
400 |
81-720 |
30 |
700-900 |
5-9 |
|
3YZS2160 |
6000× 2100 |
3 |
3-100 |
400 |
81-720 |
30 |
700-900 |
5-9 |
|
4YZS2160 |
6000× 2100 |
4 |
3-100 |
400 |
81-720 |
30 |
700-900 |
5-9 |
|
2YZS2460 |
6000× 2400 |
2 |
3-150 |
400 |
100-500 |
30 |
700-900 |
5-9 |
