Video, Data Audio, Ethernet, Phone, Customized Video Optical Converter

Product Specifications

Prod Model:	OM610 series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Functions:	Audio, Ethernet, Phone
Type:	Video Optical
S/N:	<60dB
Interface Type:	FC/PC
Capacity:	Video Optical Converter

Product Description

Olycom OM610 series of optical transmitter and receiver offer a wide selection of configurations, ranging from a simple setup with a single channel of a specific type of signal to sophisticated solutions with many channels of different signals (video, audio, data, telephone, alarm, and Ethernet). The flexible configurations are open to customization and ODM to cater various needs.
We support for more configurations / customization / OEM / ODM.

Key Features
1.Robust metal casings
2.Low optical link loss max 30dB
3.Without EMI, RFI and ground loop
4.Bi-di transmission on 1 fiber with WDM
5.High quantification level of 8BIT
6.Hot plug-and-play with switch power supply
7.Available in standalone and 19"3U rack systems

Specification

Optical
Wavelength	1310nm/1550nm
Output Power	-8~3dBm
Optic  Fiber	Single mode (9/125um) 20Km to 80Km  Multimode (50/125um) 1Km, ( 62.5/125um) 500m
Receiving Sensitivity	-30dBm
Interface	FC/ST/SC/LC
Video
Bandwidth	8MHZ
Compatible Systems	NTSC/PAL/SECAM
Impedance/Voltage	BNC 75Ω (unbalanced) / 2.0Vp-p
Differential Gain	< ±1%
Differential Phase	< ±1
S/N ratio	>60dB(weighting)(8 bit)
Interface	BNC
Data
Data Protocol	RS232, RS422, RS485, Manchester, BIPHASE data
Bandwidth	0~300kbps
Error rate	10 -9
Interface	Phoenix terminal
Audio
Impedance / Voltage	600ohm(unbalanced) / 2.0Vp-p
Frequency Response	10~20kHz
Total Harmonic Distortion	<0.05%
Differential Phase	< ±1
S/N ratio	>95dB(weighting)
Interface	Phoenix terminal
Contact Closure
Signal Input	Alarm, Binary input, support TTL, RS-232/422/485 or passive switch button
Signal Output	Arbitrary alarm, Binary output, support TTL, RS-232/422/485 or relay output
Interface	Phoenix terminal
Telephone
Phonetic Bandwidth	8KHz
Work Mode	Point to point hot line, program controlling switch/extension mode
Distortion	<1%
S/N Ratio	>95dB
Interface	RJ11 or RJ45
Ethernet
Work Mode	Full duplex / half duplex, autosensing
Network Speed	10/100Mbps, autosensing
Interface	RJ45
Chassis and Cards
Chassis Slots Quantity	18 slots
Compatibility(with cards)	1~4ch cards(18pcs);  8ch cards(9pcs)
Flexibility	Supports mixed installation of different configurations
Cards	In 4ch PCB(153x100x10mm) or 8ch PCB size (153x100x25mm) configurations which require larger size can't be used with this system
Electrical.Environmental.Mechanical
Operating Voltage	Standalone:220VAC to 5V/12VDC,  Rack: dual 220V/-48V AC, card: powered by chassis
Operating Temperature	-35°C to +75°C
Storage Temperature	-45°C to +85°C
Humidity	0~95% non-condensing
Dimension And Weight	Standalone and card: depends on different configurations, Chassis: 19"3U

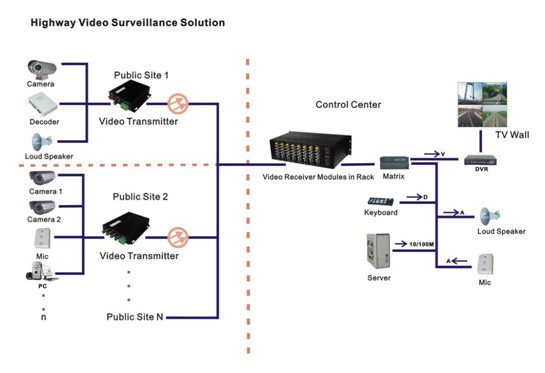

Applications
1.Police and safe city monitoring system
2.Express way security protection and toll station system
3.City traffic monitoring system
4.Building and campus monitoring system
5.Industrial monitoring (airport, chemical plant, railway, etc.)
6.Military monitoring (frontier defense, national defense)
7.Electronic power oil field, TV station program broadcasting
8.Gymnasium (live video and audio transmission

Order Details

OM610-1V ↑ 1D ↓ 1P1E WT/R	1ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone.
OM610-1V ↑ 2D ↓ 2A ↑ 1E WT/R	1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet
OM610-1V ↑ 2D ↓ 2A ↑ 2K ↑ WT/R	1ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch Contact Closure Tx
OM610-2P1EWT/R	2ch Telephone + 1ch 10/100M Ethernet
OM610-2V ↑ 1D ↓ 1P1E WT/R	2ch video Tx + 1ch RS485 data Rx + 1ch 10/100M Ethernet + 1 Telephone.
OM610-2V ↑ 2D ↓ 2A ↑ 1E WT/R	2ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet
OM610-4EWT/R	4ch 10/100M Ethernet
OM610-4P2D ↓ WT/R	4ch Telephone+ 2ch RS485 data Rx
OM610-4V ↑ 1D ↓ 4E WT/R	4ch video Tx + 1ch RS485 data Rx + 4ch 10/100M Ethernet
OM610-4V ↑ 1D ↓ 4PWT/R	4ch video Tx + 1ch RS485 data Rx + 4ch Telephone
OM610-4V ↑ 12D ↓ WT/R	4ch video Tx + 12ch RS485 data Rx
OM610-2D ↓ 8PWT/R	2ch RS485 data Rx + 8ch Telephone
OM610-20D ↓ WT/R	20ch RS485 data Rx
OM610-1V ↑↓ 1D ↑↓ 1A ↑↓ 1K ↑↓ WT/R	1ch bi-di video + 1ch bi-di  RS485 data + 1ch bi-di audio + 1ch bi-di contact closure
OM610-2D ↑↓ 4A ↑↓ 1E WT/R	4ch bi-di audio + 2ch bi-di  RS485 data + 1ch 10/100M Ethernet
OM610-1V ↑ 1D ↑↓ 3A ↑ 2K ↑↓ WT/R	1ch video Tx + 2ch bi-di  RS485 data + 3ch audio Tx + 1ch bi-di contact closure
OM610-4V ↑ 2D ↓ 2A ↑ 1E 1P2K ↑ WT/R	4ch video Tx + 2ch RS485 data Rx + 2ch audio Tx + 1ch 10/100M Ethernet + 1ch Telephone + 2ch Contact Closure Tx
