Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size And Shape: |
According to The Application Area and Conditions |
| Application Area: |
Nickel, Copper, Zinc, Manganese... |
| Lifetime: |
>20 Years |
Product Description

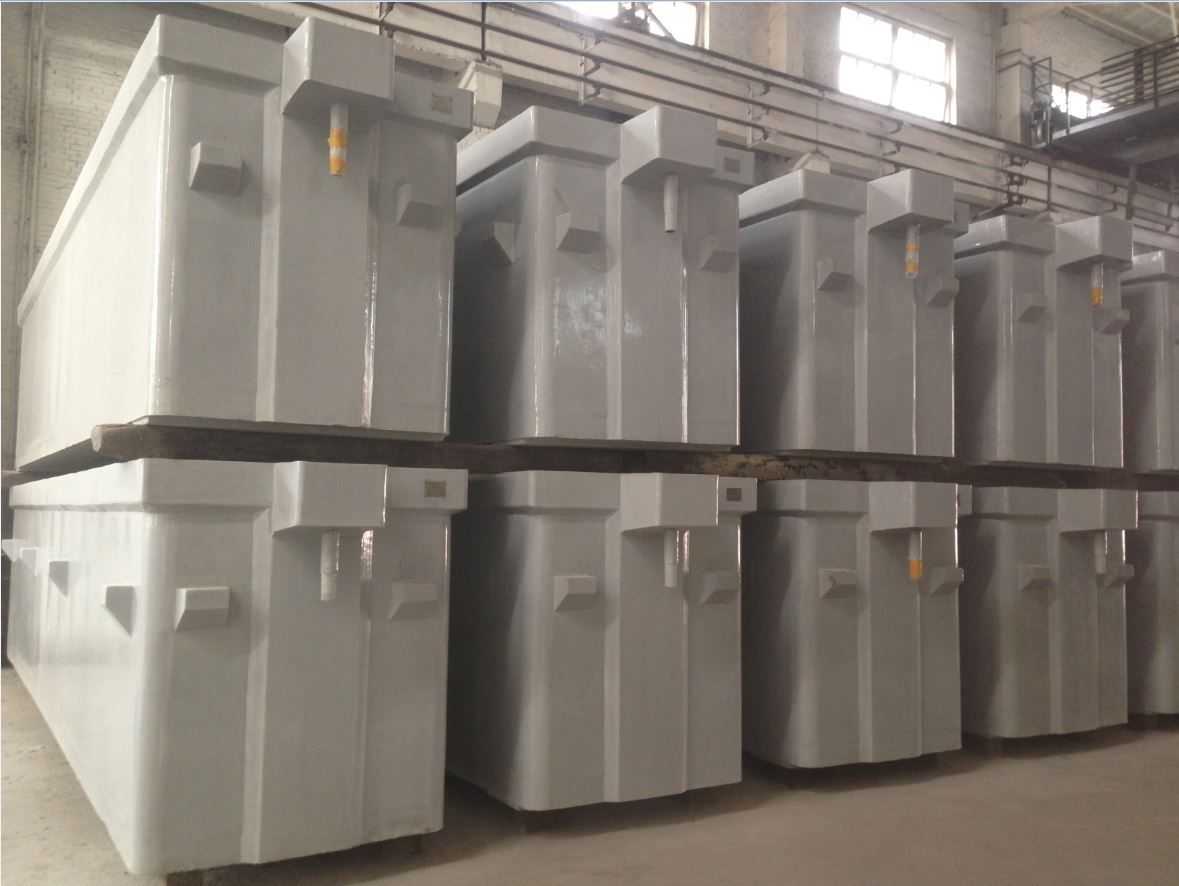

TIANHUA vinyl ester resin concrete electrolytic cell made by monolithic casting is a new generation electrolytic cell, which is independently developd by our company from 2004. TIANHUA electrolytic cell is overall corrosion resistance, overall insulation, overall high strength and maintenance-free. It greatly improves the production efficiency, reduces the energy loss, reduces the polution of the environment, which can be widely applied in the production of nonferrous metals hydrometallurgy, such as the copper, zinc, manganses, cobalt etc.
TIANHUA electrolytic cell is high efficiency, low cost, energy-saving and environmental protection. We can provide desigh, manufacture and installation for the metallurgy project overall solution. Besides, we can manufacture cells according to your desighs or requirements.
Detailed Images
Application
Transportation
In consideration of the long overseas transportation period and the frequent loading and unloading, we adopt steel frame for paking to protect the safety of the electrolytic cell.
After-Sales Service
Lifetime And Operation Cost:
Under normal working operation, the lifetime of the cell body is equal or greater than 20 years. There is not parking lost and maintenance cost unless the man-made or an accident. The operating cost is almost zero.
Warranty Period:
We supplies goods with a warranty period of 18 months from delivery to customer or 12 months from the equipment on site installation and commissioning. In the warranty period, if the equipment or the parts emerge quality problems for our reasons, we offer repairing or exchanging service for free, and the warranty will be extended for another 12 months.
Contact Us
http://www.th-flake.com http://www.cthkj.com
TEL:0931-7312008 0931-7312058
Welcome to contact us!
|
Performance parameters |
quality index |
|
Compressive strength |
130.5MPa |
|
Bending strength |
23.55MPa |
|
Flexural Modulus |
3.36×10 4 MPa |
|
Density |
2.25×10 3 Kg/m 3 |
|
Thermal conductivity |
6.63KJ/(m•h•k) |
|
Specific heat |
0.741 KJ/(Kg• )(20.1 30.5 )
0.800 KJ/(Kg• )(30.5 40.8 )
0.890 KJ/(Kg• )(40.8 50.7 ) |
|
Coefficient of thermal expansion |
16×10 -6 /K |
|
Mass resistivity |
3.56×10 12 Ω•cm |
|
Sheet resistivity |
5.95×10 11 Ω |
The Res. Inst of Chem. Mach of the Ministry of Chemical Industry was founded in Beijing in 1958, and moved to Lanzhou in 1965.
The Res. Inst of Automation of the Ministry of Chemical Industry was founded in Lanzhou in 1963.
In 1997, the Res. Inst. Of Chem. Mach of the Ministry of Chemical Industry and the Res. Inst. Of Automation of the Ministry of Chemical Industry were combined to become the Res. Inst of Chemical Machinery and Automation of the Ministry of Chemical Industry.
In 2000, the Res. Inst of Chemical Machinery and Automation of the Ministry of ChemicalIndustry completed its transformation to enterprise and registered as Tianhua Instituteof Chemical Machinery and Automation.
Tianhua Institute has the following subordinated institutions:
Supervision and Inspection Center of the Quality of Chemical Equipments in Nanjing, Jiangsu Province
Nanjing Equipment Institute in Nanjing, Jiangsu Province;
Automation Institute in Suzhou, Jiangsu Province;
Lanzhou Ruima Chemical Machinery Co Ltd in Lanzhou, Gansu Province;
Lanzhou Ruide Drying Technology Co Ltd in Lanzhou, Gansu Province;
LanzhouLantai Plastics Machinery Co Ltd in Lanzhou, Gansu Province;
Gansu Airuike Automation Technology Co Ltd in Lanzhou, Gansu Province;
The Lanzhou United Institute of Chemical Machinery and automation and the Nanjing United Institute of Petrochemical Industry Furnaces were founded by Tianhua Institute and the Sinopec.
Tianhua Institute has an occupation area of 80 000m2 and a total asset of 1 407 000 000 Yuan (RMB). The annual output value is 1 000 000 000 Yuan (RMB).
Tianhua Institute has about 916 employees, 75% of them are professional personnel. Among them are 23 professors, 249senior engineers, 226 engineers. 29 professors and senior engineers enjoy national special subsidy, On 5 people the title of Middle-aged and Young Specialist with Outstanding Contribution to the P. R. China are conferred
