27 Year experience manufacturer
CE cerfificate
OEM
Standard export plywood case

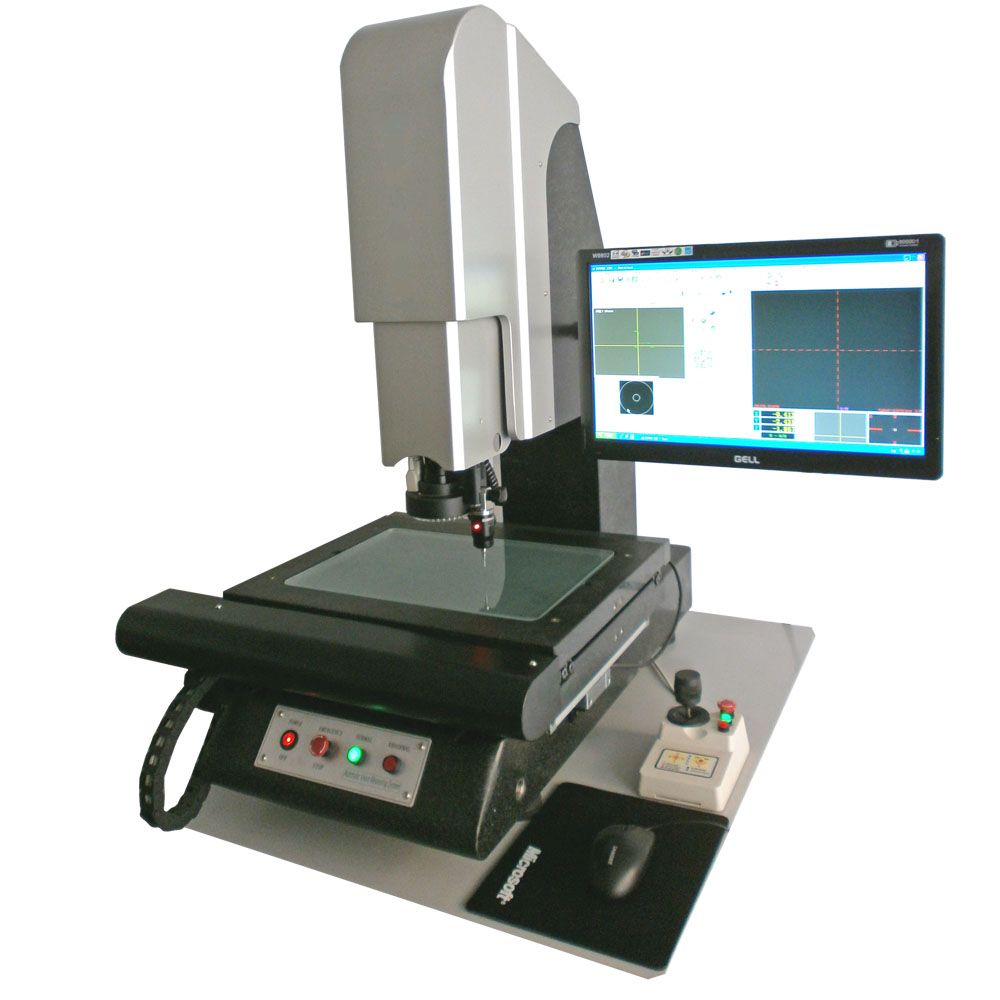

Vision Detection Apparatus /3D detection
Vision Detection Apparatus /3D detection is composed of a series of accessories, such as color CCD Camera & adapter, zoom lens capture card, linear scales, high precision worktable, electronic motor, PC and monitor, mainly applied in 3D measurement field, such as: PCB, mobile phone fittings, linker, machine fitting, precision fixture, etc.
Vision Detection Apparatus /3D detection Features:
1.It's designed to do three-dimensional work piece on the slope, round, bad ditch, columns, ball, dimension,as well as three-dimensional measurements such as blind holes as well as the distance between the elements, angle and other geometrical terms.
2.Coupled with 3D optical measurement software to achieve rapid detection, at the same time with SPC data analysis capabilities in order to achieve a one-time complete the whole measurement.
3.Measurement data and graphics can be directly converted to Word, Excel and AutoCAD.
4.Flexible & harmonious translation of coordinates make the measurement more convenient and efficient.
Short introduction about ASLi factory:
We are a long history testing equipment manufacturer, in the past 27years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.3D Video Measuring System is our star products , and we had obtained the CE certification for this machine .
After-sale service:
Feedback within 2 hours, and offer solution in 4 hours and help to solve the problems.
Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.
| technical parameter: |
| Model | SOV-4030 | SOV-3020 | SOV-2010 |
| Dimensions, WxHxD (mm) | 860x650x1120 | 700x500x900 | 570x370x790 |
| Zoom Multiple (17 inch screen) | 20x-120x, 30x-225x |
| CCD | Color, 1/3 inch , 8000000 PX |
| X*Y*Z Stroke (mm) | 400x300x150 | 300x20x150 | 200x100x100 |
| Bench Dimensions(mm) | 600x450 | 500x350 | 350x270 |
| Load of Bench(Kg) | 30 | 25 | 30 |
| Optional Configuration | UK Probe |
| Weight (Kg) | 350 | 180 | 100
|
Welcome our new and regular customers visit our factory, and any inquiries please feel free to contact us for quotation !
Ms. Doris Zhou
ASLi (CHINA) TEST EQUIPMENT CO., LTD
Company Add.:Building C,JinHui Industrial Park, LiXin town,East City district 523125,DongGuan City,China
Tel.:0086-769-23164266
Fax:0086-769-22851784
Website:http://www.asLitesting.com
Established in 1988, ASLi (China) Test Equipment Co., Ltd is specialized in manufacturing a variety of quality inspection instruments, testing equipments and other high-tech products which mainly include: Programmable constant Temperature & Humidity Test Chamber, High & Low Temperature Test Chamber, High & low Temperature Testers with Rapid Temperature Change, Walk-In humidity & temperature test chamber, Cool/Thermal shock test chamber, Salt spray chamber, aging tester, drying oven, xenon lights resistant to climate testing machine, UV resistant to climate testing machine, ozone aging test machine, sand and dust testing machine, tension tester, high and low temperature testing machine, servo carton compression tester, mechanical vibration tester and other quality testing instruments. Thanks to several decades of R&D efforts, the company has established itself as a leading provider of testing instruments of the industry, playing a crucial role in the research and development of high-quality and high-value products within the industry.
ASLi (China) Test Equipment Co., Ltd is authenticated by competent testing centers, including the National Measurement andTestingCenterand South China Center of Metrology. Famous for precision and reliability, these products have been extensively used within the industry, by research institutions, quality inspection agencies, and colleges and universities both at home and abroad, serving a worldwide customer base.
With unmatched quality advantage, a dynamic management team, professional customer services, superb manufacturing techniques and innovative research and development ideas, ASLi (China) Test Equipment Co., Ltd, supported by an international, standard and professional quality policy, is gradually becoming an international brand. Its products are manufactured in consistent with a number of world standards, IE, ISO, ASMT, DIN, EN, GB, BS, JIS, ANSI, UL, TAPPI, AATCC, IEC, VDE, CSA and CEN.
