Product Specifications
| Prod Model: |
BD-261 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimension: |
185*25 Mm |
| Weight: |
162g |
| Emitter Type: |
Fp-Ld |
Product Description

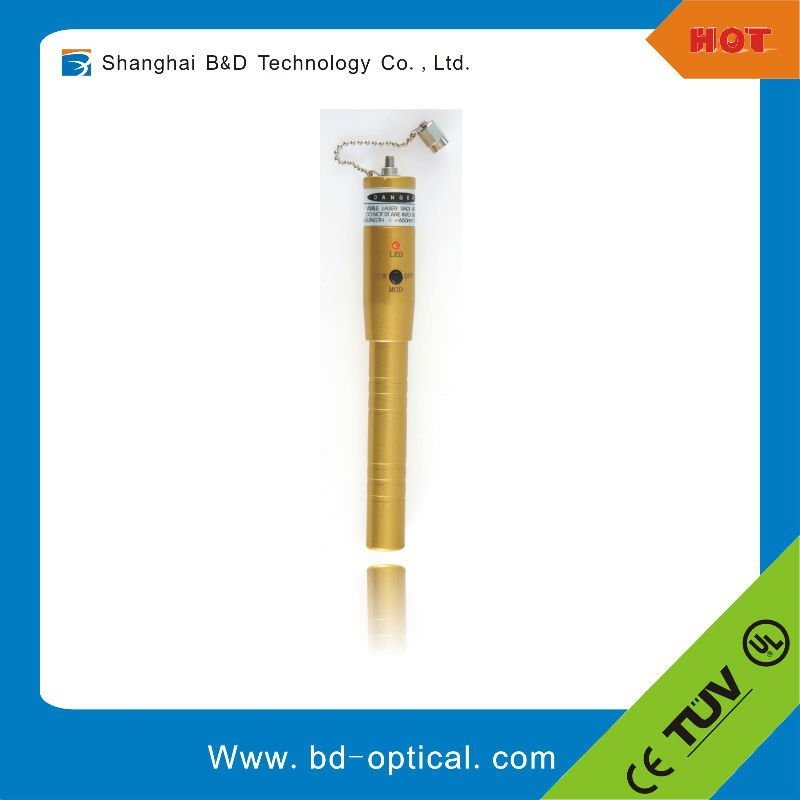

BD261 Visual Fault Locater
Description
BD261 Visual Fault Locator is visible red laser source for finding breaks and tight bends in optical fibers.
BD261 generates red laser and the visible red laser that escaping from optical fibers makes testing and finding breaks in LANs, verifying continuity, checking the validity of patch cables or looking for cracked fiber in splice cases, bad connectors, and tight bends in fiber cable.
Features
1. Easy to use
2. Fast response, no warm up
3. CW/1 Hz mod
4. 15Km for max measurement range
5. CE, FCC, FDA certificates
|
Type |
BD261A BD261B |
|
Wavelength |
650nm 635nm |
|
Emitter Type |
FP-LD |
|
Output Power |
1MW, 3MW, 5MW, 10MW, 15MW, |
|
Measurement distance |
Depending on the output power |
|
Modulation Frequencies |
CW 1Hz |
|
Connector Type |
FC/PC(Interchangeable SC, ST) |
|
Power Supply |
2pcs AA batteries |
|
Battery Life |
≥ 40hrs |
|
Operating Temperature |
-10-+ 50 degree |
|
Storage Temperature |
-20 -+70 degree |
|
Dimension |
185*25mm |
|
Weight |
162g |
Shanghai B&D company was founded in 2005, lies in Shanghai Zhangmu Hi-Tech developing center. B&D is a company focus on network Testing instrument research and developing, manufacturing and sales.
Shanghai B&D was certified by TUV on ISO9001 quality system and strictly exacted quality policy: Regard each step of operation processed and provide perfect product.
B&D major products are Network testing instruments and accessories, including optical Power Meter (hand-holder/desktop), Optical Light Source(hand-holder/desktop), Optical Fiber Identifier, visible laser source, optical Multi-Meter(loss tester), PON Optical power meters, OTDR, Media Converter, Patch Cords, PLC Splitters, Fused Couples, Attenuators, tool kits, Act, etc.
Currently B&D. Can provide not only standard product, but also design according to customer special requirement OEM & ODM. B&D will continually invest on manufacturing technology development, engineering, design &research and new products innovation, in order to provide high cost -performance product and finally solution. B&D consistently follow the principle GOOD FAITH, WIN-WIN to cooperate with global sales agency to create wonderful in photo-communication industry together.
