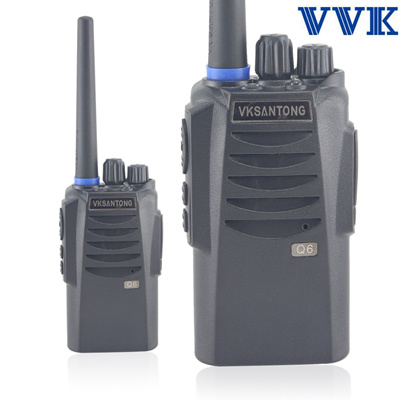

Vk-Q6 High Quality 2 Way Radio Handheld Type Two Way Radio

Product Specifications

Prod Model:	VK-Q6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Power:	5 Watts
Frequency Rage:	UHF 400-470MHz
Dimensions:	115X59X35mm
Condition:	New
Standard:	Standard
Screen:	Without Screen

Product Description

 Features
Max. output power: 5W
Frequency range: 400 - 470MHz
PC or manual program
BCL function
Battery saving
PPT ID function
Busy channel lock
DTMF code
Emergency alarm
High and low power switchover
Priory scanning function
Wide/narrow band selection
Time-out timer (TOT)
FM radio function
Different frequency setting
Reporting number command of English and Chinese
Dimensions: 115x59x35mm


Technical Parameters
General
Frequency Band	UHF
Frequency Range	400-470MHz
Channel Capacity	16
Channel Spacing	25KHz/12.5
Antenna Impedance	50Ω
Microphone Impedance	600Ω
Operating Voltage	7.4V DC±15%
Frequency Stability	±2.5ppm
Battery	1200mAh(Polymer Li-ion)
Compatible With American Military Standard(Mil-STD-810C/D/E)
Transmitter(EIA-RS 316B STANDARD)
RF Power Output	≤5W
Modulation Type	FM
Modulation Sensitivity	<15mV
Modulation Distortion	≤3%
Max Freq Deviation	≤5KHz
Occupied Bandwidth	≤16KHz
Modulation Feature	±3dB
Spurious Radiation	≤7.5μW
Adjacent Channel Power	≤-65dB
Receiver
Sensitivity(12db SINAD)	≤0.15μ(12dB S/N)
Squelch Sensitivity	≤0.1μV
Audio Power output	1W/16Ω
Audio Respond	+2-8
Operation Bandwidth	>5KHz
Co-channel Rejection	≥-8dB
Blocking	≥85dB
Adjacent Channel Selectivity	≥65dB
Standby Current	60mA,15mA
Spurious Rejection	≥60dB
Intermodulation Resistance	≥60dB


 Package inculding:
1*walkie talkie VK-Q6
1*1200mAh Li-ion battery pack
1*Charger
1*Antenna
1*Belt clip
1*User Manual
