Product Specifications
| Prod Model: |
GW-VM400C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Black: |
Black |
| Blue: |
Blue |
| Yellow: |
Yellow |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP55 |
| Certification: |
CCC |
Product Description

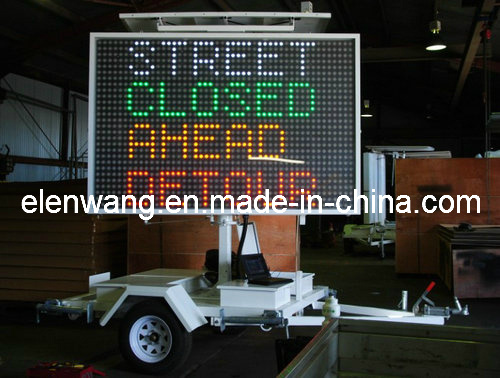

VMS LED arrow board sign trailer, GW-VM 400C
APPLICATIONS
Advanced warning to motorists of roadworks/conditions
School, Pedestrian or Roadwork Zones
Notification of road closures or detours
Used with Radar to display traffic speed
Promotion of Events, e. G Sporting, Festival
Product Advertising, e. G Car Yard, Property Development
FEATURES
Full Graphics
Non Glare, UV resistant polycarbonate
Highest Quality LED s
Solar Powered/Environmentally Friendly
Plug & Play controller and LED modules
SPECIFICATIONS & TECHNICAL DATA
Display
Display Type: LED Full Matrix
Display Size: 2730mm x 1850mm
Display Viewing Area: 2450mm x 1600mm
Matrix: 48 x 28, 4 X 5mm LED s per pixel ( GREEN, RED, AMBER, WHITE) or (GREEN, RED, AMBER, WHITE)
Enclosure: IP54 equivalent, front access
Screen: Non Glare UV polycarbonate
Photocell auto dimming
Trailer
L x W x H: 3950 X 2050 X 2700MM (with draw bar, fender)
Operating height: 3950mm
Rotating degree for message panel: 360
Draw bar length: A frame type 2200mm
Trailer has the brake system for the message panel, so it can stop on the certain position.
For corner jack stands: 15 inch, 3000LBS
Draw bar jack stand (with 6inch jockey wheel): 2000LBS
Coupler: 5000LBS; 50mm ball
Wheel type: 14 inch
Disc brake system for the wheel
Hydraulic function for operating message panel lift
Manual Hydraulic Backup
3mm steel check plate
Controller and Programming
PC for on site programming
Programming options: SMS, RSR232 Serial direct connect
Software
Windows Compliant Free automatic software updates! !
Predefined Images: 90
Radar: Radar logging / remote removal, logging speed data / time traffic count
Large Storage up to 100 individual messages with various page sizes
Power
Voltage: 12V
Solar Panels: 2 x 125 watt Panels
Batteries: 3 x 12Volt; 200AH deep cycle
Solar Controller: 30AMP
Operation on batteries/solar Indefinite under normal conditions
Optional Extras
SMS
3G GPS+INTERNET
INDUSTRIAL TOUCH MONITOR TABLET PC
BATTERY CHARGE
SPEED RADAR
SOLAR TILTING SYSTEM
