Product Specifications
| Prod Model: |
DXN4-T(Q) |
| Markets: |
Eastern Europe,Southeast Asia,Mid East |
| Task: |
Program |
| Structure: |
Combination |
| Signal: |
Continuous |
| Mathematical Model: |
Linear |
Product Description

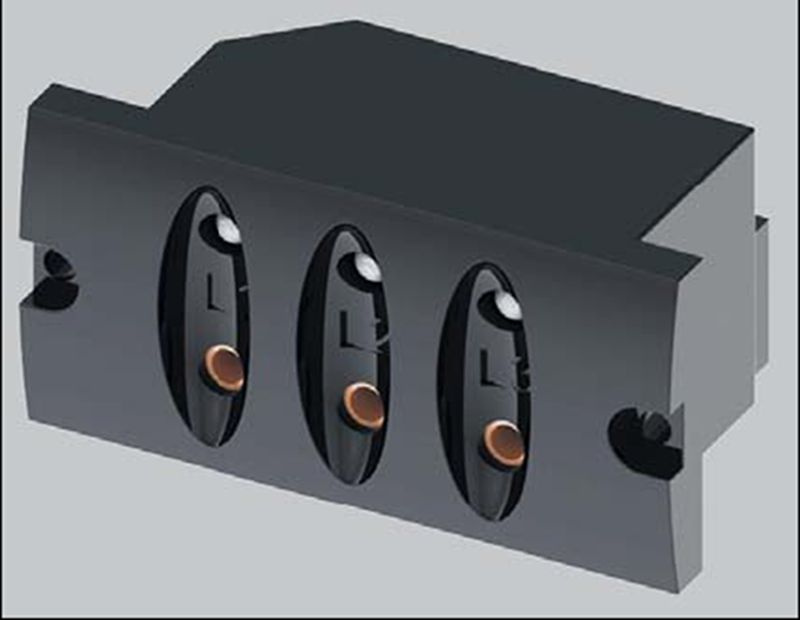

The purpose of the voltage presence indicating system (VPIS) is to provide information to operators about the voltage condition of the main circuit of the switchgear in which they are installed.
This system must be capacitively connected to main circuit via primary capacitor with capacitance within the range required.
The product performance is ensured in the nominal voltage range according to Standard DL/T 538-2006. Under extra bright illumination, it might be necessary to improve the visible perceptibility by additional means, for example to shadow the indication.
Our company was established in 1993, and we have many years of history in the electric power industry. Located near Shanghai, we enjoy convenient water, land and air transportation. Focus on production and sales of all range Medium Voltage Epoxy Resin Parts. A range of Bushings and Insulators designs can be produced to customers own requirements.
1. Epoxy Resin Post Insulators or Capacitive Divider Insulators for M. V. Indoor service and wall bushings.
2. Monoblock Bushing Plate for switchgears & transformer applications from 250AMP. To 5000 AMP
3. SF6 Breaker Interrupters Housings up to 33 KV system voltages
4. Epoxy Resin Cast Instrument Transformers for outdoor as well as indoor applications up to 66KV
5. Spout Bushings and CT Bushings
6. Pole Unit Moulding for Retrofit Circuit Breakers
7. Pole Housing for Pole Mounted Reclosers & Sectionalisers
8. Bushing insulators, with or without conductor for various applications in power generation or distribution, 12kV and 24kV Fuse Holder for RMU Switchgear
9. Full Automatic Re-closer with Pole Mounted Outdoor VCB (Vacuum Circuit Breakers).
10. SMC / DMC Components for On Load Tap Changer, Medium Voltage Switchgear & Transformer applications.
11. Stand off Insulators & Busbar support Insulators from Cycloaliphatic & Bisphenol Epoxy Resin system.
12. Vacuum interrupters for recloser: Rated voltage ranging in 12KV, 15.5KV, 27KV, and 38KV; Rated current from 400A to 630A; And rated short circuit breaking current from 10KA to 20KA.
13. Vacuum interrupters for VCB: Rated voltage ranging from 1.14KV to 72.5KV; Rated current ranging from 630A to 5000A; Rated short circuit breaking current ranging from 12.5KV to 8KA.
14. Vacuum interrupters for LBS: Rated voltage ranging from 7.2KV to 40.5KV; Rated current ranging from 630A to 1250A; Rated short time withstand current ranging from 12.5KA to 25KA.
