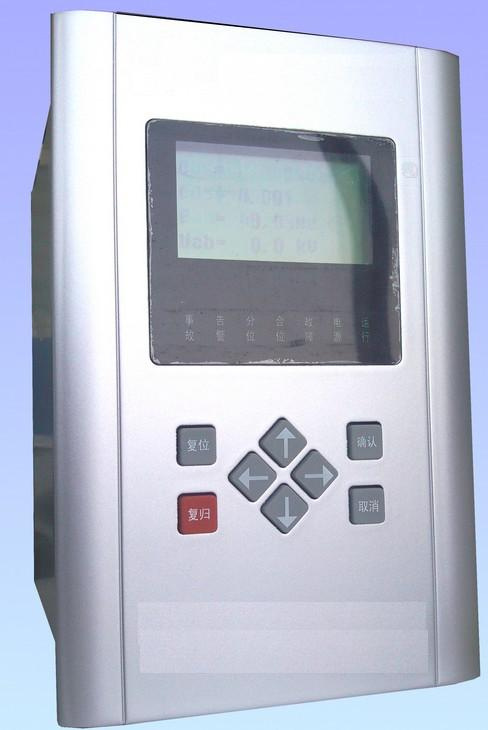

Product Specifications
| Prod Model: |
RCX-900 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Rated Voltage: |
10/6kv |
| Type: |
High-voltage |
| Installation: |
Indoor High-voltage |
Product Description
Application:
Suitable for 10/6KV and above transformer automatic on-load tap-changing and parallel capacitor switching; It can monitor two main transformers at the same time and realize voltage reactive power comprehensive regulation function. It can make capacitor grouping switching(12sets in 2 groups) or ungrouped switching. The device can be either incorporated in a single panel or separately installed.
Main function:
Control: I# transformer on-load tap-changing automatic regulation; I# capacitor automatic switching; II# transformer on-load tap-changing automatic regulation; II# capacitor automatic switching. Voltage regulation urgent stop(blocking on-load tap-changing).
Remote function:
Telemetering: I# transformer taps; II# transformer taps; I# transformer voltage qualified rate; II# transformer voltage qualified rate; I# transformer tapping frequency; II# transformer tapping frequency; I# capacitor bank switching frequency; II# capacitor bank switching frequency; U1AB, U1BC, U2AB, U2BC, I1A, I1C, I# transformer active power, reactive power and power factor. U3AB, U3BC, U4AB, U4BC, I3A, I3C, II# transformer active power, reactive power and power factor.
Remote signalling: Position of each capacitor of two capacitor banks.
Remote control: I# transformer stepping down and up, II# transformer stepping down and up, I# transformer urgent stop, II# transformer urgent stop, 6 capacitors of I# capacitor bank closing and tripping, 6 capacitors of II# capacitor bank closing and tripping.
Metering and monitoring----U1AB, U1BC, U2AB, U2BC, I1A, I1C, P1, Q1, Cos. 1, U3AB, U3BC, U4AB, U4BC, I3A, I3C, P2, Q2, Cos. 2.
Auxiliary----Fault wave recording.
Communication method:
485 communication; Ethernet and optical fiber
900 series microcomputer comprehensive protection device includes main transformer protection series, generator protection series, load protection series, auxiliary protection series and comprehensive protection series.
