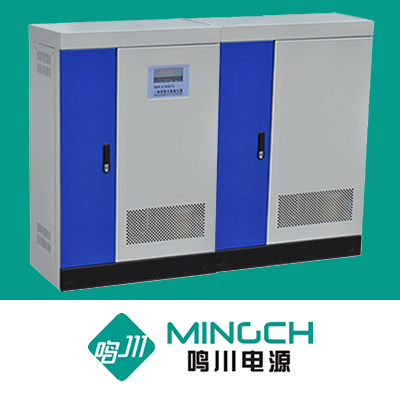

Voltage Regulator Stabilizer Monstat AVR Linar Conditioner
Product Specifications
| Prod Model: |
SBW-F-600KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Input Voltage: |
280V-480V |
| Output Voltage: |
380V+-(1%-5%) |
| Protection: |
Surge Suppression/Over Vol/Over Load/Short Circuit |
| After Sales Service: |
Yes |
| Custom Made: |
Yes |
| Package: |
Free Fumigation Export Standard Package |
| Current Type: |
AC |
| Phase: |
Three Phase |
| Usage: |
SBW |
Product Description
SBW-Z series intelligent AC voltage regulator is required when the voltage changed due to either the power supply or the load of the system. The voltage regulator can smooth the voltage. Higher capacity, more efficient, no waveform distortion, voltage adjusted more smoothly, these are the fearures this model compared with other models. They can be widely used. With the protection of overload, the voltage regulator can work long-time continusly. There is mannual and auto switch. Small size body, light weight, easy assemble, function properly (Digital meter and moving coil meter optional. )
|
Model No. |
SBW-f-600K |
|
Output power(kVA) |
600 |
|
Size(cm) |
100*80*200*2 |
|
Net weight(kg) |
2200 |
|
Package |
2 carbinet |
|
Input Voltage |
280V-480V(wire voltage) |
|
Output Voltage |
Three phase 380V+-(1%-5%) |
|
Output precision |
1-5%(Adjustable) |
|
Frequency |
50Hz/60Hz |
|
Efficiency |
≥95%(Powere50kvA and above) |
|
Response time |
≤1.5S |
|
Ambient temp |
-10°C~+40°C |
|
Insulation resistance |
≥5MΩ |
|
Overload durability |
Double standard current last 1 minute |
|
Waveform distortion |
No additional waveform distortion |
|
Protection |
Overvoltage overcurrent ( Phase sequence,phase lack, under voltage optional ) |
Yueqing Mingchuan Electric Co., Ltd is a manufacturer specialized in
development, production, marketing as a body to produce electric power voltage regulators/stabilizers. since origination, it has been persisting in taking the science and technology as the forerunner, the abundant technique as a backing, and positively introducing the overseas advanced technology, unceasingly improve and consummate the products, many years specialized management, our products has been the best-selling in own Chinese nation, meanwhile export to Bangladesh, Mayanmar. India, Russia, Indonesia, Thailand and other countries in southeast Asia and Africa area, they are highly praised and welcomed by foreign customers.
Our company has been persisting in regarding"being realistic, innovation, development"as the operation ideas, combining with today's modern science and technology along with economical high speed development, the applications of information technique and micro electron technique as well as pretty massively power units has more and more serious requirements on the quality of power supply, under these bad extremely unbalanced situations of our nation AC electrical netwok constructions and developments, in addition, electric quantity supply not well, therefore a new series electric power voltage regulator products are reserched and developed accordingly will satisfied each kind of special current equipements and some places that need voltage regulator, our company products are widely used in the situations where all need normal voltage guaranteed, such as the industry and mining enterprises, the textile machinery, the printing packing, the petroleum chemical industry, the school, the market, the elevator, the post and telecommunication correspondence, and the medical machinery etc.
Yueqing Mingchuan Electric Co., Ltd promises"taking the good faith as base, the long-term cooperation as target", promptly to help you exclude the difficulty and anxiety, Yueqing Mingchuan Electric Co., Ltd sincerely expects for your joins, sharing double-win joyfully.
