Product Specifications
| Prod Model: |
JDZ-11J |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Indoor: |
PT |
| Vt: |
Voltage Transformer |
| Instrument Transformer: |
Vt/PT |
| 11kv: |
Double Pole Potential |
| Application: |
Lighting |
| Type: |
Voltage Transformer |
| Phase: |
Single |
Product Description

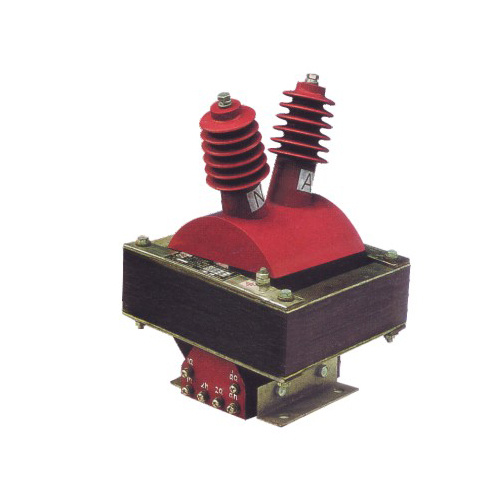

JDZ-11J voltage transformers/PT/VT
Epoxy resin casting and half-enclosed construction,
Used indoor for measuring current, electric energy and protective relaying in single-phase or three-phase AC circuit with the frequency 50Hz or 60Hz and highest voltage for equipement 12kV.
Technical Date
1.Installation Site Indoor
2.Rated Frequency 50/60Hz
3.Load power factor COS=0.8(Lagging)
4.Technical Standard accords with IEC60044-2:2003 IEC61869-1&3
Specification
| Type | Rate primary Voltage
(kV) | Rate Secondary Voltage
(kV) | Accuracy Classes combination | Rated output(VA) | Thermal limited Output
(VA) | Rated Insulation Level
(kV) |
| JDZ-11J | 11 | 0.11 | 0.2 | 50 | 800 | 12/28/75 |
| 0.5 | 100 |
| 1 | 200 |
| 0.11/0.11 | 0.2/0.2 | 30/30 | 400/400 |
| 0.2/0.5 | 30/50 |
| 0.11/0.22 | 0.2/0.2/6P(3P) | 25/25/300 | 500 |
| 0.2/0.5/6P(3P) | 25/50/500 |
| JDZJ-11J | 11/1.732 | 0.1/1.73/0.11/3 | 0.2/6P(3p) | 40/150 | 800 | 12/28/75 |
| 0.5/6P(3p) | 80/150 |
| 1/6P(3p) | 150/150 |
| 0.1/1.732/0.11/1.732/0.11/3 | 0.2/0.2/6p(3p) | 20/20/150 | 400/400 |
| 0.2/0.5/6p(3P) | 20/40/150 |
| 0.5/0.5/6P(3P) | 40/40/150 |
