Product Specifications
| Prod Model: |
112 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Transmission Channel: |
Cable Modem |
| Signal Type: |
Band Modem |
| Clip Function: |
Semi Soft Modem |
| Installation: |
Rack-Mounted |
| Type: |
Internal |
| Interface Type: |
RS-232 |
| Transmission Rate: |
768Kbps |
| Application: |
Household |
| Transport Protocols: |
Data Compression Protocols |
| Transmission Mode: |
Voice Modem |
Product Description

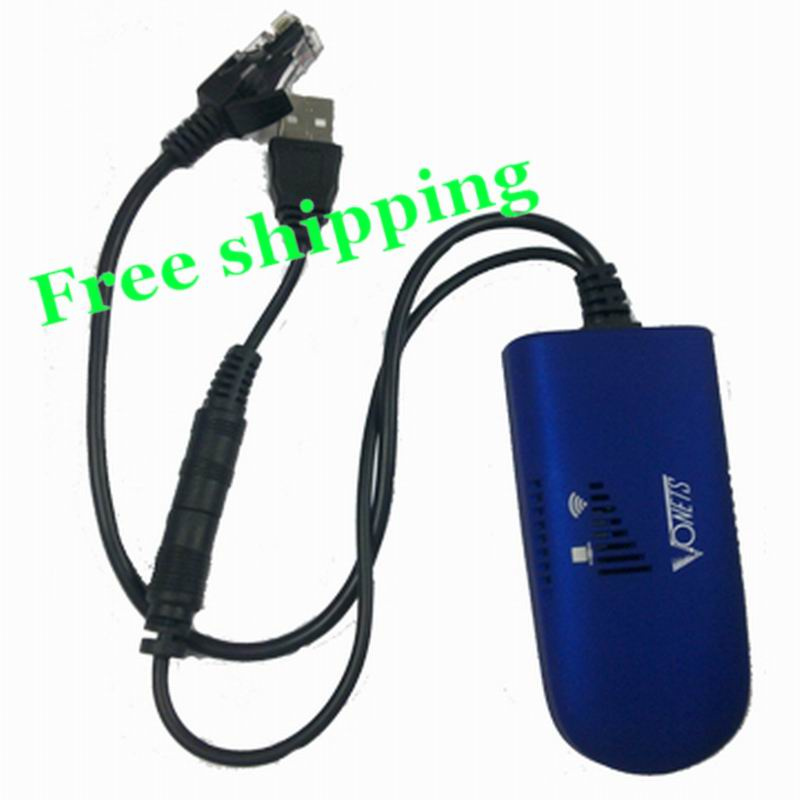

Product name: Wifi bridge
Model name: VAP11G
Power supply: DC 5V supply by PC
Radio Technology: IEEE 802.11B/G
Operation Frequency: 802.11b: DSSS(CCK, DQPSK, DBPSK)
802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK)
Antenna Type: Integral patch antenna, Maximum Gain 0dBi
RF Power output: 19.24dBm(maximum eirp)
Dimension: 15cm*10cm*2cm
Weight: 0.12kg
Quickview
This item can operate with any ethernet-enabled devices, such as desktop computer, network printer, laptop computer, Router, ADSL, or a security camera. It is operating system independent and can be used with Windows XP, Windows 7, Windows 2003, Windows Vistaoperating system. By applying this powerful and high speed networking solution, you just need to plug this adapter into AC power socket and then connect it to PC's Ethernet port. Through the wider bandwidth support, efficient data flow streaming becomes the reality for people and led human in the real digital life style.
Features:
* Support WiFi model.
* Operating system independent.
* Can be used with Windows, XP, Windows 7, Windows 2003, Windows Vista operating system.
* 10/100 fast Ethernet interface connection.
* Physical rate up to 85Mbps or 200Mbps according to different item number
* Safe external, standard RJ45 ethernet connect, can be used for any IP access, need no driver.
* The new addition of a USB wire is to connect a computer (desktop, laptop) for power, need no extra power adapter.
* IEEE 802.11B/G compliant.
* Support any VoIP ATAs and VoIP Phones.
* Support WEP (64 bit), WEP (128 bit), WPA, WPA2 Security access.
* Support SSID broadcast.
* Three parallel DC power supply, take electrical interface, convenient for customer to share power adapter with IP devices.
* The barrier-free wifi transmission distance is 100 meters.
* High stability, and excellent transmission performance of wireless networks to make sure the IP monitoring solutions to the perfect implementation.
* Small and light weight, easy to hang on the the wall such as the location that the wire should not be.
* It can be used for any wireless network product, such as wireless router, and IP camera.
*Ideal for:
1) Small business networking;
2) Internet home networking, game consoles, home appliance connection;
3) Extends the range of your wireless devices;
4) To eliminate long cable runs through your home;
5) IPTV/IP camera/net game box/net receiver/video streaming application.
Specifications:
Color: Blue
Housing: Plastics
Input Voltage: DC5V-15V
Consumed Power: Less than 1.5W
Frequency: 2.4Ghz
Support Wifi model: AP Client
Three parallel DC power interface: DC2.5 power hole, DC2.0 power plug, USB interface (for taking electrical)
Transmission Distance Indoor: 30m
Size: 1.5*4.5*9cm
Weight: 75g
Package including:
1 * Wireless WIFI Dongle Bridge IEEE 802.11B/G Router/IP Camera/VoIP/PSS/Xbox
1 * 10/100 base Ethernet cable header
1 * DC-2.0 female power port for power in
1 * DC-2.0 male power port for power out
