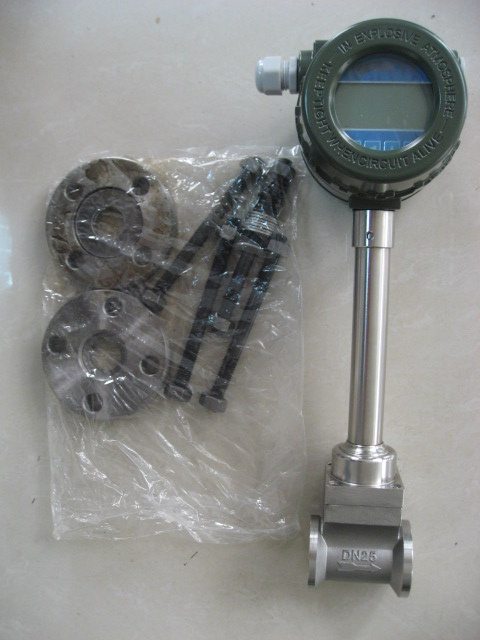

Vortex Flow Meter for Gas or Liquid

Vortex Flow Meter for Gas or Liquid
Price: Negotiable/Piece
Trade Terms: FOB,EXW
Min Order: 1/Piece
Pay Type: T/T

Product Specifications

Prod Model: CX
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Maintenance: Less and Easy
Quality: World-Class
Exported: More 80 Countries
Experience: More 20 Years
Price: Competitive
Type: Vortex Flow Meter
Accuracy: >?à1%
Measuring Media: Liquid
Measuring Principle: Mechanics
Size: DN100-500
Main Application: Corrosive Liquid/Gas

Product Description

Piezoelectric / capacitance type vortex flow meter

Working principle

To install a vortex generator(bluff body)in the fluid,which can produces regular vortex at both
sides of the vortex generator altematively.Such vortex is called Karman Vortex.Vortex trains are
asymmetrically arranged at the downstream of the vortex geberator. Suppose the generating
frequency of the vortex is f,the average speed of the incoming flow of the tested medium is V,the
head-on width of the vortex generator is d,and the diameter of the flowmeter is D,and base on the
principles of Karman Vortex,the following relations will be obtained:

Main technical

Nominal diameter(mm):
25,40,50,65,80,100,125,150,200,250,300,(300~1000
Insert type)

Nominal pressure (MPa):
DN25-DN200 4.0(>4.0 Supply agreement),DN250-DN300 1.6(>1.6

Note: (300) to (1000) diameter for insertion type
Meter diameter
(mm)
LiquidGas
Measuring range
(m3/h)
Output frequency
range(Hz)
Measuring range
(m3/h)
Output frequency
range(Hz)
251.2-1625-3368.8-55190-1140
402-4010-20027-205140-1040
503-608-16035-38094-1020
806.5-1304.1-8286-110055-690
10015-2204.7-69133-170042-536
15030-4502.8-43347-400033-380
20045-8002-31560-800022-315
25065-12501.5-25890 -1100018-221
30095-20001.2-241360-1800016-213
(300)100-15005.5-871560-1560085-880
(400)180-30005.6-872750-2700085-880
(500)300-45005.6-884300-4300085-880
(600)450-65005.7-896100-6100085-880
(800)750-100005.7-8811000-11000085-880
(1000)1200-17005.8-8817000-17000085-880
>(1000)Agreement
Agreement
Cixi flowmeter Co., Ltd. Was established in 2008 and since then has been dedicating itself to research and manufacture of various kinds of flowmeter. With sophisticated experience in technology and management, CIXI Flowmeter has made a name for itself as an excellent manufacturer of various kinds of flowmeter. In 2007, we have especially set up Shanghai Cixi Instrument Co. Ltd for handling the deals of Export.

Thanks to outstanding performance of products, CIXI Flowmeters are being applied in more and more fields where there' S liquid to measure. CIXI Flowmeters have found users in many countries besides China, such as Malaysia, India, Thailand, Vietnam, South Africa and so on. Increasing number of users are finding that CIXI Flowmeter are kind of product with super performance and reasonable price.
