Product Specifications
| Prod Model: |
FNS-B75-AT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Wired |
| Application: |
SOHO |
| Transfer Rate: |
10/100/1000Mbps |
Product Description

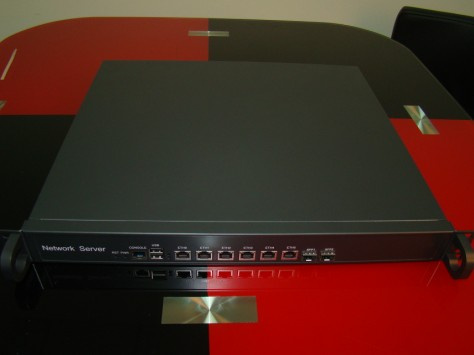

VPN Firewall (FNS-B75-AT)
VPN Firewall with 2 SFP(FNS-B75-AT)
Optional SFP Motherboard(ITX-B75-AT)
Firewall,Router Mainboard
1.MotherboardsWithOUT 2 SFP
2.MotherboardsWith 2 SFP(INTEL I350)
Barebone1U PC CASE,PSU,
MOTHERBOARD Without CPU,With SFP.
Option(memory)RAM NB DDR3 2GB
Option(Storage)SSD MSATA 8 GB
Full Machine
Document BottomInclude all component without CPU
ITX-B75-AT
The interface distribution image:
|
Embedded motherboard specifications |
|
Model |
ITX-B75-AT |
graphic display |
Depending on the CPU |
|
Processor |
LGA1155 CPU Optional |
express card |
1 SIM Slot |
|
Onboard MINI_PCIE |
2 |
|
Chipset |
Intel B75 |
Onboard serial ATA |
4 SATA port |
|
System Memory |
2*SO DIMM DDR3 1333MHz |
Onboard LAN |
6 Intel 82574,10/100/1000M
Ethernet Controller
2 Optical Fiber INTEL I350 |
|
Max support 16GB Memory |
Onboard Sound chip |
ALC662 2/4/5.1 Sound
channel output |
|
Front I/O interface |
2 set of USB pin
1 fan connector to connect to
the CPU and system
1 set of front sound pin
1 set of serial port pin
CF card slot
1 1X12PIN VGA pin.
1 set of printer pin
1 set of PS2 pin
|
Rear I/O interface |
2 USB2.0 port
1 COM port
6 LAN port
|
System monitoring and
management |
Wake on LAN
System power management
Management of temperature,
voltage management
Fan speed monitoring |
|
BIOS |
AMIBIOS
4/8Mbit Flash memory |
Work environment humidity |
0% ~ 95% (relative humidity,
no condensation) |
|
Main board structure |
MINI-ITX (6) layer PCB
230mm x 230mm |
|
operating system |
Windows XP, Windows 2000,Linux, Win CE, |
Working environment
temperature |
0°C ~ 50°C |
Special performance |
NO |
