Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd. >> Vulcanizer (XLB-400*400)

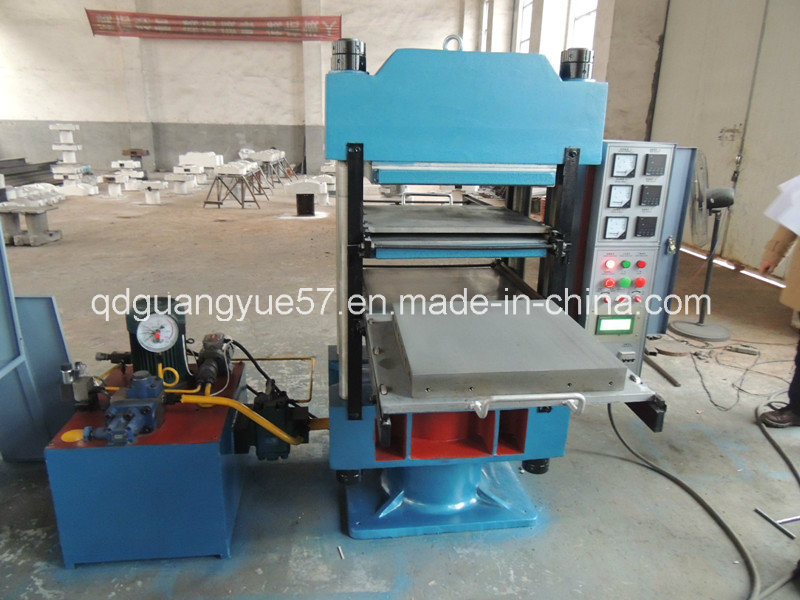

Vulcanizer (XLB-400*400)

Name: Vulcanizer (XLB-400*400)
Brand: china-manufacturer-directory.com
SKU: 690188045
Availability: InStock
Rating: 4.4 (55 reviews)

Supplier:	Qingdao Guangyue Rubber Machinery Manufacturing Co., Ltd.
Price:	US $ 3000-40000/Set
Min Order:	1/Set
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	XLB400*400
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Advantage:	No Leakage of Oil
Plate Size:	Xlb400*400
Type:	General Rubber Machinery
Type Of General Rubber Machinery:	Rubber Vulcanizer
Weight:	<50 tons
Voltage:	380V
Certification:	CE, ISO

Product Description

1. Application:
This vulcanizing machine is used to make all kinds of vulcanized mould, rubber products, plastics products, and testing pieces used by institute and university.
2. Brief Introduction:
Being a column structure and downward pressing type, this machine is equipped with a kind of duplex oil pump, directly driven by a motor as single drive. The motor is started by the magnetic starter with a thermal relay as the protection device. When the motor is overloaded or under trouble, it will automatically stop.

Parameters/version	XLB3503502	XLB4004002	XLB5005002	XLB6006002/4	XLB7508502	XLB100010002
Mould closing force	0.25	0.5	0.8	1.0	1.6	2.5
Hot plate spacing	125	125	125	125	125	200
Hot plate layer	2	2	2	2/4	2	2
Plunger stroke	250	250	250	250/500	250	400
Heating way	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/stream	Electricity/Stream	Electricity/stream
Main motor power	2.2	2.2	2.2	2.2	3	5.5
The thermal power	2.4kw/board	3kw/board	3	7.5kw/board	9kw/board	10.8kw/board
Size(lwh)	14504001350	16004001440	14506901818	18807801660	210010101900	24009602500
Weight(kg)	1200	1500	1700	2500/3100	3560/4300	8300
Platen unit area pressure	2.04	3.13	2.52	2.78	2.51	2.5

The company owns powerful technical strength, advanced technics, the best design and strict quality guarantee system, which owns a high repution in China rubber machinery industry.

The main products are plate vulcanizing press, open rubber mixing mill, banbury intensive kneader, extruder, rubber and reclaimed rubber machinery, within the (outside) tires complete set of machinery.The products have been sold to more than 20 provinces and cities in China and have been exported to more than 10 countries and areas.All of the products are designed visually by three-dimension CAD design, quickly built module, limited element analysis, analogue action and interfering inspection.The combination of three-dimension CAD system and internet guarantees the synchronization with internatinal advanced technology.The combination of three-dimension CAD and CNC numeral process center realizes the transit from traditional manufacture to modern three-dimension manufacture.At the same time, the company keeps good contact with several universities and research institutes.

The company takes"To live by quality, To develop by reputation, To innovate by science and technology, To keep improving all the time"as managing ideas, and insists on the principle of "Quality is the first, Reputation is the?First, Client is the first" that will provide you the best service.
