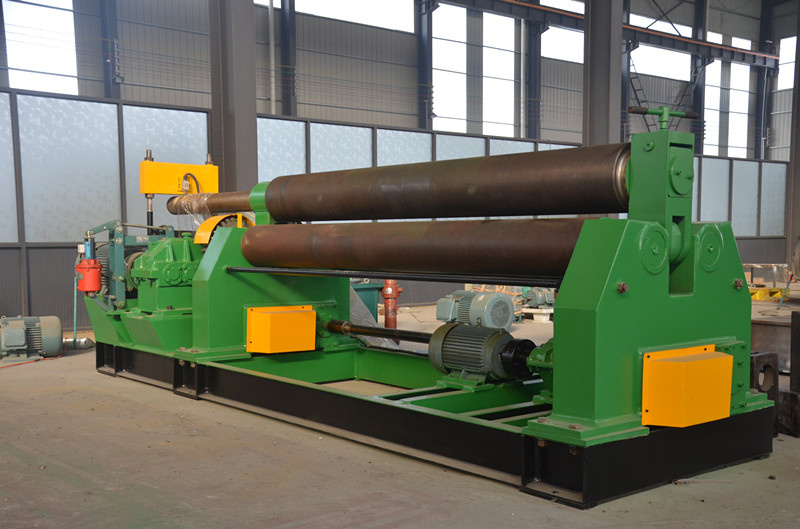

W11 Mechanical 3-Roller Symmetrical Plate Roll Machine Juli Brand

Name: W11 Mechanical 3-Roller Symmetrical Plate Roll Machine Juli Brand
Brand: china-manufacturer-directory.com
SKU: 733532445
Availability: InStock
Rating: 4.6 (85 reviews)

Price:	US $ 5000-100000/Piece
Trade Terms:	FOB,CIF,DAP
Min Order:	1SET
Pay Type:	L/C,T/T,Western Union

Contact Supplier

Showroom Product Company Profile

1 Plate-rolling form
2 Mechanical driven
3 Three drive rollers
4 High productivity
5 Easy to operate
6 Excellent product precision
7 Rich bending shapes.
8 CNC control
9 Best after-sale
Vertically in the center between the two lower rollers, which is achieved through the drive of the screw, the nuts, the worm and the lead screw, the two lower rollers rotates, and provides the plate materials with torque through the engagement of the output gear of the moderator with the gear of the lower rollers. The disadvantage of the machine is that the ends of the plate materials need to have the help from other equipment for prebending.

Extra ServicesExported to Countries USA, Australia, Brazil, Saudi Arabia, etc.
Material of the roller: 42CrMo
Transducer: Omron
Control: CNC
Pump: Gear pump
PLC: MITSUBISHI
Operation: Touch Screen
Seal parts: AILATE
Axletree: Wafangdian axletree
System: Hydraulic
Seal: NDK

Specification	Max Thickness of coiled plate (mm)	Max width of coiled plate (mm)	Yielding limit of sheet metal(mpa)	Coiling speed(m/min)	Min full loading dismeterof coiled plate(mm)	Diameter of top shaft(mm)	Diameter of bottom shaft(mm)	Central distance between bottom shaft(mm)	Motor power(kw)
W11-3×3100	3	3150	245	4.5	450	180	140	220	4
W11-3×2000	3	2000	245	4	350	165	140	160	4
W11-4×3100	4	3100	245	4.5	450	180	160	220	5.5
W11-4×1500	4	1500	245	5	400	180	160	200	4
W11-4×2000	4	2000	245	4	450	160	140	220	4
W11-4×2500	4	2500	245	4.5	450	180	150	220	4
W11-4×4000	4	4000	245	4	600	260	180	259	5.5
W11-6×1500	6	1500	245	5	450	185	170	220	4
W11-6×2000	6	2000	245	4	400	190	170	250	5.5
W11-6×2500	6	2500	245	4.5	500	220	170	280	5.5
W11-6×3000	6	3000	245	4	600	240	220	280	7.5
W11-6×3200	6	3200	245	4	600	240	220	280	7.5
W11-6×4000	6	4000	245	4	600	250	190	259	7.5
W11-3×3200	3	3200	245	4.5	450	185	170	250	5.5
W11-12×2000	12	2000	245	4	600	240	180	280	7.5
W11-8×1000	8	1000	245	4	250	150	135	220	4
W11-8×2000	8	2000	245	4	500	200	170	260	5.5
W11-8×2500	8	2500	245	4	600	240	180	280	7.5
W11-8×3000	8	3000	245	4	400	250	200	280	7.5
W11-8×3100	8	3100	245	4	400	250	200	280	7.5
W11-8×3200	8	3200	245	4	400	260	200	280	7.5
W11-8×5000	8	5000	245	4	500	320	240	360	11
W11-10×1500	10	1500	245	4	550	185	170	260	5.5
W11-10×2000	10	2000	245	4	550	220	180	280	7.5
W11-10×3000	10	3000	245	4	500	260	240	360	11
W11-10×3200	10	3200	245	4	800	280	240	359	11
W11-10×4000	10	4000	245	4	800	340	260	430	15

Prod Model:	w11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:Customized:	Hydraulic Pump: Shanghai Chengjie
After-Sales Service Provided: Engineers:	Power: Hydraulic
Forging Forming Method:	Mold Forging

Our company is specialized in producing series of industrial sweeper machine, shearing machine, bending machine, rolling machine and plate unrolling leveling shearing production line of "Juli" brand. The products are widely applied to light industry, aviation industry, marine industry, metallurgy, instrument industry, electrical equipment, stainless steel product, construction and decoration industry, etc. The products are exported to Europe, Southeast Asia, the Middle East, etc.

Our company has several top-class experts with professional knowledge in cutting, bending, rolling and plate unrolling leveling shearing production line. The quality and technology are ranked as the first class in this field. Our company is constantly developing the leading-edge products with advanced consciousness, new concept, innovation and the overseas technology, which will lay the solid foundation for "Juli" to be a famous brand in the world in machine tool industry. All the staff members are devoted themselves to serving the company with meticulous professional dedication and solidarity. We are sincerely looking forward to cooperating with friends all over the world to create greater success.

Welcome you to visit at any time.
