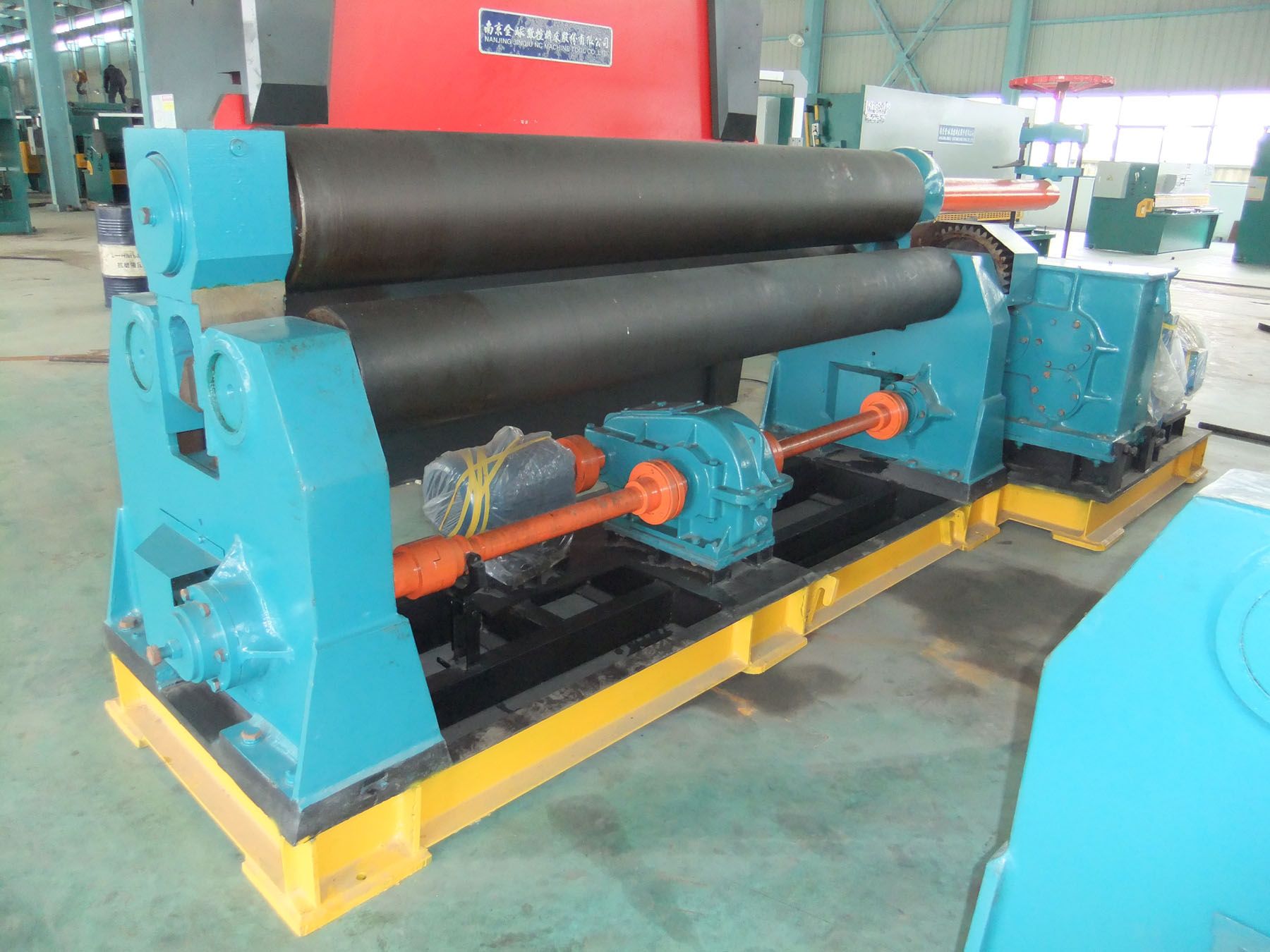

W11 Series 3-Roll Rolling Machine (8*2000)

Name: W11 Series 3-Roll Rolling Machine (8*2000)
Brand: china-manufacturer-directory.com
SKU: 665159042
Availability: InStock
Rating: 4.6 (34 reviews)

Supplier:	Nanjing Jinqiu CNC Machine Tool Co., Ltd.
Price:	Negotiable
Min Order:	1/Set
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	W11
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Attribute (E. G.: Size):	Value (E. G.: 12 Inches)
Type:	Steel Rolling Equipment

Product Description

3-roll Rolling machine
Three triggers are the meatless plank material flections, roll a circle and correct etc. The orthopedics machine, be applicable to a shipbuilding, boiler, aviation, the water electricity, decorate extensively, the metals structure etc. Profession, our company produce of book trigger series product specification is well-found, the species is diverse, the structure is reasonable, technique forerunner, provide a satisfied product for the customers.

Type	Max plate thickness (mm)	Max plate (mm)	plate limit yielding	Volume plate speed	Minimum Dia	Upper roller Dia	Lower roller Dia	Centre Distance	Power	Weight (t)	Dimensions
W11-6× 1500	6	1500	265	7.16	380	180	160	210	5.5	2.6	3310× 1210× 1330
W11-6× 2000	6	2000	265	7.16	380	180	160	220	5.5	3.1	3810× 1210× 1330
W11-6× 2500	6	2500	265	7.16	500	190	170	260	7.5	4.6	4310× 1210× 1330
W11-6× 3200	6	3200	265	6.46	500	240	200	310	11	7.2	5200× 1400× 1200
W11-8× 2000	8	2000	265	7.16	450	190	170	260	7.5	4.1	3810× 1210× 1330
W11-8× 2500	8	2500	265	6.46	500	240	200	310	11	6.7	4500× 1420× 1610
W11-12× 2000	12	2000	265	6.46	500	240	200	310	11	6.7	4050× 1420× 1610
W11-12× 2500	12	2500	265	5	750	260	220	330	15	6.3	5000× 1500× 1300
W11-12× 3000	12	3000	265	5	750	280	240	360	22	12.1	5500× 1500× 1300
W11-16× 2000	16	2000	265	5	750	260	220	330	15	5.8	4500× 1500× 1300
W11-16× 2500	16	2500	265	5	750	280	240	360	22	8.5	5000× 1500× 1300
W11-16× 3200	16	3200	265	5	900	340	280	440	30	15.6	6300× 1600× 1900
W11-20× 2000	20	2000	265	5	750	280	240	360	22	7.8	4500× 1500× 1300
W11-20× 2500	20	2500	265	5	850	340	280	440	30	14.7	5600× 1600× 1900
W11-25× 2000	25	2000	265	5	850	340	280	440	30	13.2	5100× 1600× 1900
W11-25× 2500	25	2500	265	4.5	900	380	300	490	37	24.7	6000× 4600× 2150
W11-30× 2000	30	2000	265	4.5	900	380	300	490	37	23	5500× 1460× 2150
W11-30× 2500	30	2500	265	4.34	1100	460	380	600	45	25	6900× 2300× 2800
W11-30× 3000	30	3000	265	5	1200	480	400	600	45	32	7400× 2300× 2600
W11-30× 3200	30	3200	265	5	1200	500	400	600	45	35.2	7600× 2300× 2600
W11-40× 2000	40	2000	265	5	1200	480	400	600	45	28.7	6400× 2300× 2800
W11-40× 2500	40	2500	265	5	1400	500	400	600	45	34.2	6900× 2300× 2800
W11-40× 3000	40	3000	265	4.37	1600	500	425	650	60	36	8000× 1980× 2250
W11-50× 3000	50	3000	265	4	2000	600	480	700	75	71.5	9900× 3100× 3500
W11-60× 3000	60	3000	265	4	2000	700	560	800	90	87	9700× 3200× 2700

Nanjing Jinqiu CNC Machine Tool Co., Ltd. is one of the leading manufacturers of metal sheet forming machines and equipment. Our main products are WC67Y and WC67K plate press brakes, WE67K electro-hydraulic synchronous press brakes, QC12Y and QC12K plate shearing machines, QC11K and LC CNC hydraulkic guilltione shearing machines, and W11 type three-rolls mechanical rolling machines.

Our products are widely used in light industry, aviation, ship, metallurgy, electronic equipment and stainless steel products. Our main markets are in Europe and North America countries, such as Germany, Italy, France, Spain, Belgium, Greece, the USA and Canada.

Our products have won national export certificate and ISO9001: 2000 quality system certificate issued by Chinese Quality Attestation Center. We are always developing new products and have achieved great success in forging and stamping industry. We will work harder to turn out more high technology products to satisfy customers' demands.

Focusing on the exportation business of our machines, we would like to supply our fast communication and service for your kind inquiries. Besides, we always welcome relative business partners and companies to be our distributors in your market to reach our mutual benefits.
