Product Specifications
Prod Model: |
W12-25*2500 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Automation: |
Manual |
Type For Cutting Machine: |
Plasma Cutting Machine |
Type For Fold-bending Machine: |
Hydraulic Fold-bend Machine |
Application: |
Machinery & Hardware |
Type: |
Press Brake |
Product Description

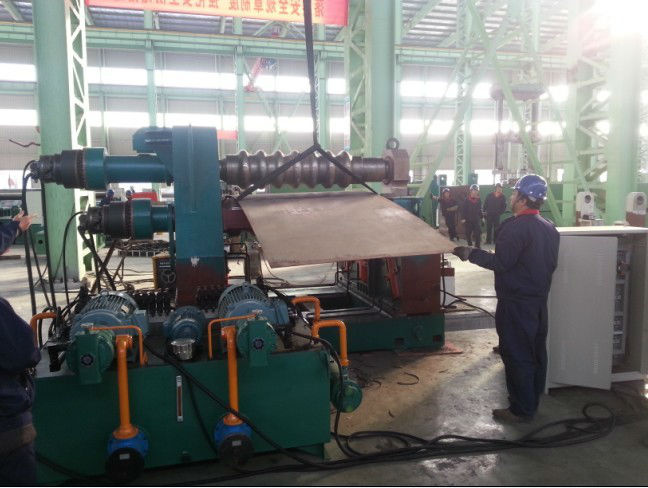

This belongs to four roller plate rolling machine, up roller is fixed and it is the main drive, hydraulic motor driven by variable speed drive gear up and down roller belt drive, to provide torque for the roll sheet; Under the roller moves vertically through the hydraulic pressure acting on the piston of hydraulic cylinder obtained in order to clamp plate for hydraulic transmission; The down roll of the sides with side roller and cylinder driven by oil. The machine advantage of end plate bending (pre-bending) and rolling can be conducted on the same machine
3. Structure and main parts:
This equipment composed of work frame, upper roll device, main drive device, down roll device, side roll device, overturn device, hydraulic system (parts), electricity system (parts), and lubricate device.
3-1: Work frame:
Body from the base, a fixed side frame and the tip side of the rack, and each part is steel welded structure.
3-2: Upper roll device:
The up roller gear drive from the main for turning, the ends of the SP-1 bearing support, drive-side through the flat key, off the main drive gear and connect the device to transfer torque, tip-side with the protection of Steel.
The material of the up roller is 42CrMo; Heat hardening is HB220-300.
3-3: Main drive device:
By the Hydraulic motor, three speed reduction gear, transmission torque to the up roller. This device includes motors and speed reduction gear box. Power supply is 380V/50Hz.
3-4: Down roller device:
Down roller is alloy steel 45#, heat treatment hardening is HB220-300
3-5: Side roller device:
Side of the roller bearing in the radial bearing pedestal, bearing on both sides of the rack mounted inside the track, the bottom of the piston and oil cylinder connected. Bearing in the liquid under pressure, can be tilted up and down along the rail, the size of the piston rod of the thrust force according to the needs of steel plate by the hydraulic system pressure control valve be adjusted. The side roll quality alloy steel, heat treatment hardening is HB220-280.
.
3-6: Overturn device:
Overturn device through the oil cylinder, hinges torn off and driving overturned on a roller bearing aircraft overturned in order to remove products.
3-7: Hydraulic system (parts):
Hydraulic system consists of gear pump, valve, fluid connectors, hydraulic accessories. Superposition valve series hydraulic valves used, piping layout simple and easy to maintain debugging.
System consists of three circuit composed of overpressure protection and pressure control loops, synchronization loop, speed loop.
Loop through the main relief valve pressure regulator conditioning system working pressure. System working pressure 19.5Mpa.
3-8: Electricity system (parts)
Electrical control system includes the electrical box, operation control panel, hand-held button. Main switch with short circuit protection and the main motor overload protection. Reversible motor contactor control by the exchange; Control circuit is controlled by PLC programmable controller system, relay less reliable action and long life. Control cabinet with the completion of the process of rolling all products control buttons, lights, etc. To the operation of the machine control and status control.
3-9: Lubricate device:
The main and side roller drive gear reducer with oil pool splash lubrication, cooling, when the ambient temperature: -10 ~ 0 degree use of N46, N68 lubricant, when the temperature: 0 ~ 40 degree use of N68, N100, N150, N220 oil and other lubrication points manually lubricating oil gun, the working medium for the calendar grease ZGN40-1 (winter use) and ZGN40-2 (summer only) fuel system of work for the class 1 or 2 times.
Machine model |
W12-20×2500 |
W12-25×2500 |
Material yield limit |
σs≤245MPa |
σs≤245MPa |
Max. bending thickness |
20mm |
25mm |
Max pre-bending thickness |
16mm |
20mm |
Max bending width |
2500mm |
2500mm |
Length of working rollers |
2550mm |
2600mm |
Min. reel diameter with Max. size |
Φ700mm |
Φ800mm |
Top roller diameter |
Φ380mm |
Φ420mm |
Bottom roller diameter |
Φ320mm±3 |
Φ400mm±3 |
Side roller diameter |
Φ280mm±3 |
Φ360mm±3 |
Bending speed |
4m/min |
4m/min |
Lifting mode of bottom roller |
Hydraulic |
Hydraulic |
Roller material |
42CrMo |
42CrMo |
Control mode |
PLC |
PLC |
Display of position and displacement |
LCD |
LCD |
Side roller moving direction |
30° |
25° |
Bottom roller lifting speed |
About80mm/min |
About80mm/min |
Bottom roller stroke |
60mm |
60mm |
Side roller lifting speed |
About100mm/min |
About80mm/min |
Top roller capacity |
230tons |
230tons |
Bottom roller capacity |
160tons |
160tons |
Side roller capacity |
130tons |
130tons |
Main drive motor |
18.5KW |
22KW |
Hydraulic system working pressure |
19.5Mpa(MAX) |
19.5Mpa(MAX) |
Price(fob shanghai) |
CNY490,000 |
CNY420,000 |
