Product Specifications
| Prod Model: |
cx |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Exported: |
More 80 Countries |
| Price: |
Competitive |
| Maintenance: |
Less and Easy |
| Technology: |
Advanced |
| Experience: |
More 20 Years |
| Sensor: |
Tube/Flange |
| Type: |
Volume Type Flow Meter |
| Accuracy: |
?à0.2-0.5% |
| Size: |
DN50-100 |
| Measuring Media: |
Liquid, Gas, Steam |
Product Description

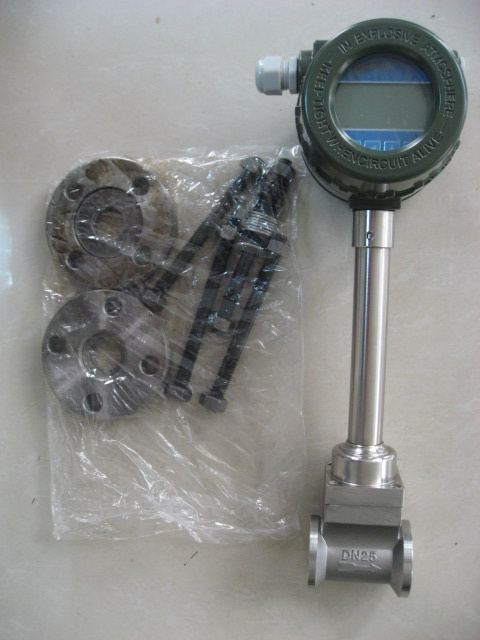

Piezoelectric / capacitance type vortex flow meter
Working principle
To install a vortex generator(bluff body)in the fluid, which can produces regular vortex at both
Sides of the vortex generator altematively. Such vortex is called Karman Vortex. Vortex trains are
Asymmetrically arranged at the downstream of the vortex geberator. Suppose the generating
Frequency of the vortex is f, the average speed of the incoming flow of the tested medium is V, the
Head-on width of the vortex generator is d, and the diameter of the flowmeter is D, and base on the
Principles of Karman Vortex, the following relations will be obtained:
Main technical
Nominal diameter(mm):
25, 40, 50, 65, 80, 100, 125, 150, 200, 250, 300, (300~1000
Insert type)
Nominal pressure (MPa):
DN25-DN200 4.0(>4.0 Supply agreement), DN250-DN300 1.6(>1.6
Note: (300) to (1000) diameter for insertion type
Meter diameter
(mm) | Liquid | Gas |
Measuring range
(m3/h) | Output frequency
range(Hz) | Measuring range
(m3/h) | Output frequency
range(Hz) |
| 25 | 1.2-16 | 25-336 | 8.8-55 | 190-1140 |
| 40 | 2-40 | 10-200 | 27-205 | 140-1040 |
| 50 | 3-60 | 8-160 | 35-380 | 94-1020 |
| 80 | 6.5-130 | 4.1-82 | 86-1100 | 55-690 |
| 100 | 15-220 | 4.7-69 | 133-1700 | 42-536 |
| 150 | 30-450 | 2.8-43 | 347-4000 | 33-380 |
| 200 | 45-800 | 2-31 | 560-8000 | 22-315 |
| 250 | 65-1250 | 1.5-25 | 890 -11000 | 18-221 |
| 300 | 95-2000 | 1.2-24 | 1360-18000 | 16-213 |
| (300) | 100-1500 | 5.5-87 | 1560-15600 | 85-880 |
| (400) | 180-3000 | 5.6-87 | 2750-27000 | 85-880 |
| (500) | 300-4500 | 5.6-88 | 4300-43000 | 85-880 |
| (600) | 450-6500 | 5.7-89 | 6100-61000 | 85-880 |
| (800) | 750-10000 | 5.7-88 | 11000-110000 | 85-880 |
| (1000) | 1200-1700 | 5.8-88 | 17000-170000 | 85-880 |
| >(1000) | Agreement |
| Agreement |
|
