| Supplier: | Changzhou Huasida Electronics Co., Ltd. |
|---|---|
| Price: | US $ 4.10-4.20/Piece |
| Min Order: | 100/Piece |
| Quantity:: | |
| Trade Terms: | FOB,CIF,EXW |
|
|
| Prod Model: | HST30S150 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: | Black |
| Output Voltage Range: | 3-24V |
| Output Current Range: | 10mA -800mA |
| Input Frequence: | 50/60Hz |
| Protection: | Over Voltage Over Current |
| Output Cable: | Optional |
| Output Type: | DC |
| Connection: | Plug In |
| Usage: | Phone |

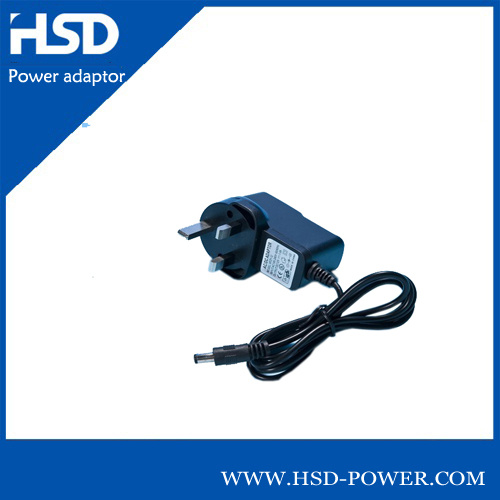

| Plug-in Mains Connector | Wall Type 30W 15V Switching Adapter with UK Plug BS standard US,UK,CE,SAA,PSE etc. |
| Input Condition | AC100-240V 50/60Hz |
| Input Rated Voltage | 100Vac-240Vac |
| Input Voltage Range | 90Vac-264Vac |
| Input Rated Frequency | 50/60Hz |
| Input Frquency Range | 47Hz-63Hz |
| Input Current | 0.35A Max |
| Input Inrush Current | 30A Max |
| Rated Output Voltage&Current | 3.0V-30V&0.1A-2.0A |
| Output Power | 36W Maximum |
| Output Line Regulation | ±5% |
| Output Load Regulation | ±5% |
| Output Over Shoot | 10% Maximum |
| Output Ripple and Noise | 100mVp-p Max |
| Output Rising Time | 20ms Maximum at 115Vac |
| Output Hold up Time | 10ms Minimum at 230Vac |
| No Load Power Consumption | 0.3w Max at 115Vac/230Vac |
| Efficiency | Conform to Level V(CEC/ERP/MEPS) |
| Protection | OCP,OVP,OTP,OLP |
| Dielectric Withstand Voltage | 3KV 5mA 60S |
| Leakage Current | 0.25mA at 230Vac |
| DC Plug Specification | According to the customer's requirements |
| Operating Temperature Range | -20-45 |
| Storage Temperature Range | -40-85 |
