Changzhou Huasida Electronics Co., Ltd. >> Wallmount 24W 12V DC Adapter with PSE Standard Plug

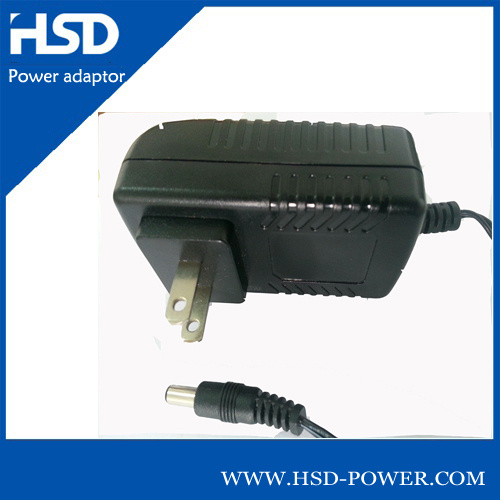

Wallmount 24W 12V DC Adapter with PSE Standard Plug

Name: Wallmount 24W 12V DC Adapter with PSE Standard Plug
Brand: China-Manufacturer-Directory.com
SKU: 721303065
Availability: InStock
Rating: 4.5 (61 reviews)

Supplier:	Changzhou Huasida Electronics Co., Ltd.
Price:	US $ 3.40-3.60/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,CIF,EXW

Product Specifications

Prod Model:	HST24S120
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Color:	Black
Output Voltage Range:	3-24V
Output Current Range:	10mA -800mA
Input Frequence:	50/60Hz
Protection:	Over Voltage Over Current
Output Cable:	Optional
Output Type:	DC
Connection:	Plug In
Usage:	Phone

Product Description

Wallmount 24W 12V DC Adapter with PSE standard Plug 1. Technical Specification: Input Voltage : 90VAC-264VAC Input Frequency Range : 47-63Hz Input Current :0.3A/110VAC Inrush Current :30A /230VAC Output MAX power: 24w Output voltage: 12.0v Output current: 0-1000mA Line Regulation : ±5% Load Regulation : ±5% Ripple&Noise : <50mVp-p No load power Dissipation:<0.3W Efficiency:>70% 2. Features: Protections:Short circuit/ Over load/Over voltage/ Over temperature MTBF:50000 Hours Operationg Temperature:-20C~+45C Storage Temperature:-40C~+85C Safey& EMI:UL60950,EN60950/EN55022,EN61000 Warranty:2 Years Dimension : 60*40*26mm(L*W*H) 3. Certificates Obtained: CB Report (Global): IEC60950-1/IEC60065 CCC Certificate (China): GB4943-2001/GB8898 GS Certificate(Europe): EN60950-1/EN60065 CE Certificate(Europe): EN55022, 55024/55013,55020 BS Certificate(Britain): BS EN60950-1/BS EN60065 ETL Certificate(North America): UL60950-1/UL60065 SAA Certificate(Australia): AS/NZS 60950.1 AS/NZS 60065 KC Certificate(Korea): K60950-1/K60065 PSE Certificate(Japan): J60950-1/J60065 4. Application : Consumer Electronics Products, Toys, DVD/ MP3/MP4, IP camera, Antenna Communications products, Wireless AP, Wireless Router, IP phones, Security Systems, Set-top boxes, Health care electronics, LED lighting products and so on. Universal power adapter Welcome to our company Our certification All of our products outputs accept customized if you have other requirements ,pls kindly tell us !!!

Plug-in Mains Connector	US,UK,CE,SAA,PSE etc.
Input Condition	AC100-240V 50/60Hz
Input Rated Voltage	100Vac-240Vac
Input Voltage Range	90Vac-264Vac
Input Rated Frequency	50/60Hz
Input Frquency Range	47Hz-63Hz
Input Current	0.35A Max
Input Inrush Current	30A Max
Rated Output Voltage&Current	3.0V-30V&0.1A-2.0A
Output Power	36W Maximum
Output Line Regulation	±5%
Output Load Regulation	±5%
Output Over Shoot	10% Maximum
Output Ripple and Noise	100mVp-p Max
Output Rising Time	20ms Maximum at 115Vac
Output Hold up Time	10ms Minimum at 230Vac
No Load Power Consumption	0.3w Max at 115Vac/230Vac
Efficiency	Conform to Level V(CEC/ERP/MEPS)
Protection	OCP,OVP,OTP,OLP
Dielectric Withstand Voltage	3KV 5mA 60S
Leakage Current	0.25mA at 230Vac
DC Plug Specification	According to the customer's requirements
Operating Temperature Range	-20-45
Storage Temperature Range	-40-85
