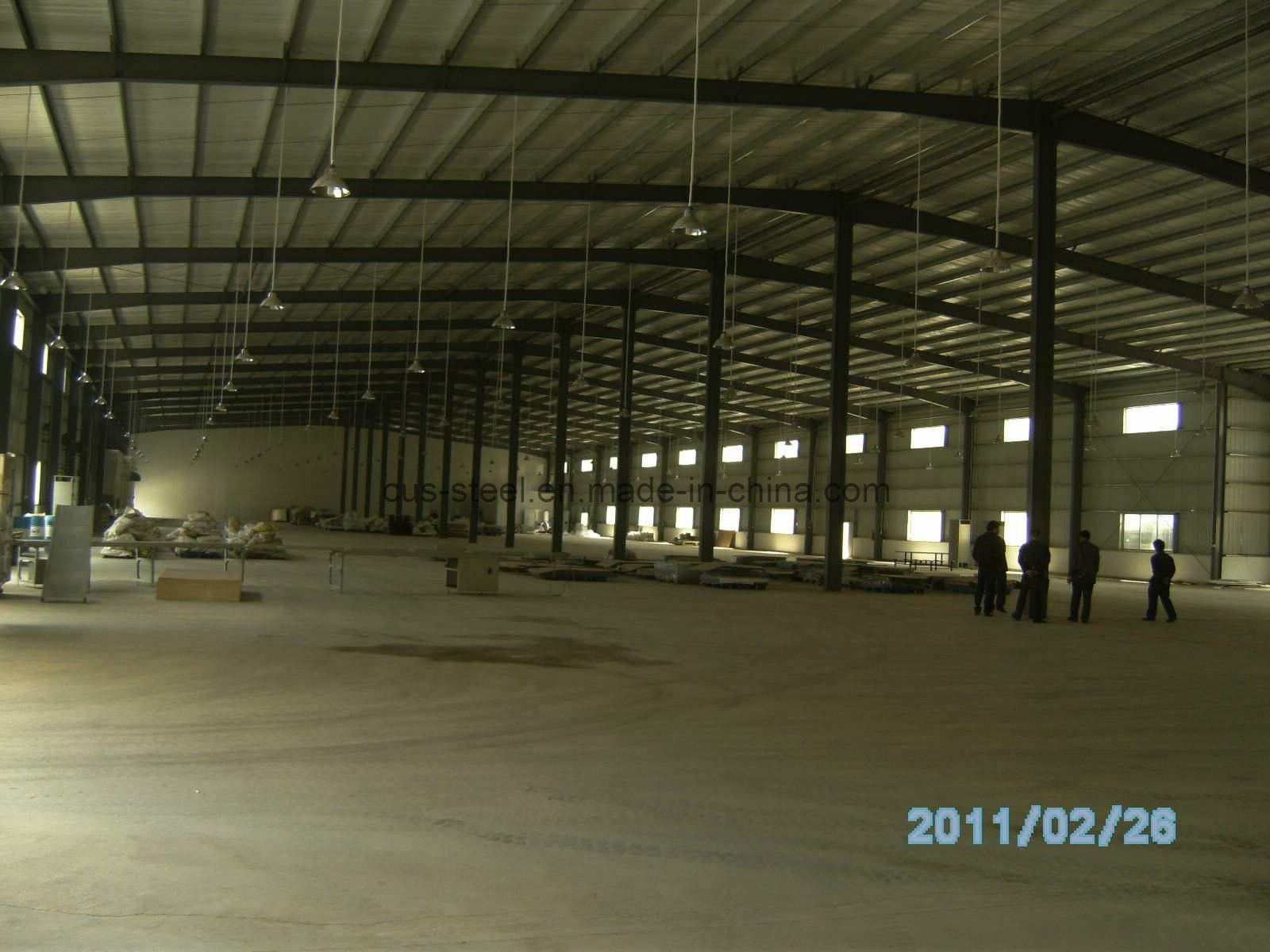

Warehouse/Factory Steel Structure/Fabricated Steel Structure

Product Specifications

Prod Model:	CUS-STEEL(SS4-J)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	According to Your Need
Steel Grades:	Q235,Q345
Panel Thickness:	According to Your Need
Delivery:	35-45 Working Days After Received Deposit
MOQ:	MOQ Is 10m2
C Or Z Purlin:	C120~C320, Z100~Z200
Sgrades:	Q235,Q345
Type:	Light Section Steel
Standard:	AISI
Trademark:	Special Purpose Steel
Forming:	Cold Drawn Steel
Connection Form:	Bolt Connection
Member:	Steeltruss
Type Of Steel For Building Structure:	High-Strength Steel
Carbon Structural Steel:	Q195
Residential Wall Structure:	Wall Stud
Application:	Steel Structure Bridge

Product Description

FIRST PART, OUR COMMENTS AND IDEAS:


1)We can supply all kinds of steel structures, steel bulding, metal building, modular house,
Steel frame for warehouse, workshop, garage etc, steel beams, other riveting and welding parts.


2)We can also make and develop new parts according to customers' drawings and detailed dimensions.


3)Specifications

A)Size: MOQ is 10m2, width X length X eave height, roof slope, you should inform us the above requests.

B)Type: Single slope, double slope, muti slope; Single span, double-span, Multi-span, single floor, double floors!

C) Base: Cement and steel foundation bolts

D) Column and beam: Material Q345(S355JR)or Q235(S235JR) steel, all bolts connection! Straight cross-section or Variable Cross-section!

E) Bracing: X or V or other type bracing made from angle, round pipe, etc

F) C or z purlin: Size from C120~C320, Z100~Z200

G) Roof and wall panel: Single colorful corrugated steel sheet0.326~0.8mm thick, YX28-205-820(820mm wide),
Sandwich panel with EPS, ROCK WOOL, PU etc insulation thickness around 50mm~150mm, width 950mm or 960mm!

H)Accessories: Semi-transparent skylight belts, Ventilators, down pipe, outer gutter, etc

I)Surface: Paint or hot dip galvanize!

J) Packing: Main steel frame without packing load in 40'OT, roof and wall panel load in 40'HQ!

K)Design Parameters If you need we design for you, pls supply us the following parameter together with detail size:
1)Live load on roof(KN/M2)
2)Wind speed(KM/H)
3)Snow load (KG/M2) if have
4)Earthquake load if have
5)Crane (if have), Crane span, crane lift height, max lift capacity, max wheel pressure


SECOND PART, OUR ADVANTAGES:

1st point, Our company could design, fabricate, suppl, install steel structure with 70meters-90meters clear span, so that the owner could use space of 70meters-90meters clear span, which meet the needs of owner's introducing crane, heavy industry equipments and other technique procedure, as a result we provide you multiple choices for your future extention.

2nd point, We are also professional at fabricating, supplying steel structure tourism park-view complex buildings, Which includes tourism, recreation, food, shopping, leisure, holiday activities.

3rd point, we could fabricate, supply, export and install the following China Standard section structural steel:
W18X35 H450X160X8X12
W21X55 H530X210X10X14
W24X68 H600X230X12X16
W16X26 H400X140X8X10
W14X132 H380X380X18X26
W14X22 H350X140X6X10
W10X20 H260X150X6X10

4th point, We manufacture and supply many standards of structural steel components, such as ASTM A36 following structural section steel and other not mentioned structural section steel: W18X76, W16X77, W16X57, W14X48, W12X35, W12X26, W10X22, W10X19, W4X13, S4X9.5, MC10X22, MC2X18.7, L5X5X5/16, L4X4X3/8, L3 1/2X3 1/2X 1/4, L3X3X1/4, L2 1/2X2 1/2X1/4, L2X2X5/16, 25 THK. PLATE, 20 THK. PLATE, 16 THK. PLATE, 10 THK. PLATE.

Steel Grades	Q235,Q345
Panel Thickness	50mm, 70mm, or according to your requirement
Size	According to Your Need
Design	according to your requirment or the drawing
