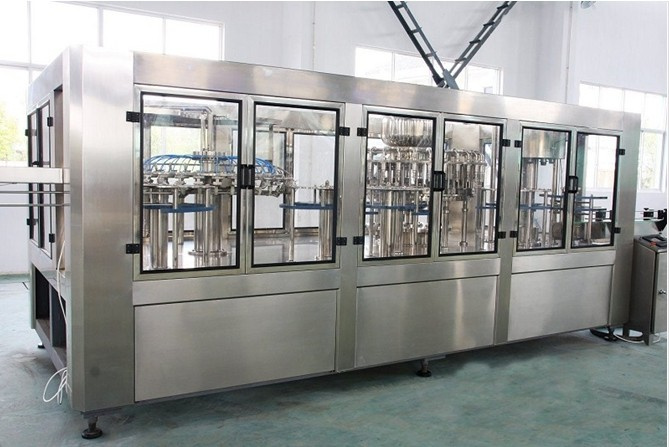

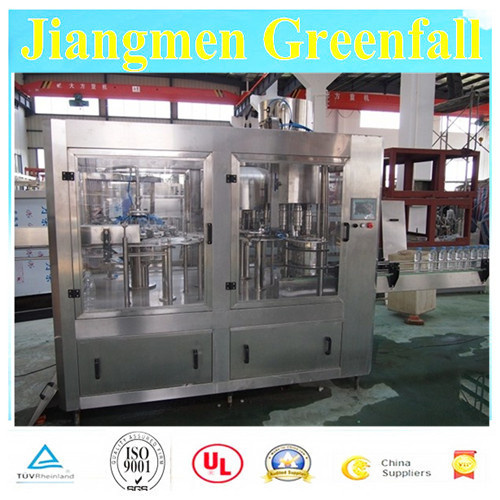

Washing Filling Capping 3 in 1 Machine (Meo-XG-18)

Product Specifications

Product Description

Jiangmen greenfall water treatment technology co, . Ltd has 18 yesr's producing water plant equipments experience mainly manufactures all kinds of RO water treatment equipment, small bottle water production line, 5 gallon water production line, fruit juice filling line, carbonated beverage production line and related apparatus etc.

Washing Filling Capping 3 in 1 Machinebottling line 2000-4000bph 3 in 1 pet bottled water production line

1) about water production line

1: Principle of the small bottle water production line

Please inform your requiement, we will send the proposal for you immediately.

Find the specificaion of XGF32-32-8 as followings:

1. Technical Parameter

Model: XGF32-32-8
Overall dimension(mm): 3280*2280*2300mm
Production capacity: 12000B/H(500ml)
Pressure of air source: 0.4~0.6Mpa
Water pressure of washing bottles: 0.2-0.25Mpa
Used water of washing bottles: 1 T/h(Max. It can be adjusted)
Filling mode: Atmospheric pressure filling
Main motor power: 5Kw
Total capacity of motor: 7Kw
Rating pressure: 380V50HzWeight: About 8T
The machine includes: 2M air conveying system, 3M conveying system for bottles out.

2. Features

1)The main frame made of steel, 304 stainless steel exterior layer, 304 stainless steel frame, and adjustable feet.
2)Conveying system adopts star wheel, smooth transmission, stainless steel chain.
3)Number of washing head is 32 PCS, 304 stainless steel chassis wash pipes are heat-resistant.
4)Number of filling valve is 32 PCS, and parts contacted with liquid are made of304L stainless steel. Inner surface is dealt with polishing. There is stainless steel returning tube, no dead space.
5)Number of capping head is 8 PCS, screw head using magnetic torque device to facilitate torque adjustment, the torque of capping head can be set in accordance with the actual production needs.
Company has passed ISO900: 2000 version quality system certification and all manufacture processes are conducted by the standard strictly.

All products adopt all-around computer aided design(CAD)

All auxiliary parts adopt international and domestic famous brand products

Before delivery time, all complete sets will test run for 3days continuously after quality inspection, they can be transferred to the customers
How to get your suitable machine or production line?

Find our products through reliable machinery Co., Ltd in google, baidu. Bing, alibaba. COM etc

Enquiry: Contact us by email, phone call, fax, instant messenger and let us know your enquiry.

Discussion: Specify the items you desire, confirm specification; OEM/ODM consultation.

Quotation: Prices offered and accepted.

Place order as per contract or discussion.

Perform invoice( sales contract ) in duplicate confirmed and kept by both sides.

Payment settled.

Order completed under our arrangement.

Goods shipped as per contracted term.

Goods arrive at local port or warehouse, depending on contracted term.

Support & re-ordering
