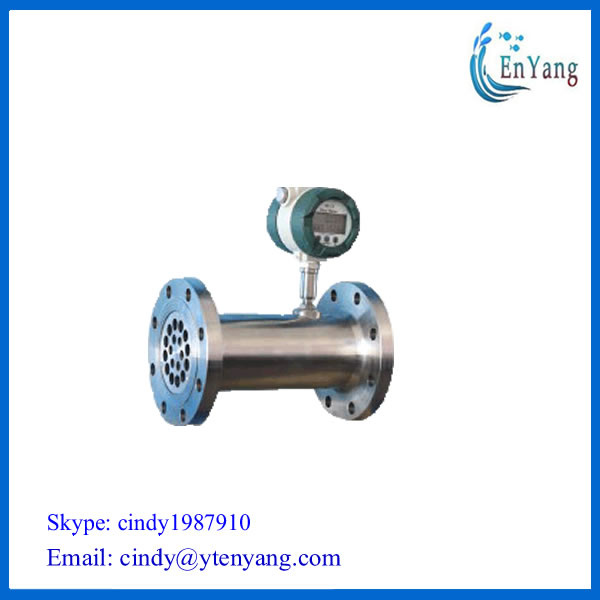

Water and Oil Turbine Flow Meter with 4-20mA Output

Water and Oil Turbine Flow Meter with 4-20mA Output
Supplier: Yantai Enyang International Trading Co., Ltd
Price: US $ 260/Piece
Min Order: 1/Piece
Quantity::
Trade Terms: FOB,CIF
contact supplier

Product Specifications

Prod Model: LWGY
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium: No Impurities, Low Viscosity, No Strong Corrosive
Installation Type: Flange, Thread, Clamp and Insertion Type
Temperature: -20-80 80-150
Pressure: 6.3MPa
Output Signal: Pulse Output or 4-20mA Output
Display: with LCD Display
Communication Interface: RS485 Protocol or Hart Protocol
Power Supply: 24VDC or Battery
Communication Protocol: Modbus
Material: 304 Stainless Steel
Accuracy: ?à0.2-0.5%
Main Application: Corrosive Liquid/Gas
Sensor: Tube/Flange
Type: Turbine Flow Meter
Measuring Media: Liquid
Size: Dn4-Dn1100
Measuring Principle: Turbine

Product Description


Summary

  LWGY series turbine flow meter is a new generation of turbine flow meter learned from advanced technology
at home and abroad and went by optimal design with features of simple structure,lightweight,high accuracy,
good repeatability,responsive,convenient installation and maintain etc.


Features

1.High accuracy,generally ±1%R,±0.5%R,higher accuracy ±0.5%R available

2.Good repeatability, short-term repeatability 0.05%~0.2%,available to get high
accuracy for regular and  online calibration,priority selection in trade settlement.

3.Pulse frequency signal output,available for overall calculation and computer
connection without zero drift,strong anti-interference.

4.Compact and light structure,convenient maintain,high flow capacity.

5.Insertion type,used for large pipeline size measurement,low pressure loss,
cheap price,available to take out without flow cutoff.

Parameters


Name

Explanation

Instrument name

     Liquid turbine flow meter

Medium

     No impurities, low viscosity, no strong corrosive liquid

Installation type

     Flange connection type(DN20-DN200)

     Thread connection type (DN4-DN50)

     Clamp connection type (DN4-DN100)

     Insertion type        (DN150-DN1100)

Temperature

    -20-80ºC    80-150ºC

Pressure

     less than 6.3MPa


Output signal

    Pulse output

    4-20mA output


Display

   With LCD display

   Without LCD display

Communication interface

   RS485 protocol

   HART protocol

Power supply

   24VDC or battery

Communication protocol

   Modbus

Accuracy

   0.2%, 0.5%,1.0%

Material

   304 Stainless steel


Flow Range


Diameter
(mm)

Normal flow range(m³/h)

Extend flow range(m³/h)

Common proof
pressure
                 (MPa)

DN4

0.04-0.25

0.04-0.4

6.3

DN6

0.1-0.6

0.06-0.6

6.3

DN10

0.2-1.2

0.15-1.5

6.3

DN15

0.6-6

0.4-8

6.3  2.5(flange)

DN20

0.8-8

0.45-9

6.3  2.5(flange)

DN25

1-10

0.5-10

6.3  2.5(flange)

DN32

1.5-15

0.8-15

6.3  2.5(flange)

DN40

2-20

1-20

6.3  2.5(flange)

DN50

4-40

2-40

2.5

DN65

7-70

4-70

2.5

DN80

10-100

5-100

2.5

DN100

20-200

10-200

1.6

DN125

25-250

13-250

1.6

DN150

30-300

15-300

1.6

DN200

80-800

40-800

1.6
