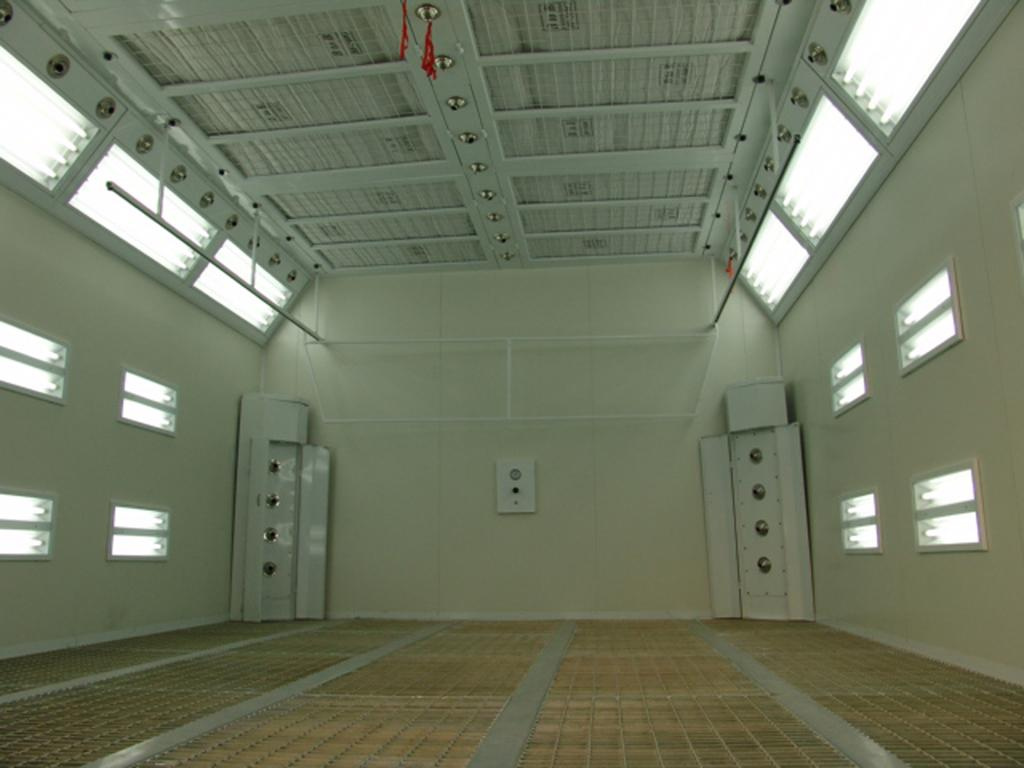

Water Based Paint/Infrared Heating Drying Booth

Name: Water Based Paint/Infrared Heating Drying Booth
Brand: china-manufacturer-directory.com
SKU: 689735972
Availability: InStock
Rating: 4.7 (54 reviews)

Supplier:	Qingdao Hua Yushun Commercial Co., Ltd.
Price:	Negotiable/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	AUG-WD 1001
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Outside Dimension:	7000 * 5400 * 3250(LWH)
Inside Dimension:	6900 * 3900 * 2600mm
Front Door(Mm):	28002500(WH)
Service Door (Mm):	1800650(WH)
Total Power:	42kw
Wall Panel:	50mm Rock-Wool Panel, 0.6 Steel
Basement:	300mm Depth with Grids
Ramp:	Three 2000*900mm Ramps
Heating Burner:	3*9 Units High Energy Infra-Red Lamp
Water Based Paint Drying System:	60 Ceiling Nozzles with 3 Centrifugal Fan
Airflow Direction:	Fully Undershot-type
Heating Mode:	Electric
Paint Mist Treatment:	Dry-type
Certification:	ISO
Condition:	New

Product Description

Detailed Specifications

Outside Dimension (mm)	7000 * 5400 * 3250(LWH)		Inside Dimension(mm)	6900 * 3900 * 2600(LWH)
Front Door(mm)	28002500(WH)		Service door (mm)	1800650(WH)
Total Power	42KW
Cabin system	Wall panel	50mm rock-wool panel, double face steel sheet thickness: 0.6mm
	Ceiling panel	Galvanized steel sheet.
	Basement	300mm depth, patented circumferential diamond plate design, middle with grids.
	Ramp	three 2000*900mm ramps
	Glass	6mm safety tempered glass
	Windows	Square glass Windows
Air Make-up System	Air Inlet fan system	2 * 4 kw double-intake belt centrifugal fan, air capacity for each fan: 14500m3/h.
	Exhausted fan system	1 * 5.5 kw double-intake belt centrifugal fan, air capacity 18000m3/h.
	Air Flowing speed	0.45 m/s in empty booth, 0.35 m/s when painting.
	Exhausted ducting	5meters air duct, one flop damper, one weather hood, one anti-bird mesh
	Water based paint drying system	60 units ceiling nozzles with 3 sets of centrifugal fans for drying the Water Based Paint.
Purification System	Pre-filter	G3 grade, Air Inlet filter
	Ceiling filter	EU5 / F5
	Floor filter	green fiber glass filter / G3 grade
	Exhausted fan Filters	M green fiber glass filter.
	Heating	With 9 units high energy short wave infra-red lamps for heating. 3 pcs/ unit, each lamp 1 KW, total power of infra-red lamp:27KW
	Spray to baking switch	One manual damper
	Max heating temperature Heating time	80 degree centigrade 4-6min(20-60 degree centigrade)
Lighting System	Ceiling lights	8 Units, each 4 x 36W Philips lamps, Total 1152 W
	Illumination	960LUX
Controlling system	Switched control panel	Spraying & baking switch, lighting switch, emergency stop, breakdown alarm, failure alarm

Products Description

This automatic paint spraying/baking booth is used for air purification during auto paint coating operation and drying operation after painting spray. Paint spraying and drying are performed in the same booth. This paint spraying/baking booth is typical of paint spraying and baking functions, provided with automatic thermostat paint spraying, ventilation, air purification, paint mist treatment, and winter hot-air supply functions during paint spraying, and automatic heating, thermostat timing, and timed shutdown function during paint baking. The equipment is reliable in running, simple for operation, and easy for maintenance.

Our Modes on Automechanika

Captain Advantages

*The same price higher quality, the same quality lower price! ! !
*2 years quality warranty! ! !
*Fast and stable supply capability! ! !
*Personalized design to meet customer various needs! ! !

Competitive Price and High Quality Spraying Booth with Perfect Service Is From Here.

Qingdao Hua Yushun Commercial Co., Ltd belongs to Captain Auto Equipment Group, which is responsible for exporting for all the products of Captain Group. And Captain is a professional designer and manufacturer of mechanical equipment, which is developed from SK spray booth built in 1992. Captain developed day by day, and established Shandong painting production base and sandwich panel production base. Now it can produce painting equipments more than 3000 sets, about 2, 000, 000 square meters different kinds of sandwich panels, and various kinds of steel ducting 800, 000 meters one year. Also Captain established Zhucheng sandblasting production base in 2002, and injection pieces production base in 2005. And in 2006, Captain established Qingdao Commercial Center, which is operated by Qingdao Hua Yushun Commercial Co., Ltd who is responsible for all the global importing and exporting business. Formed a good industry pattern that is the sells presses to production, and production streghten sales.

· Now the products of Captain group refer to auto repair quipments, furniture spray booth, preparation bay, shot blasting machine, antiseptic treatment production line, injection pieces, all kinds of EPS panel, rock wool panel, glass fiber panel and decorative panel outside, commercial kitchen equipment, etc.

· After all these years, high-quality products and good service won wide reputation for our group from our buyers, and our products are exported to Germany, the United States, Sweden, the Netherlands, Denmark, Romania, South Africa, Australia, Canada, Italy, New Zealand, Nigeria, Zambia, Thailand, Chile and other countries and regions.

Face to the ever-changing market, Captain looks providing more secure, reliable, energy conservation and environmental protection products as it's responsibility, listens to the buyer's comments carefully, improve the quality of products and service, Continue to increase the research and development ability of enterprise innovation and equipment; We will paste with the future, and slipped through the waves.
