Product Specifications
| Prod Model: |
IC-1HP/2HP/3HP/4HP/5HP |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Industries Chiller: |
Water Cooling System |
| Certification: |
CCC |
| Condition: |
New |
| Application Fields: |
Equipment and Machine |
| Type: |
Water-Cooled and Air-Cooled |
Product Description
Main Application and Characteristic

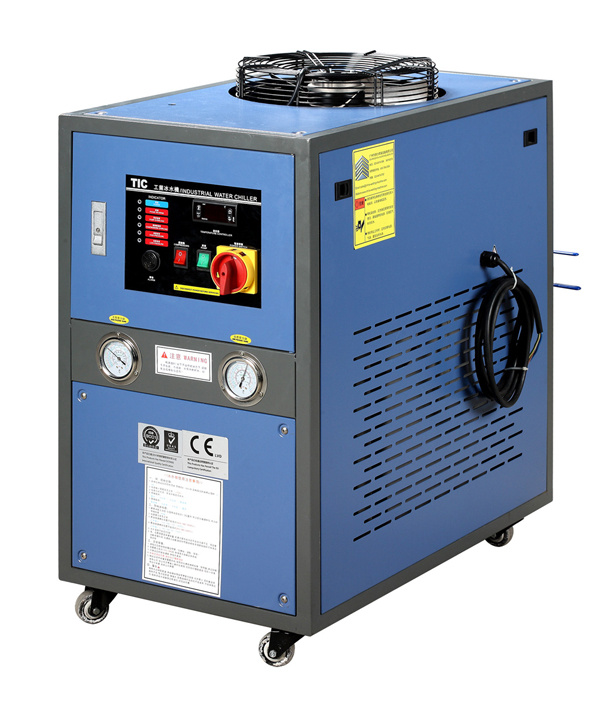

1. The Industrial Chiller is mainly used to provide cooling water for high-end industrial equipment, at the same time, also widely used in mechanical processing and manufacturing, plastics and rubber, electrical and electronic, electroplating, chemical medicine, laser, ultrasonic cleaning, printing and other industrial production.
2. According to the different way of heat dissipation, it is named as Water Cooling Type and Air Cooling Type; According to the different structure of compressor, it is named as Whirl Type, Piston Type, Screw Type, Centrifugal Type, Lithium Bromide Absorption Type; According to the different outlet temperature, it is named as High-temperature Chiller, Middle-temperature Chiller, Lower-temperature Chiller, Ultra-low Temperature Chiller; According to the different overall structure of condensing unit and evaporator unit, it is named as Integrated Type and Separated Type, and so on.
3. All of our cold water equipment have already passed the European CE certification.
4. The device is equipped with European or Japanese Brand compressor, high efficiency shell & tube type condenser, stainless steel water tanks, microcomputer control, high precision temperature control system, over current and over voltage protection system, and some other component and function, super cooling, high efficiency, low noise, simple operation. Also there are single model, double model and quadruple model combination for selecting freely.
|
Model |
IC-1HP |
IC-2HP |
IC-3HP |
IC-5HP |
IC-6HP |
IC-8HP |
IC-10HP |
IC-12HP |
IC-15HP |
IC-20HP |
IC-24HP |
IC-30HP |
IC-40HP |
|
Compressor Rated Power |
1HP |
2HP |
3HP |
5HP |
6HP |
4×2HP |
5×2HP |
12HP |
5×3HP |
10×2HP |
12×2HP |
10×3HP |
10×4HP |
|
Refrigerating Capacity |
2.4K Kcal/H |
4.6K
Kcal/H |
6.8K
Kcal/H |
11K
Kcal/H |
13K
Kcal/H |
20.5K
Kcal/H |
26.3K
Kcal/H |
39.5K
Kcal/H |
38.7K
Kcal/H |
52.5K
Kcal/H |
59.4K
Kcal/H |
79.2K
Kcal/H |
105K
Kcal/H |
|
Refrigerant |
Type |
R22 |
|
Weight |
1.7KG |
1.9KG |
2.0KG |
2.0KG |
2.5KG |
4.0KG |
5.0KG |
5.0KG |
7.5KG |
11KG |
11KG |
12KG |
18KG |
|
Condenser Model |
Water Cooling Model of Condenser or Air Cooling Model of Condenser (Optional) |
|
Cooling Water Volume |
0.5M 3 /H |
0.9M 3 /H |
1.4M 3 /H |
2.3M 3 /H |
2.6M 3 /H |
4.0M 3 /H |
4.4M 3 /H |
5.1M 3 /H |
7.1M 3 /H |
8.9M 3 /H |
10.1M 3 /H |
13.7M 3 /H |
17.8M 3 /H |
|
Water Tank Capacity |
20L |
20L |
50L |
70L |
70L |
125L |
125L |
125L |
200L |
350L |
350L |
420L |
420L |
|
Water Pump |
0.5HP |
0.5HP |
0.5HP |
0.5HP |
1HP |
1HP |
1HP |
1HP |
2HP |
2HP |
3HP |
3HP |
5HP |
|
Safety Protection System |
Compressor overheat protection,over current protection,high and low voltage protection,overload protection,over temperature protection,open phase protection, antifreezing protection etc. |
