| Price: | US $ 600-1000/Set |
|---|---|
| Trade Terms: | FOB,EXW,CIF |
| Min Order: | 1/Set |
| Pay Type: | L/C,T/T,Western Union |

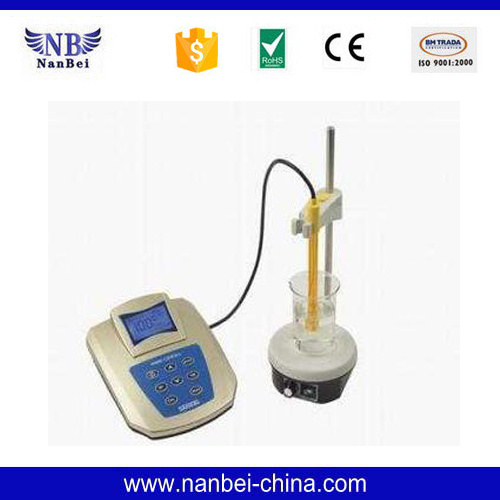

| Benchtop meter for measurement of water hardness (the total concentration of calcium ion and magnesium ion). |
| Electrode adopts model 601-F water hardness combination electrode with patent structure. It consists of measurement electrode, reference electrode and temperature probe. Replaceable measuring head, steady potential, fast response, easy to use. |
| Meter adopts intelligent chip design, automatic calibration, automatic temperature compensation, time display, data storage RS232 output, etc. |
| Ability to switch among eight units: mmol/L, mg/L (CaCO3), mg/L (CaO), mmol/L (Boiler) and mg/L (Ca). Three options of three units: ºfH(France),ºdH (Germany)and ºeH(UK) from WH-Link communication software. |
| Equipped with B1,B2 and B3 calibration solution. |
| Equipped with WH-Link communication software, connect testing data of meter to computer. |
Water Hardness | Measuring range Resolution Accuracy Temp. compensation Calibration Solution Calibration Mode | (0 ~ 10)mmol/L; (0 ~ 401)mg/L(Ca); (0 ~ 1000)mg/L(CaCO3); (0 ~ 100)ºfH(France Degree); (0 ~ 561)mg/L(CaO); (0 ~ 56)ºdH(German Degree); (0 ~ 20)mmol/L(Boiler); (0 ~ 70)ºeH (England Degree). 0.01 and 0.1 water hardness units ±5% FS (5 ~ 50)ºC((automatic)) B1 Calibration Solution - 2.00×10-2 mmol/L B2 Calibration Solution - 2.00×10-1 mmol/L B3 Calibration Solution - 2.00 mmol/L (B3Calibration Solution also can be used for the soaking solution of electrode) (a)B1/B2 Calibration-using B1 and B2 Calibration Solution,suitable for < 2.00×10-2 mmol/L low concentration water quality,for example, boiler water. (b)Calibration-using B2 and B3 Calibration Solution,suitable forgeneral water quality. |
Temperature | Measuring range Resolution Accuracy | 0 ~ 60ºC 0.1ºC ±0.5ºC |
Other Technical Parameter | Data storage Content Storage Communication Connector Power Dimension and weight Quality and safe certificate | 128 groups serial number of measuring value, measuring value, units, temperature, ATC or MTC, date, time and calibration way. RS232 DC9V (160×190×70)mm/750g IISO9001:2000 and CE |
working conditions | Ambient temperature ambient humidity | (5~35)ºC ≤85%RH |
Accessory Category | Description | Specification |
Water hardness electrode | 601-F water hardness electrode | Suited for measurement of total concentration of calcium ion and magnesium ion, match YD200 meter, BNC+RCA connector |
Water hardness calibration solution | Water hardness calibration solution B1 | 2.00×10-2 mmol/L,500mL/250mL/100mL(bottle) |
Water hardness calibration solution B2 | 2.00×10-1 mmol/L,500mL/250mL/100mL(bottle) | |
Water hardness calibration solution B3 | 2.00 mmol/L,500mL/250mL/100mL(bottle) | |
Accessories | Plasic test cup | Specification:20mL |
Test cup base | Place test cup on the base |
| Prod Model: | ND200 |
|---|---|
| Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: | Water Hardness Meter |
| Electrode: | 601-F |
| Interface: | RS232 |
| Parameter: | Mmol/L, Mg/L (CaCO3), Mg/L (Cao), Mmol/L (Boiler) |
| Software: | Wh-Link Communication Software |
| Calibration: | B1\B2 and B3 Calibration Solution |
| Standard: | ISO |
| Type: | Water Hardness Meter |
| Measuring Range: | Mmol/L |
| Application: | Water |
| Rated Voltage: | DC9V |
