Product Specifications
| Prod Model: |
water meter |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Digita Water Meter: |
Cold Water Meter |
| Install: |
Horizontal |
| Nominal Diameter: |
15-50mm |
| Principle: |
Speed of Water Meter |
| Level Measurement: |
A |
| Work Environment: |
Dry Water Meter |
| Medium Pressure: |
General Water Meter |
| Application: |
Industrial |
| Counter Instructions: |
Digital |
| Medium Temperature: |
Cold Water |
Product Description

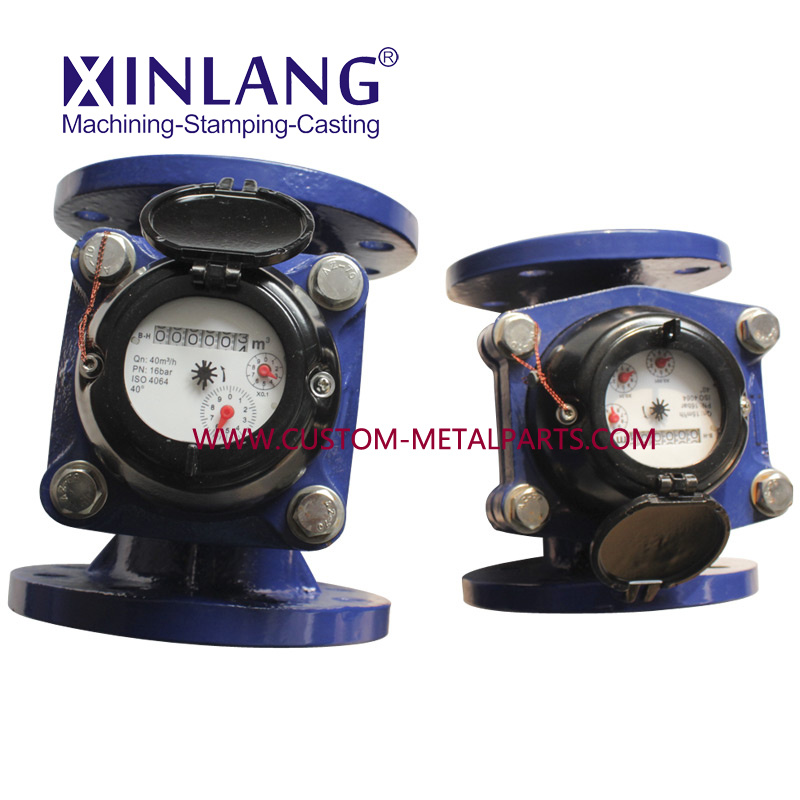

Irrigation Dry Type Water Meter,CE-approval,TURBINE water meter with magnetic transmission, super dry type register for Irrigation and Agriculture application with sizes from Dn30 to Dn300 designed by xinlag and meets to the requirements of Directive 2004/22/EC on measuring instruments and of European Standard EN14154 or ISO4064 Standard
Characteristics:
All the materials in contact with water, consciously selected by the known resistance to corrosion;
Iron body with inside and outside epoxy coating for protecting the corrosion;
The ROTATING indicator register for the most comfortable reading position;
The copper can super dry register with IP68 protection;
The interchangeable, removable measuring mechanism can be easy removed from the body for checking, maintaining and replacing, no needs to dismantle the body form the pipe;
Paddle wheel design resists blockage and damage to meter from solids in water;
Magnetic transmission, Low pressure loss;
Suitable for irrigation, agriculture and waste water application;
|
Size |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
Qmax |
m 3 /h |
70 |
100 |
150 |
250 |
350 |
500 |
900 |
1200 |
1600 |
|
Qn |
m 3 /h |
35 |
50 |
75 |
125 |
175 |
250 |
450 |
600 |
800 |
|
Qt |
m 3 /h |
10.5 |
15 |
22.5 |
37.5 |
52.5 |
75 |
135 |
180 |
240 |
|
Qmin |
m 3 /h |
2.8 |
4 |
6 |
10 |
14 |
20 |
36 |
48 |
64 |
|
Max. Reading |
m 3 |
999999.999 |
9999999.99 |
|
Min. Reading |
m 3 |
0.001 |
0.01 |
|
Max. Pressure |
PN |
16 bar |
|
Max. Temperate |
& ordm; C |
T30 |
|
Size |
mm |
50 |
65 |
80 |
100 |
125 |
150 |
200 |
250 |
300 |
|
R=Q3/Q1 |
20 |
|
Q4 |
m 3 /h |
78.75 |
78.75 |
125 |
200 |
312.5 |
500 |
787.5 |
1250 |
2000 |
|
Q3 |
m 3 /h |
63 |
63 |
100 |
160 |
250 |
400 |
630 |
1000 |
1600 |
|
Q2 |
m 3 /h |
5.04 |
5.04 |
8 |
12.8 |
20 |
32 |
50.4 |
80 |
128 |
|
Q1 |
m 3 /h |
3.15 |
3.15 |
5 |
8 |
12.5 |
20 |
31.5 |
50 |
80 |
|
Max. Reading |
m 3 |
999999.99 |
9999999.9 |
|
Min. Reading |
m 3 |
0.001 |
0.01 |
|
Pressure Loss |
Δ P |
25 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
10 |
|
Max. Pressure |
MAP |
MAP16 |
|
Max. Temperate |
& ordm; C |
T30 or T50 |
